WELL-X-TROL® redefined the industry in 1963 with the invention of the first pre-pressurized well tank. Today, Well-X-Trol Next Generation well tanks continue to deliver unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol remains the choice of professionals.

In 2010, Amtrol responded to installer requests for an even longer warranty with the introduction of the Next Generation Well-X-Trol. Redesigned with features and enhancements never seen before, Well-X-Trol now offers a 7 year warranty – an industry first. Better performance, expanded options and a longer warranty; it's the definition of what a well tank should be.

Amtrol Water Well Tank Typical Application

• Water System Pressurized Liquid Storage and Pump Cycle Protection
• Variable Speed Pumping Installations

Amtrol Well-X-Trol Pressure Tank Features

• Highest Working Pressure - 150 PSIG.
• Strongest Tank Design Featuring Deep Drawn Steel and Multi-Dome Construction.
• Thickest Diaphragm - Heavy Duty Butyl.
• Toughest Indoor/Outdoor Coating - Tuf Kote™ HG.
• Longest Warranty - 7 Years.
• Patented Turbulator® Water Circulation Device.
• Antimicrobial Liner to Neutralize Bacteria on Contact.
• Stainless Steel System Connection.
• Welded Air Stem to Help Eliminate Leaks.
• Patented DuraBase® Composite Stand Never Corrodes.
• Optional Pro-Access® Connection for Faster Installation.

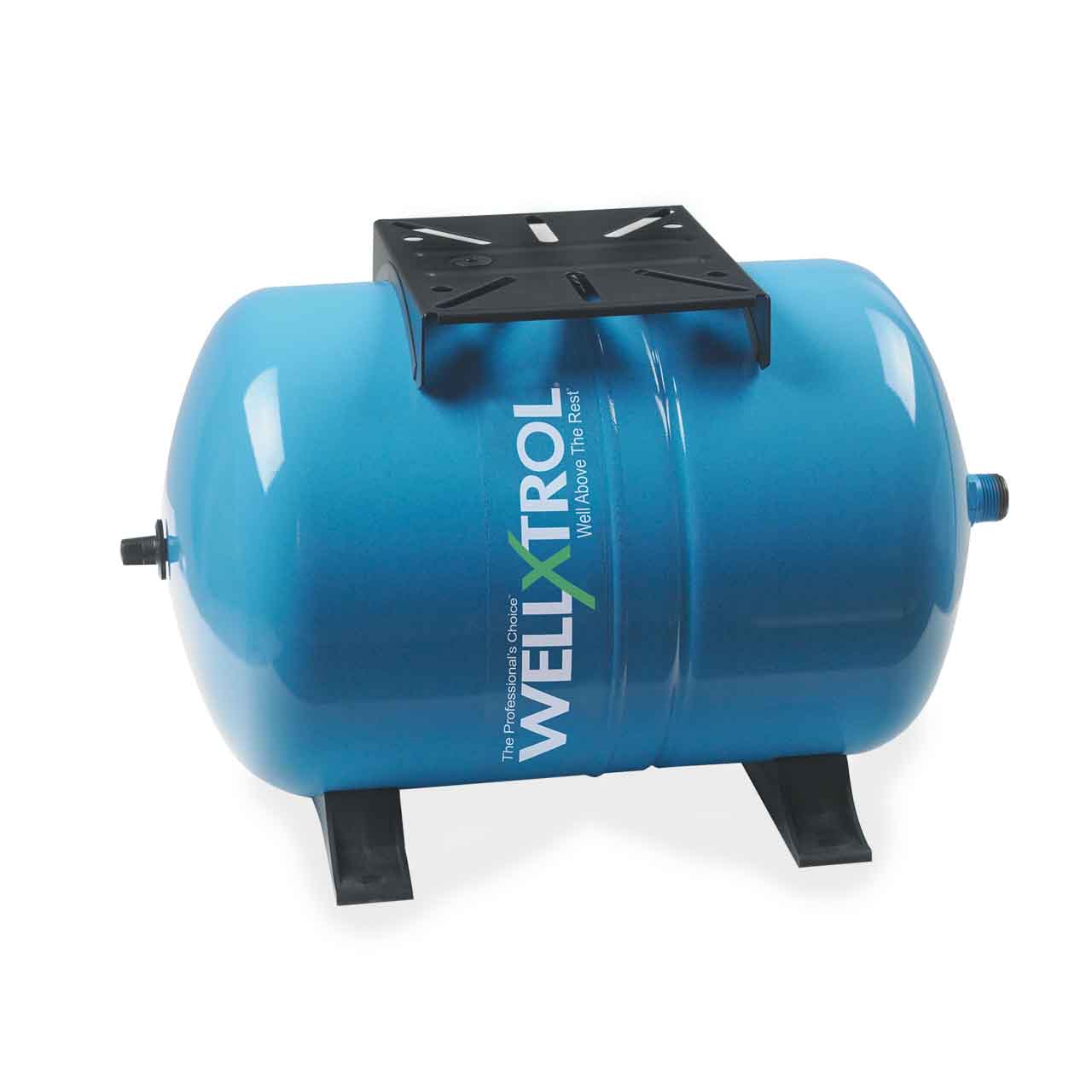

Amtrol Well-X-Trol Pressure Tank Specifications

• DIMENSIONS: 15" Diameter X 16" Height
• TOTAL VOLUME: 14 Gallons
• DRAWDOWN: 5.6 Gallons (20/40 pressure switch setting), 4.3 Gallons (30/50 pressure switch setting), 3.8 Gallons (40/60 pressure switch setting), 3.3 Gallons (50/70 pressure switch setting)
• TYPICAL TANK PRESSURE PRECHARGE: 38 PSIG
• CONNECTION: 1" NPTM
• PUMP STAND INCLUDED
• CONSTRUCTION
• Shell: High Strength Steel
• Diaphragm: Heavy Duty Butyl
• Liner: Antimicrobial
• System Connection: 304L Stainless Steel
• Stand: Steel or Patented Durabase®
• Finish: Tuf-Kote™ HG Blue, Tan or Gray
• Water Circulator: Patented Turbulator®
• Air Valve: Projection Welded
• Factory Precharge: 38 PSIG (2.6 bar)
• PERFORMANCE
• Max. Operating Temperature: 200º F (93º C)
• Max. Working Pressure: 150 PSIG (10.3 bar)
• Max. Relief Valve Setting: 125 PSIG (8.6 bar)
• Warranty: 7-Year Limited
• APPLICATION
• Controls Pump Cycling in Residential Water Systems
• Can be Used Indoors or Outdoors
• Optional, Patented DuraBase Stand is Rugged; Never Corrodes
