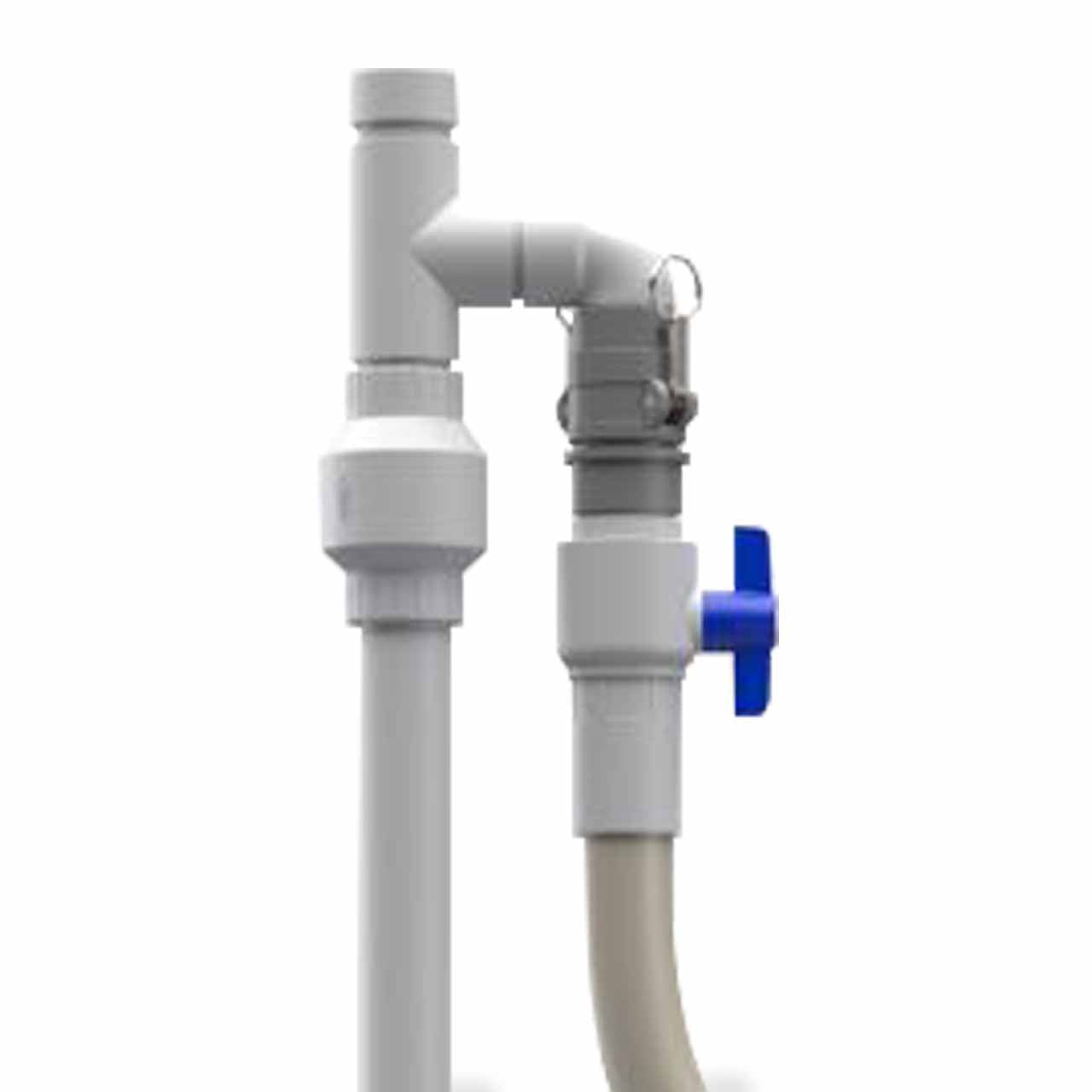

AFS PDA100BCQ Pump Discharge Assembly 1" Union Ball Valve Check Valve Quick Disconnect 75PSI Max
AFS PDA100BCQ Pump Discharge Assembly 1" Union Ball Valve Check Valve Quick Disconnect 75PSI Max
SKU : AFSPDA100BCQ
In Stock Quantity:3
:
Brand
:
Regular price
$163.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Automated Flow Systems (AFS) Pump Discharge Assemblies
AFS pump discharge assemblies provide the essential plumbing inside of a pump basin or septic tank. Flexible hose is used to dampen vibrations, simplify installation, and absorb pump starting torque. AFS pump discharge assemblies use a universal design that is suitable for both high head and low head style pumps. Pump Discharge Assemblies are built using non-corrosive materials. 150 PSI rated high pressure configurations are available.
AFS Pump Discharge Assembly Applications
- Residential & Light Commercial Pump Stations
- Onsite Systems
- Effluent Pump Stations
- Sewage Pump Stations
- Grinder Pump Stations
- Sizes From 1" - 2"
Specifications
Specifications
AFS Pump Discharge Assembly Features
- Isolation valve and union
- Optional check valve
- Optional high pressure configurations
- Suitable for both high head and low head style pumps
- Relieves pipe stress due to misalignment
- Dampens vibrations
- Absorbs shock from pump starting torque
- Unrestricted I.D. (standard configuration) for solids handling applications*
- Easy access test gauge port
- Test gauges in various pressure ranges available
- Adapters for common pump discharge connections included
* High Pressure Configurations Designed for Effluent Applications Only
AFS Pump Discharge Assembly Specifications
|
MODEL |
PIPE SIZE |
PUMP CONNECTIONS |
WORKING PRESSURE |
MAX FLOW |
MAX SOLIDS |
HOSE LENGTH |
BENDING RADIUS |
|
PDA100B |
1" |
1" / 1.25" |
75 PSI |
12 GPM |
0.90" |
18" |
3" |
|
PDA100BC |
1" |
1" / 1.25" |
75 PSI |
12 GPM |
0.90" |
18" |
3" |
|
PDA100BCQ |
1" |
1" / 1.25" |
75 PSI |
12 GPM |
0.90" |
18" |
3" |
|
PDA125B |
1.25" |
1.25" / 1.5" |
80 PSI |
45 GPM |
1.35" |
18" |
4" |
|
PDA125BC |
1.25" |
1.25" / 1.5" |
75 PSI |
22 GPM |
1.35" |
18" |
4" |
|
PDA125BCQ |
1.25" |
1.25" / 1.5" |
75 PSI |
22 GPM |
1.35" |
18" |
4" |
|
PDA150B |
1.5" |
1.25" / 1.5" / 2" |
65 PSI |
60 GPM |
1.55" |
18" |
4" |
|
PDA150BC |
1.5" |
1.5" / 2" |
65 PSI |
60 GPM |
1.55" |
18" |
4" |
|
PDA150BCQ |
1.5" |
1.5" / 2" |
65 PSI |
60 GPM |
1.55" |
18" |
4" |
|
PDA200B |
2" |
2" |
60 PSI |
100 GPM |
1.95" |
18" |
5" |
|
PDA200BC |
2" |
2" |
60 PSI |
50 GPM |
1.95" |
18" |
5" |
|
PDA200BCQ |
2" |
2" |
60 PSI |
50 GPM |
1.95" |
18" |
5" |
|
PDAHP100B |
1" |
1" / 1.25" |
150 PSI |
25 GPM |
0.75" |
18" |
8" |
|
PDAHP100BC |
1" |
1" / 1.25" |
150 PSI |
25 GPM |
0.75" |
18" |
8" |
|
PDAHP125B |
1.25" |
1.25" / 1.5" |
150 PSI |
45 GPM |
0.95" |
18" |
9" |
|
PDAHP125BC |
1.25" |
1.25" / 1.5" |
150 PSI |
45 GPM |
0.95" |
18" |
9" |
|
PDAHP150B |
1.5" |
1.5" / 2" |
150 PSI |
60 GPM |
1.125" |
18" |
10" |
|
PDAHP150BC |
1.5" |
1.5" / 2" |
150 PSI |
60 GPM |
1.125" |
18" |
10" |
|
PDAHP200B |
2" |
2" |
150 PSI |
100 GPM |
1.65" |
18" |
14" |
|
PDAHP200BC |
2" |
2" |
150 PSI |
100GPM |
1.65" |
18" |
14" |
