Automatic Flow Systems (AFS) AFSCPS120/240DM Control Panel

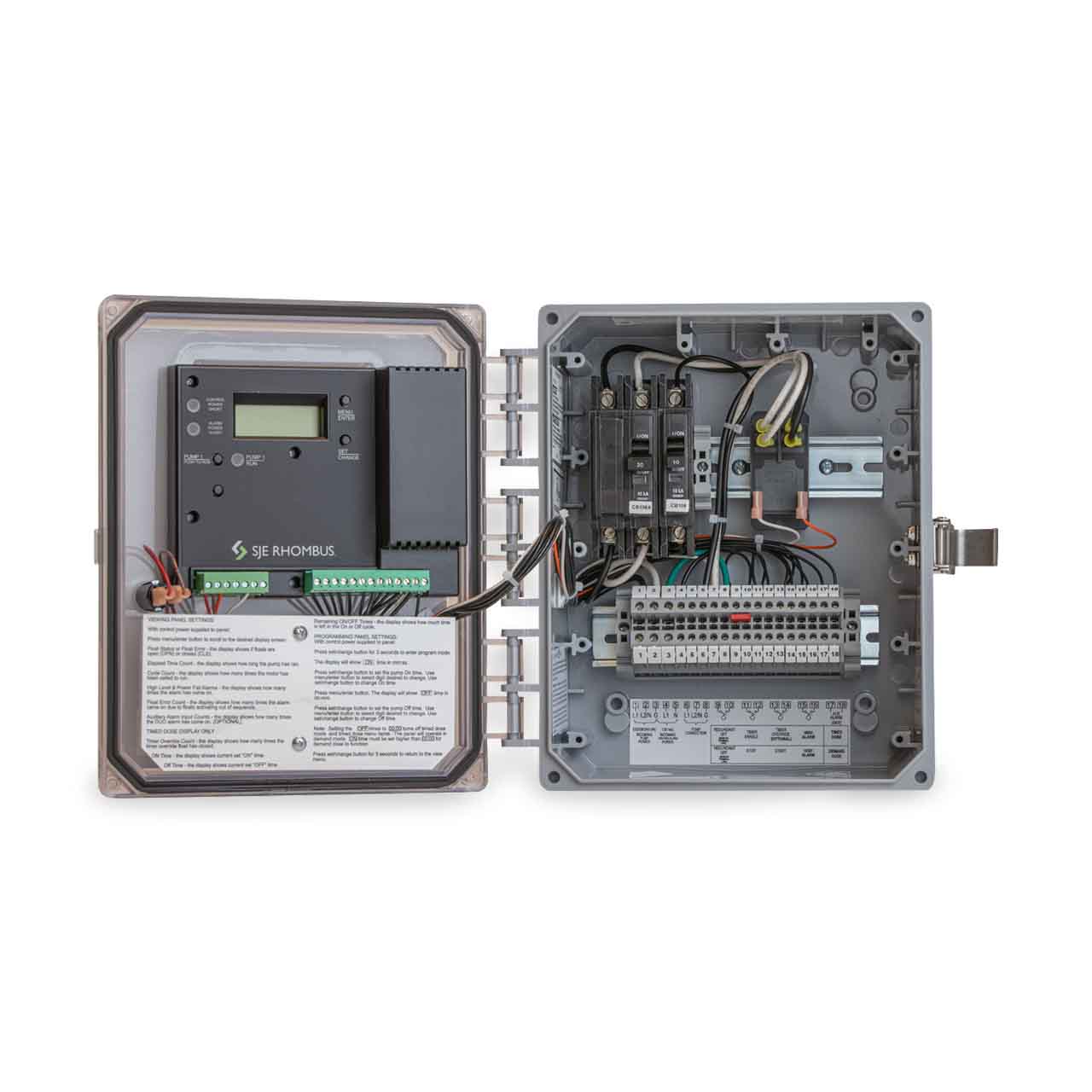

The Automated Flow Systems AFSCPS120/240DM Simplex, Dual Mode, Dual Voltage control panel is designed to control one 120/208/240V single phase pump in water and sewage installations. It features a digital backlit LCD display on the inside of the front cover for programming pump control and system monitoring, including: float status, elapsed time pump run, cycle counter, alarm counts (high water/power fail), float error count, auxiliary alarm counter, timer override count (TD only), on/off time (TD only). This innovative control panel is easily converted to demand or timed dose in the field

Automatic Flow Systems (AFS) AFSCPS120/240DM Control Panel Features

• Digital Controller
• Backlit LED Display
• Demand Dosing
• Timed Dosing
• 120-240 Volts Single-Phase
• Two-Wire Pumps up to 20 FLA
• Simplified Wiring
• Lockable NEMA 4X Enclosure

Automatic Flow Systems (AFS) AFSCPS120/240DM Control Panel Specifications

• 10x8x6 NEMA 4X Enclosure Rated for Outdoor Use
• Locking Latch for Added Safety
• Controller Touch Safe Housing
• Digital Backlit LCD Display; 2 Lines, 16 Characters Per Line
• Pump Run Button
• Menu/Enter & Set/Change Buttons for Programming and Viewing Control Panel
• Two Circuit Breakers: One for Pump Power; Another for Control and Alarm Power
• Pump Run Relay Controls Pump by Switching Electrical Lines
• Simplified Wiring Diagram Inside the Box
• Large Terminal Strip for Easy Wiring
• FLOATS SOLD SEPARATELY
