A.Y. McDonald SM0833 50HP460V 8" Submersible Motor 50 HP 460V 3PH 3-Wire
A.Y. McDonald SM0833 50HP460V 8" Submersible Motor 50 HP 460V 3PH 3-Wire
SKU : AYM3132717
In Stock Quantity:0
:
Brand
:
Regular price
$7,417.15 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

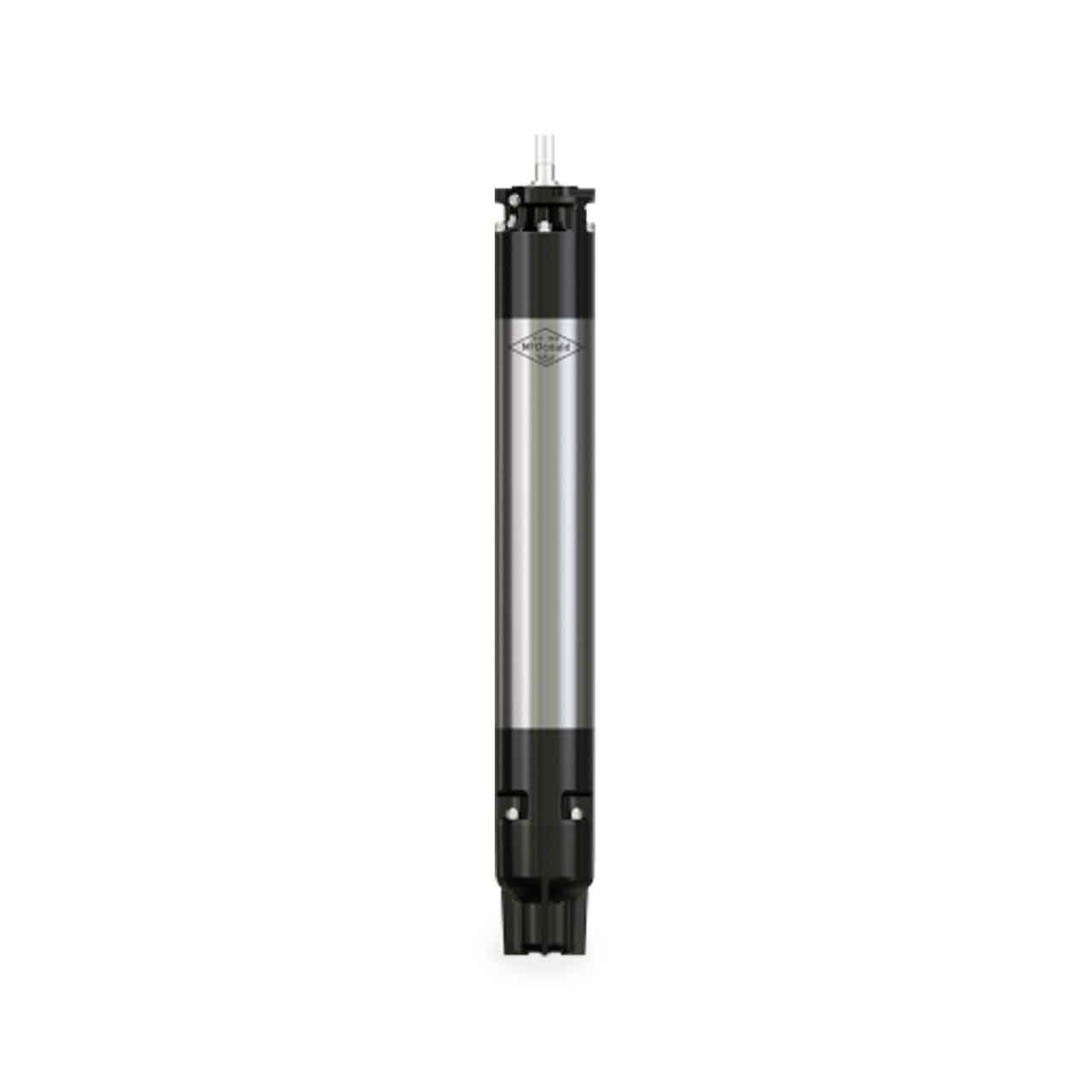

A.Y. McDonald 8" Submersible Motors
8” Asynchronous two-pole submersible motor, rewindable type, with external shell made in AISI 31 stainless steel and supports in cast iron with paint coating. Cooling and lubrication of the thrust bearing assembly and carbon bushes is provided by a mixture of water and glycol. Squirrel-cage rotor mounted on self-centering thrust bearing. Overload protection must be provided by user.
A.Y. McDonald 8" Submersible Motor Features
- 304 Stainless Steel for All Parts that Come in Contact with Water.
- 304 Stainless Steel Motor Shaft.
- Squirrel-Cage Rotor Mounted on a Self-Centering Thrust Bearing.
- Stator Housed in an Airtight 304L Stainless Steel Casing (can-type)
- Temperature Rating 95ºF.
Specifications
Specifications
A.Y. McDonald SM0833 50HP460V Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 50.0 HP
- CABLE LENGTH: 16 ft.
- VOLTAGE: 3ø, 460V
- RPM: 3450
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 13500 lbs
- MAX AMBIENT TEMPERATURE: 100°F/38°C
- FULL LOAD AMPS: 74.0
- FLANGE: NEMA 8"
- MAX OPERATING DEPTH: 984 ft
- LEAD: 3-wire
- Starter Kit Required
