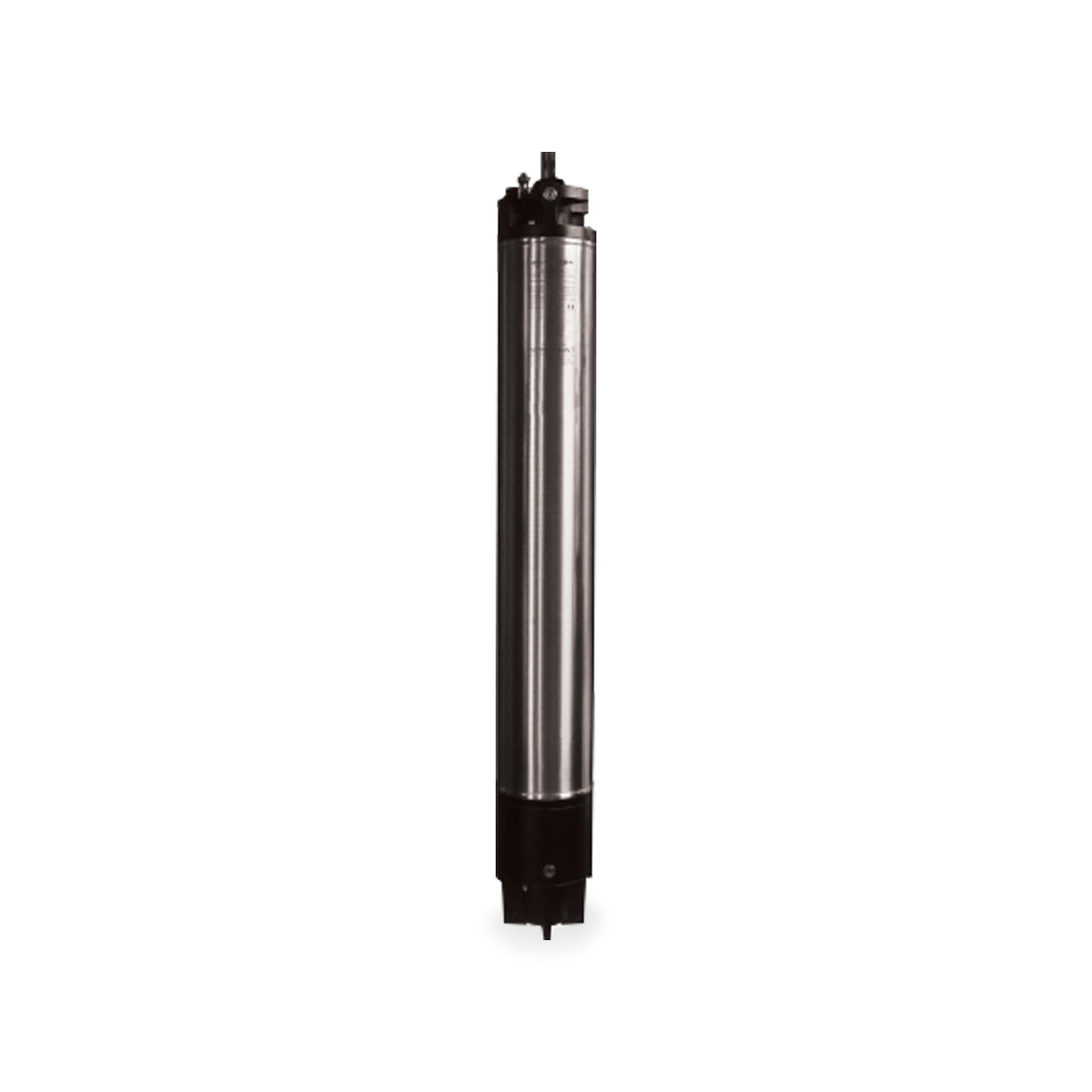

A.Y. McDonald SM0733 30HP460V 7" Submersible Motor 30 HP 460V 3PH 3-Wire
A.Y. McDonald SM0733 30HP460V 7" Submersible Motor 30 HP 460V 3PH 3-Wire
SKU : AYM3132728
In Stock Quantity:0
:
Brand
:
Regular price
$6,301.10 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald 7" Submersible Motors
A.Y. McDonald offers a full line of 6",7",8" & 10" submersible motors. Our 6" motors range from 5 HP to 60 HP. The 7" motors range from 30 HP to 75 HP. The 8" motors range from 40 HP to 150 HP and our 10" motors range from 125 HP to 250 HP. Cooling and lubrication of the thrust bearing assembly is provided by a mixture of water and glycol.
A.Y. McDonald 7" Submersible Motor Features
- AISI 304 Stainless Steel Shell, Thrust Bearings, Shaft Ends.
- Removable Cable Connector to Allow Fast and Easy Maintenance.
- Temperature Rating 85ºF.
Specifications
Specifications
A.Y. McDonald SM0733 30HP460V Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 30 HP
- CABLE LENGTH: 13 ft.
- VOLTAGE: 3ø, 460V
- RPM: 3450
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 10100 lbs
- MAX AMBIENT TEMPERATURE: 100°F/38°C
- FULL LOAD AMPS: 38.2
- FLANGE: NEMA 7"
- MAX OPERATING DEPTH: 984 ft
- LEAD: 3-wire
- Starter Kit Required
