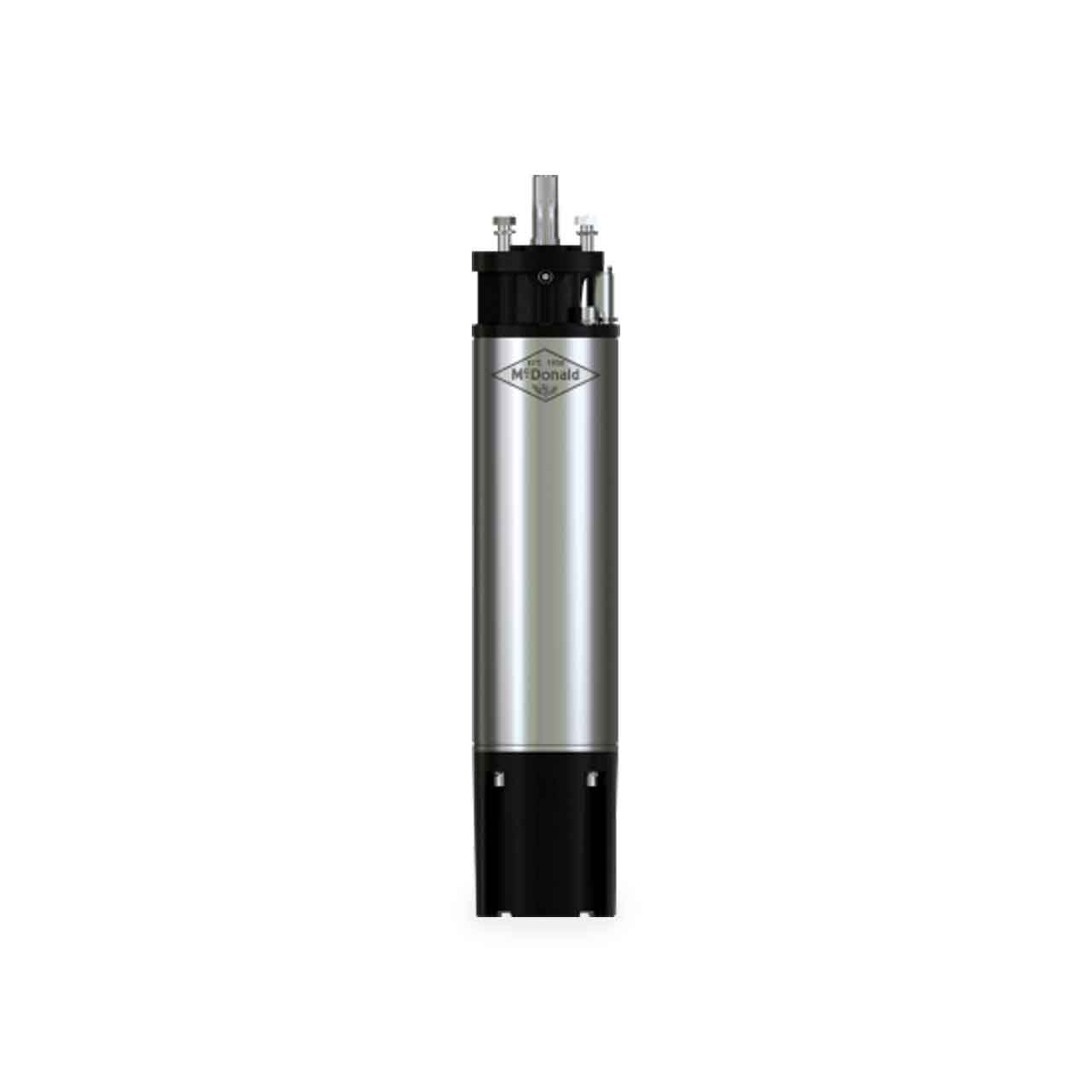

A.Y. McDonald SM0613 15HP230V 6" Submersible Motor 15 HP 230V 1PH 3-Wire
A.Y. McDonald SM0613 15HP230V 6" Submersible Motor 15 HP 230V 1PH 3-Wire
SKU : AYM3132548
In Stock Quantity:0
:
Brand
:
Regular price
$4,286.14 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald 6" Submersible Motors
6” Asynchronous two-pole submersible motor, made in AISI 304 stainless steel and cast iron with paint coating for parts in contact with water. Cooling and lubrication of the thrust bearing assembly and carbon bushes is provided by a mixture of water and glycol. Squirrel-cage rotor mounted on self-centering thrust bearing. Stator housed in an airtight stainless steel casing (canned-type). Removable cable connector to allow fast and easy maintenance. Motor suitable for use with variable frequency drive (60 Hz). Overload protection must be provided by user.
A.Y. McDonald 6" Submersible Motor Features
- 304 Stainless Steel for All Parts that Come in Contact with Water.
- 304 Stainless Steel Motor Shaft.
- Squirrel-Cage Rotor Mounted on a Self-Centering Thrust Bearing.
- Stator Housed in an Airtight 304L Stainless Steel Casing (can-type)
- Temperature Rating 95ºF.
Specifications
Specifications
A.Y. McDonald SM0613 15HP230V Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 15.0 HP
- CABLE LENGTH: 13 ft.
- VOLTAGE: 1ø, 230V
- RPM: 3450
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 3600 lbs
- MAX AMBIENT TEMPERATURE: 95°F/35°C
- FULL LOAD AMPS: 62.9
- FLANGE: NEMA 6"
- MAX OPERATING DEPTH: 984 ft
- LEAD: 3-wire
- CONTROL BOX REQUIRED
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 6" Submersible Motors Product Resources
Download A.Y. McDonald 6 in Submersible Motor Submittal Sheet
Download A.Y. McDonald 6 in Submersible Motor Brochure
