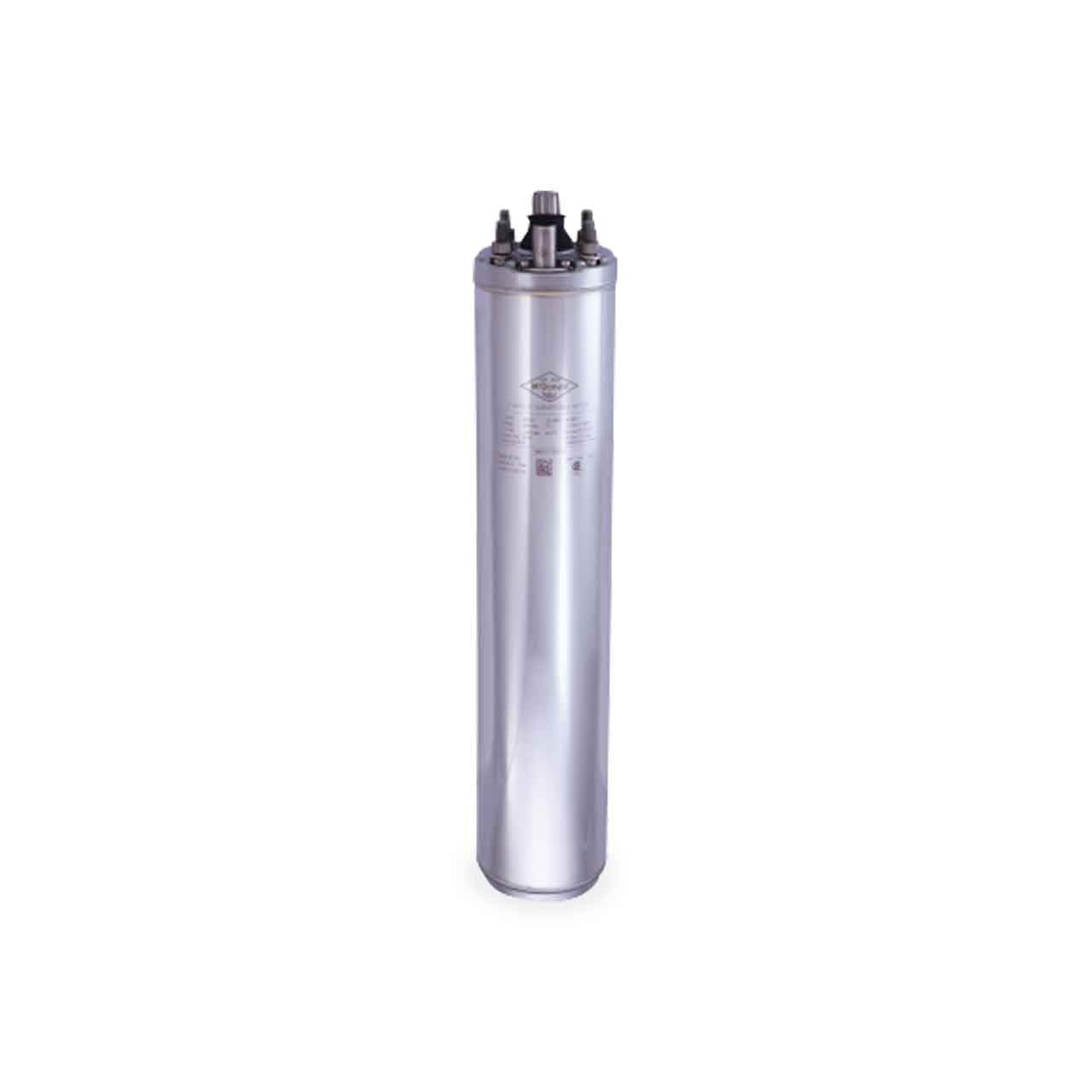

A.Y. McDonald SM0412 0.5HP115V 4" Submersible Motor 0.5 HP 115V 1PH 2-Wire
A.Y. McDonald SM0412 0.5HP115V 4" Submersible Motor 0.5 HP 115V 1PH 2-Wire
SKU : AYM3132008
In Stock Quantity:0
:
Brand
:
Regular price
$805.41 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald 4" Submersible Motors
4” Asynchronous two-pole submersible motor, made in AISI 304 stainless steel for parts in contact with water. Cooling and lubrication of the thrust bearing assembly and carbon bushes is provided by a mixture of water and glycol. Squirrel-cage rotor mounted on self-centering thrust bearing. Stator housed in an airtight stainless steel casing (canned-type) with both flanges and shell in AISI 304L stainless steel. Removable cable connector to allow fast and easy maintenance. The capacitor is placed in the Noryl cartridge directly connected to the motor, so the motor doesn’t require an external control box. Thermal protection included in the motor from 1/2 HP to 1 HP in the 230V - 60 Hz version.
A.Y. McDonald 4" Submersible Motor Features
- 304 Stainless Steel for All Parts that Come in Contact with Water.
- 304 Stainless Steel Motor Shaft.
- Squirrel-Cage Rotor Mounted on a Self-Centering Thrust Bearing.
- Stator Housed in an Airtight 304L Stainless Steel Casing (can-type)
- Temperature Rating 95ºF.
Specifications
Specifications
A.Y. McDonald SM0412 0.5HP115V Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 0.5 HP
- CABLE LENGTH: 5-1/2 ft.
- VOLTAGE: 1ø, 115V
- RPM: 3450
- SERVICE FACTOR: 1.6
- DOWNWARD THRUST (lbs): 500 lbs
- MAX AMBIENT TEMPERATURE: 95°F/35°C
- FULL LOAD AMPS: 8.6
- FLANGE: NEMA 4"
- MAX OPERATING DEPTH: 984 ft
- LEAD: 2-wire
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 4" Submersible Motors Product Resources
Download A.Y. McDonald 4 in Submersible Motor Submittal Sheet
Download A.Y. McDonald 4 in Submersible Motor Brochure
