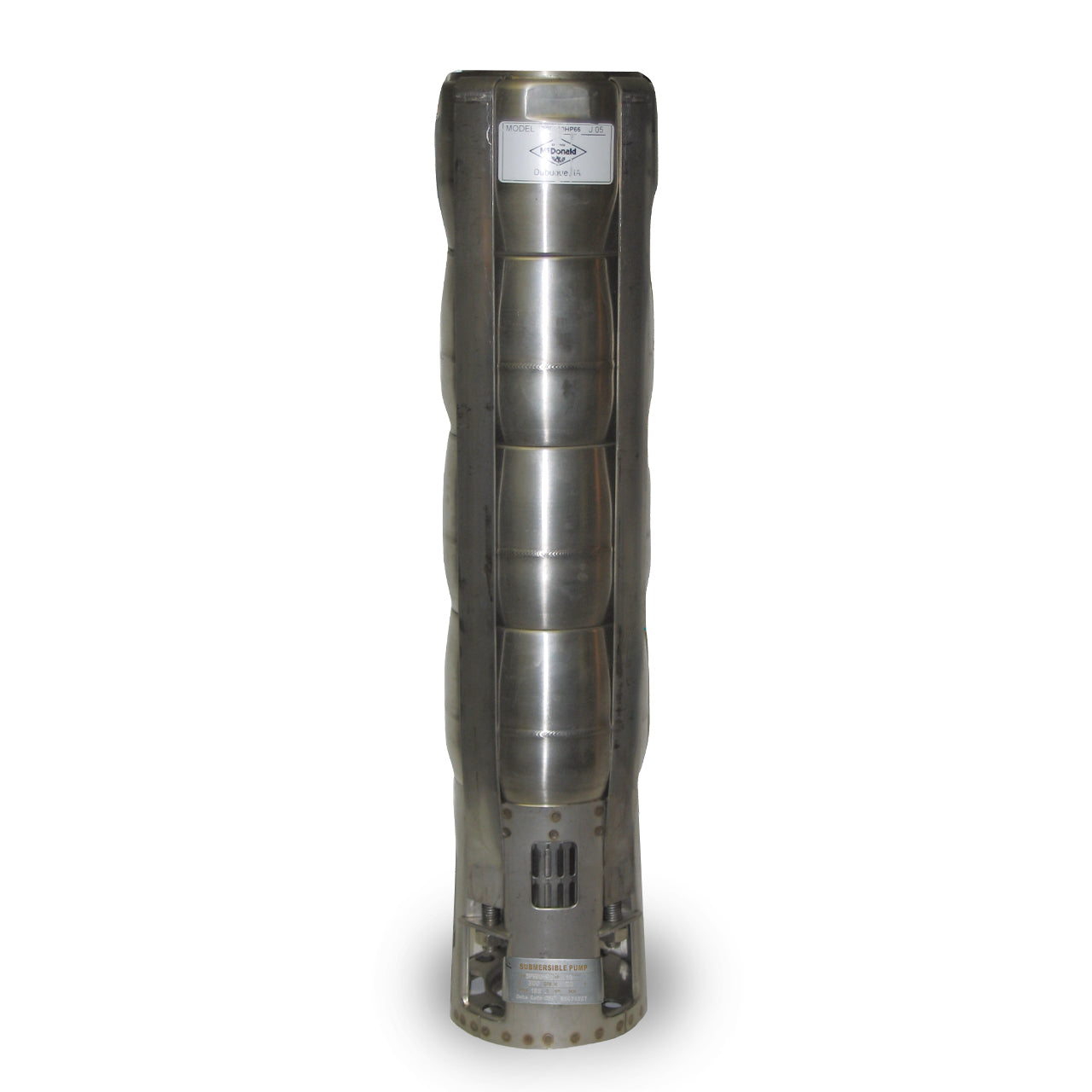

A.Y. McDonald 90S3HP64 Stainless Steel 6" Pump End 90 GPM 3.0 HP 4" Motor Bracket
A.Y. McDonald 90S3HP64 Stainless Steel 6" Pump End 90 GPM 3.0 HP 4" Motor Bracket
SKU : AYM90S3HP64
In Stock Quantity:0
:
Brand
:
Regular price
$1,873.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of 6", 8" & 10" stainless steel submersible pump ends ranging from 2 horsepower through 250 horsepower. These submersibles offer peak capacity performance in 90, 150, 230, 300, 400, 500, 650, 800 and 1100 GPM.
A.Y. McDonald Stainless Steel Pump Ends Offer Peak Capacity Performance in its 90 GPM. Each pump end includes cable guard, bolts and washers. The 90 GPM Series is a 6" Stainless Steep Pump End that ranges from 3 to 40 Horsepower.
A.Y. McDonald 90 GPM Well Pump End Features
- Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
- Stainless Steel Discharge Head with Built-In Check Valve
- High-Efficiency Stainless Steel Impellers & Diffusers
- Stainless Steel Suction Screen
- Stainless Steel Shaft & Coupling
- Stainless Steel NEMA Faced Mounting Bracket
Specifications
Specifications
A.Y. McDonald 6" 90 GPM Well Pump End Specifications
- DISCHARGE SIZE: 3.0” FNPT
- NOMINAL FLOW RATING: 90 GPM
- HORSEPOWER: 3.0 HP
- MAXIMUM CAPACITY: 120 GPM
- MAXIMUM HEAD: 110’
- STAGES: 2
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
A.Y. McDonald 6" 90 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 6" 90 GPM Well Pump Product Resources
Download A.Y. McDonald 6" 90 GPM Submittal Data
Download A.Y. McDonald 6", 8" & 10" SS Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
Download A.Y. McDonald Pump Basics
