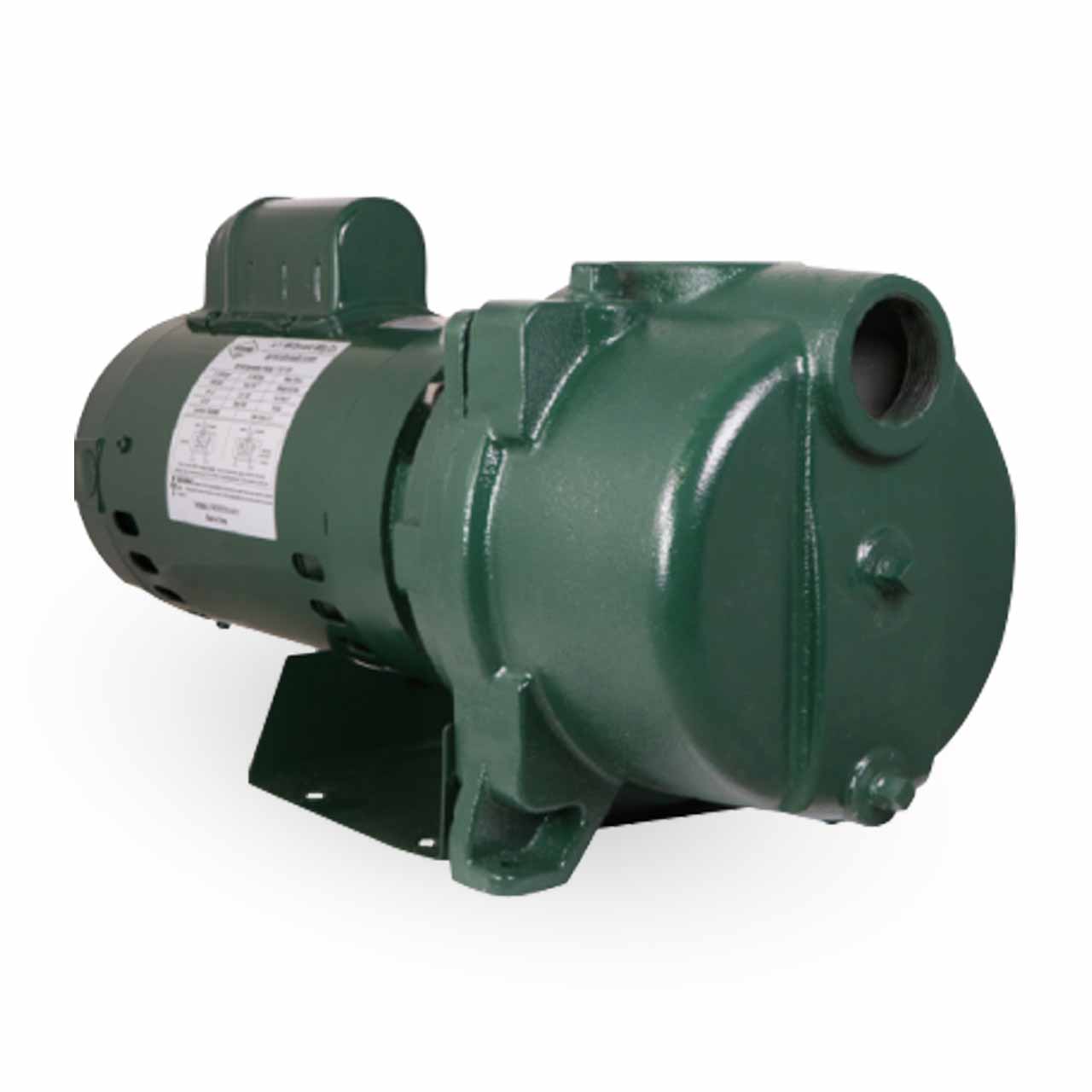

A.Y. McDonald's E-Series Sprinkler Pump is designed with a 1-1/2" inlet and outlet with a flow up to 85 GPM. With an easy switch between 115V and 230V and a 304 stainless steel insert on the impeller, this high quality pump also contains a stainless steel wear ring between the impeller and diffuser. The E-Series Sprinkler Pump is available in 1, 1-1/2 and 2 HP and comes with a reliable, robust and tested motor.

A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump Applications

• Lawn and Turf Sprinkling
• Garden Irrigation

A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump Features

• Up to 85 GPM
• 1-1/2" Inlet and Outlet
• Reliable, Robust and Tested Motor
• Easy to Switch Between 115V and 230V
• 2 HP Sprinkler Pump - 230V Only
• 304 Stainless Steel Motor Shaft with Wrench Flat
• All Iron Pump Housing and Seal Plate
• 304 Stainless Steel Insert on Impeller
• Stainless Steel Wear Ring Between the Impeller and Diffuser
• Stainless Steel Bolt Hardware Connecting Pump to Motor

A.Y. McDonald 89200 E-Series Self-Priming Sprinkler Pump Specifications

• DISCHARGE SIZE: 1.5" NPT
• INLET SIZE: 1.5" NPT
• MAXIMUM HEAD: up to 50 PSI
• MAXIMUM CAPACITY: up to 85 GPM
• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 2.0 HP
• VOLTAGE: 1ø, 230V

A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump Product Resources

Download A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump Submittal Data Sheet

Download A.Y. McDonald Irrigation & Booster Pump Catalogue
