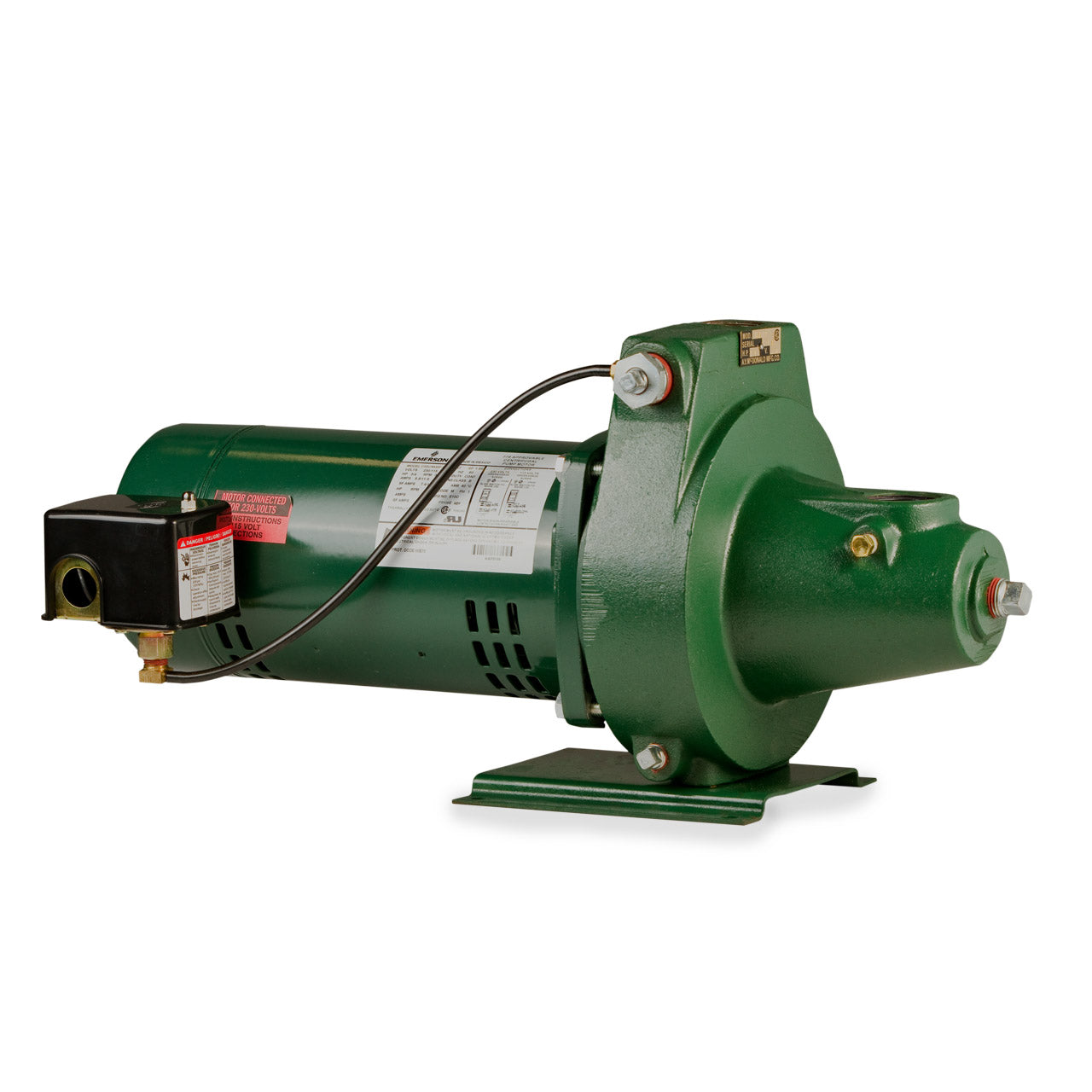

A.Y. McDonald 8511HP Shallow Well High Pressure Jet Pump 1.0 HP 230/115V
A.Y. McDonald 8511HP Shallow Well High Pressure Jet Pump 1.0 HP 230/115V
SKU : AYM8511HP
In Stock Quantity:0
:
Brand
:
Regular price
$1,007.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of shallow well and convertible jet pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. The 8500 series 1-hp shallow water well jet pump capacity is up to 25 gallons per minute (GPM) and pressures to 80 PSI.
All 8500 Series Shallow Well Pumps come with a 1-1/4” suction pipe and 1” top or side discharge. The sizes range from 1/3 to 1 horsepower (HP).
A.Y. McDonald 8500 Series Shallow Well Jet Pump Applications
- Lake Homes and Cabins
- Shallow Well Pumping
- Irrigation
A.Y. McDonald 8500 Series Shallow Well Jet Pump Features
- Square Flange Motor 7/16" - 20 Threads
- Pressure Switch Factory Settings
- 1/3 and 1/2 HP High Capacity = 20-40 PSI
- 1/3 and 1/2 HP High Pressure = 30-50 PSI
- All 3/4 and 1 HP = 30-50 PSI
* Maximum Amp. Draw at Factory Voltage Setting.
Specifications
Specifications
A.Y. McDonald 8511HP Shallow Well Jet Pump Specifications
- DISCHARGE SIZE: 1"
- INLET SIZE: 1 1/4"
- MAXIMUM CAPACITY: 14 GPM
- MAXIMUM HEAD: 80 PSI
- HORSEPOWER: 1.0 HP
- IMPELLER MATERIAL: Brass
- BODY CONSTRUCTION: Cast Iron
- MOTOR TYPE: Square Flange Motor 7/16" - 20 Threads
- VOLTAGE: 230/115V
A.Y. McDonald 8500 Series Shallow Well Jet Pump Flow Chart
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 8500 Series Shallow Well Jet Pump Product Resources
Download A.Y. McDonald 8500 Series Shallow Well Jet Pump Submittal Data Sheet
