Bargain Cave ~ Huge Discount Offer!
The bargain cave is a collection of clearance and discounted items.

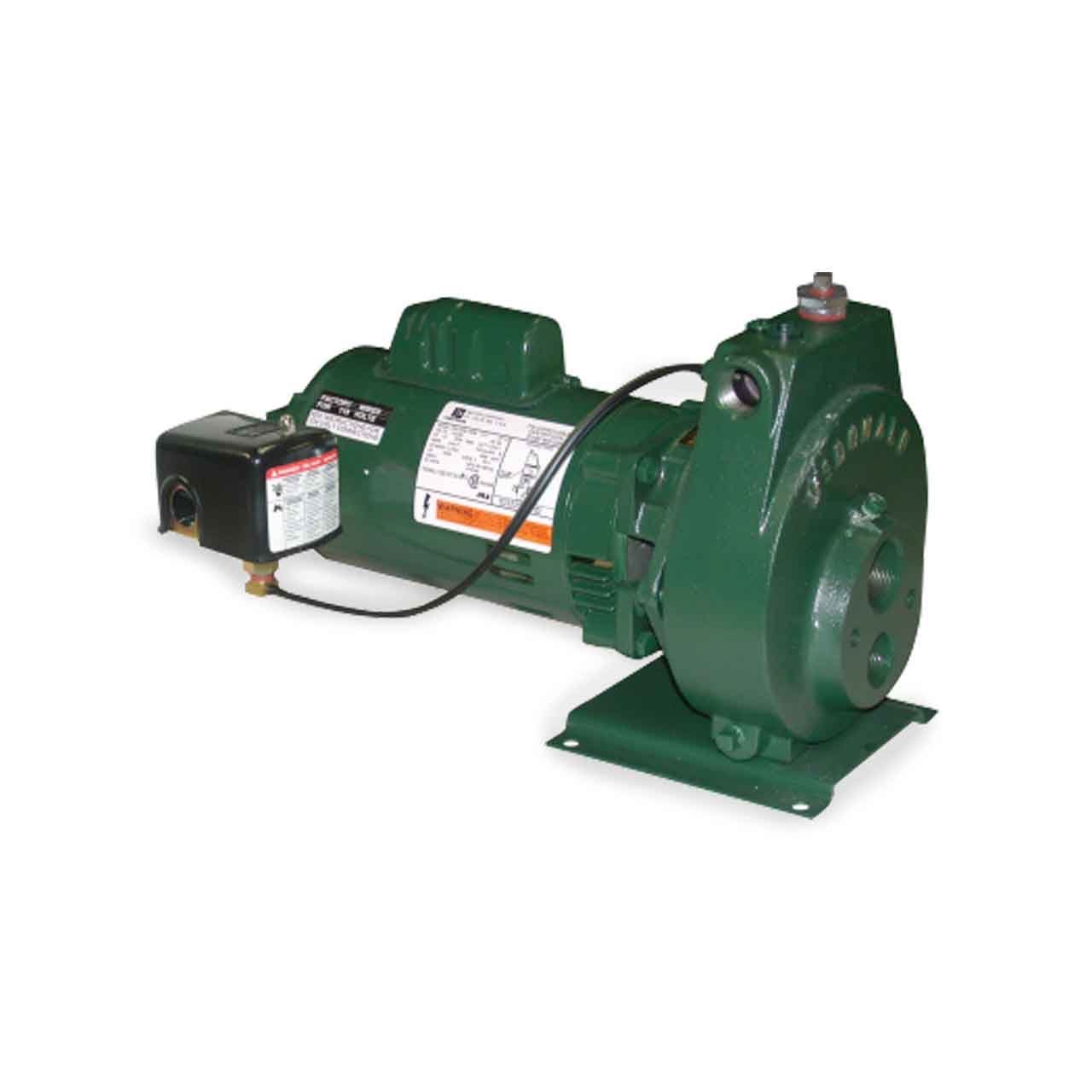

A.Y. McDonald 8251 Convertible Shallow Well Jet Pump 0.5 HP 115/230V
A.Y. McDonald 8251 Convertible Shallow Well Jet Pump 0.5 HP 115/230V
SKU : AYM8251
In Stock Quantity:0
:
Brand
:
Regular price
$869.70 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of shallow well and convertible jet pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. The 8200 series convertible capacity is up to 65 gallons per minute (GPM) and pressures to 80 PSI.
All 8200 Series Convertible Pumps come with a 1-1/4" suction pipe and 1" top or side discharge. The sizes range from 1/2 to 1 horsepower (HP).
A.Y. McDonald 8200 Series Convertible Shallow Well Jet Pump Applications
- Lake Homes and Cabins
- Shallow Well Pumping
- Irrigation
A.Y. McDonald 8200 Series Convertible Shallow Well Jet Pump Features
- NEMA J (Threaded Shaft) Motor 7/16" - 20 Threads
- Pressure Switch Factory Settings
- 1/2 HP = 20-40 PSI
- 3/4 and 1 HP = 30-50 PSI
- Two Pipe Tappings 1"x1-1/4"
* Maximum Amp. Draw at Factory Voltage Setting.
Specifications
Specifications
A.Y. McDonald 8251 Convertible Shallow Well Jet Pump Specifications
- DISCHARGE SIZE: 1.0"
- INLET SIZE: 1-1/4"
- MAXIMUM CAPACITY: 50 GPM
- MAXIMUM HEAD: 74 PSI
- IMPELLER MATERIAL: Brass
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.5 HP
- MOTOR TYPE: NEMA J Motor 7/16" - 20 Threads
- VOLTAGE: 115/230V
A.Y. McDonald 8200 Series Convertible Shallow Well Jet Pump Flow Chart
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 8200 Series Convertible Shallow Well Jet Pump Product Resources
Download A.Y. McDonald 8200 Series Shallow Well Jet Pump Submittal Data Sheet
Download A.Y. McDonald Jet Pumps Catalog
A.Y. McDonald 651JP Single-Stage Shallow Well Jet Ejector High Capacity 0.5 HP
A.Y. McDonald 655JP Single-Stage Shallow Well Jet Ejector High Pressure 0.5 HP
A.Y. McDonald 7508JP Single-Stage Deep Well Jet Ejector TP 30/50' 0.5 HP
A.Y. McDonald 7509JP Single-Stage Deep Well Jet Ejector TP 40/80' 0.5 HP
A.Y. McDonald 7735JP Single-Stage Deep Well Jet Ejector SP 30/50' 0.5 HP
A.Y. McDonald 7736JP Single-Stage Deep Well Jet Ejector SP 40/70' 0.5 HP
