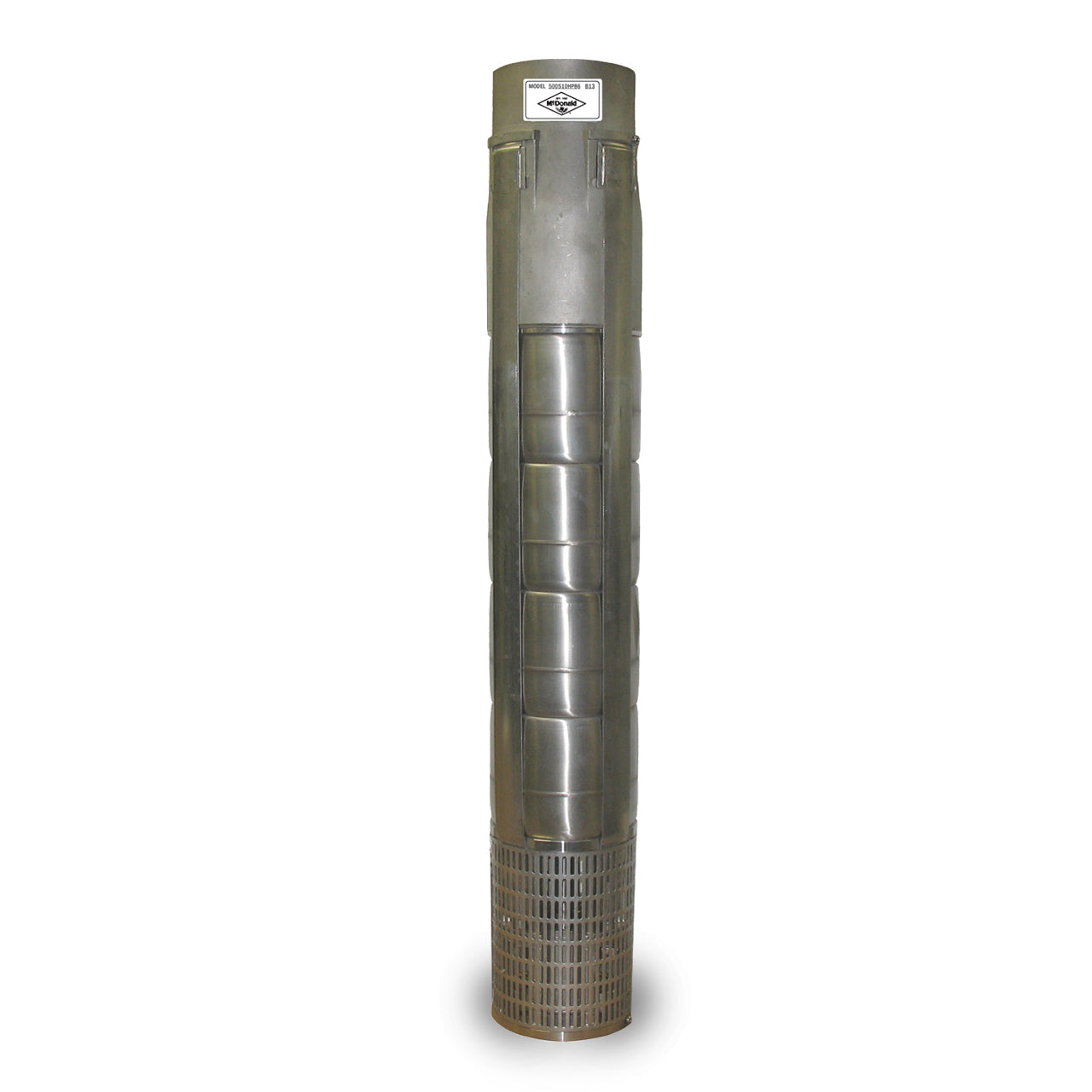

A.Y. McDonald 650S15HP106 Stainless Steel 10" Pump End 650 GPM 15 HP 6" Motor Bracket
A.Y. McDonald 650S15HP106 Stainless Steel 10" Pump End 650 GPM 15 HP 6" Motor Bracket
SKU : AYM650S15HP106
In Stock Quantity:0
:
Brand
:
Regular price
$3,219.63 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of 6", 8" & 10" stainless steel submersible pump ends ranging from 2 horsepower through 250 horsepower. These submersibles offer peak capacity performance in 90, 150, 230, 300, 400, 500, 650, 800 and 1100 GPM.
A.Y. McDonald Stainless Steel Pump Ends offer peak capacity performance in its 650 GPM. Each pump end includes cable guard, bolts and washers. The 650 GPM Series is a 10" Stainless Steel Pump End that ranges from 15 to 125 Horsepower.
A.Y. McDonald 10" Well Pump End Features
- Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
- Stainless Steel Discharge Head with Built-In Check Valve
- High-Efficiency Stainless Steel Impellers & Diffusers
- Stainless Steel Suction Screen
- Stainless Steel Shaft & Coupling
- Stainless Steel NEMA Faced Mounting Bracket
Specifications
Specifications
A.Y. McDonald 10" 650 GPM Well Pump End Specifications
- DISCHARGE SIZE: 6.0” FNPT
- NOMINAL FLOW RATING: 650 GPM
- HORSEPOWER: 15 HP
- MAXIMUM CAPACITY: 840 GPM
- MAXIMUM HEAD: 100’
- STAGES: 1
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
A.Y. McDonald 10" 650 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 10" 650 GPM Well Pump Product Resources
Download A.Y. McDonald 10" 650 GPM Submittal Data
Download A.Y. McDonald 6", 8" & 10" SS Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
