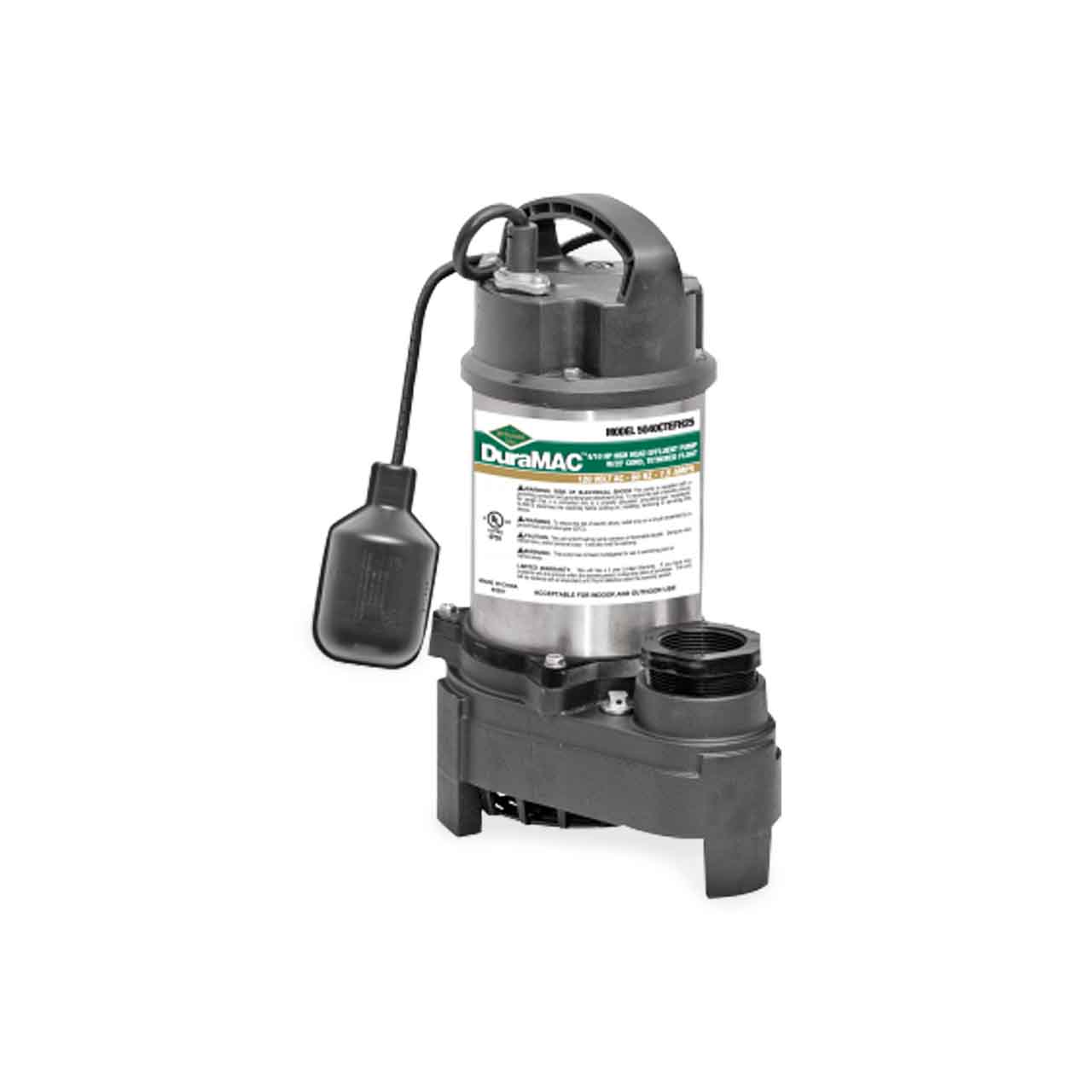

A.Y. McDonald DuraMAC 5050CTEFH25 High Head Effluent Pump features a stainless steel housing and a cast iron base for a high quality and dependable pump. The DuraMAC high head effluent pump has a built - in thermal overload protection for safety and a permanent split capacitor continuous duty motor. Convenient carrying handle is attached.

A.Y. McDonald DuraMAC Effluent Pump Features

• Non-Clogging Stainless Steel Vortex Impeller
• Available Without Switch
• 2" or 1-1/2" FNPT with Adapter - Discharge Size
• Tethered Float Switch
• Handles 3/4" Solids

A.Y. McDonald 5050CTEFH25 DuraMAC Effluent Pump Specifications

• VOLTAGE: 1ø, 120V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 7.5
• MOTOR TYPE: Permanent Split Capacitor
• RPM: 3450 RPM
• MAXIMUM HEAD: 50'
• MAXIMUM CAPACITY: 100 GPM
• SWITCH TYPE: Tethered Float Switch
• DISCHARGE PIPE SIZE: 2" or 1-1/2" FNPT w/ Adapter
• MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
• IMPELLER TYPE: Non-Clogging, Stainless Steel Vortex
• CORD LENGTH: 25'
• BODY CONSTRUCTION: Stainless Steel/ Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 120°F (49°C)
• DUTY RATING: Continuous

A.Y. McDonald DuraMAC Effluent Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald DuraMAC Effluent Pump Product Resources

Download A.Y. McDonald DuraMAC Effluent Pump Data Sheet

Download A.Y. McDonald DuraMAC Effluent Pump Installation and Operation Manual

Download A.Y. McDonald DuraMAC Sump Sewage and Effluent Pumps Catalogue
