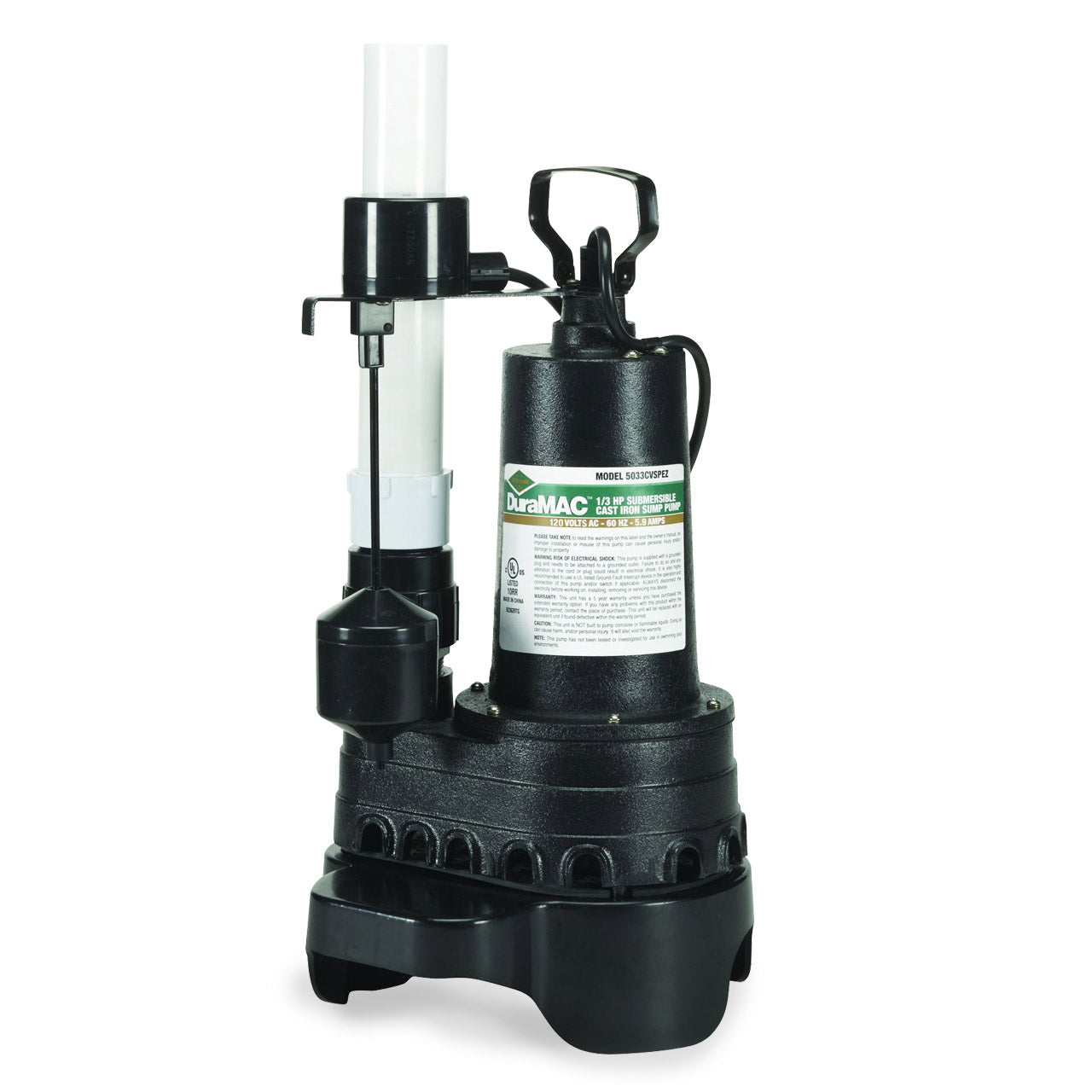

A.Y. McDonald DuraMAC 5033CVSPEZ Sump Pump can handle up to 60 gallons per minute and has a rugged cast iron pump construction and a plastic base. It is preplumbed with a check valve and discharge pipe. Easy to install - everything you need in one box.

A.Y. McDonald DuraMAC Sump Pump Features

• Pump is Mounted to the Base to Prevent Clogging and Switch Malfunction
• Split Capacitor Motor - 0.33 Continuous Duty, Thermal Protected
• Lifts Water Up to 25' of Vertical Height
• 10' Power Cord
• Large 1-1/2" Discharge for High Capacity Pumping
• Clog Resistant Impeller
• Vertical Float Switch
• Pre-Plumbed

A.Y. McDonald 5033CVSPEZ DuraMac Sump Pump Specifications

• VOLTAGE: 1ø, 120V, 60Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 5.9
• MOTOR TYPE: Split Capacitor
• RPM: 3450 RPM
• MAXIMUM HEAD: 25'
• MAXIMUM CAPACITY: 60 GPM
• SWITCH TYPE: Vertical Float Switch
• DISCHARGE PIPE SIZE: 1-1/2"
• MAXIMUM SOLIDS HANDLING SIZE: 1/2" Spherical Solids
• IMPELLER TYPE: Clog Resistant
• CORD LENGTH: 10'
• BODY CONSTRUCTION: Thermoplastic
• MAXIMUM LIQUID TEMPERATURE: 120°F (49°C)
• DUTY RATING: Continuous

A.Y. McDonald DuraMAC Sump Pump Curve and Performance

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald DuraMAC Sump Pump Product Resources

Download A.Y. McDonald DuraMAC Sump Pump Data Sheet

Download A.Y. McDonald DuraMAC Sump Pump Installation and Operation Manual

Download A.Y. McDonald DuraMAC Sump Sewage and Effluent Pumps Catalogue
