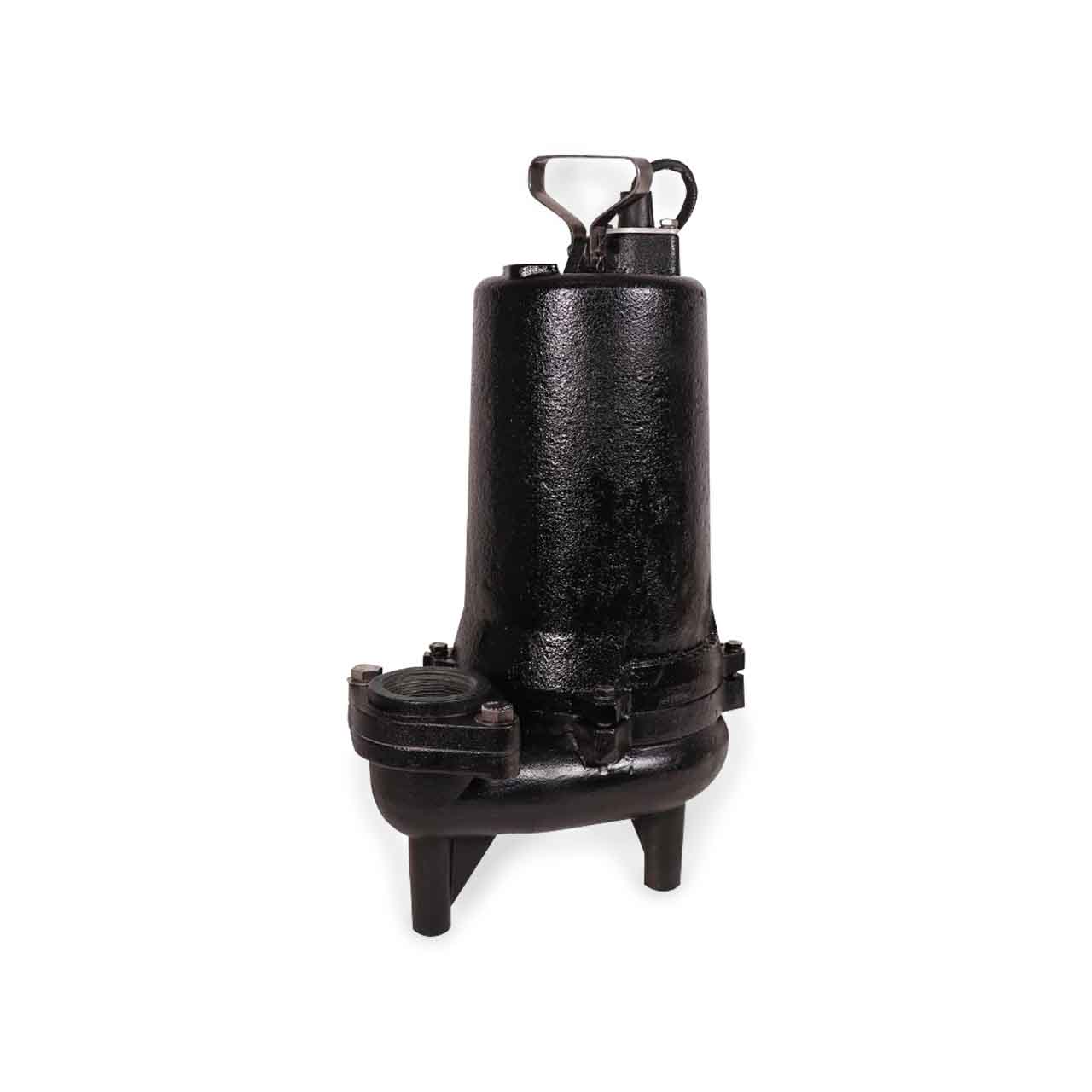

A.Y. McDonald 420012SJX Sewage Ejector Pump 2.0 HP 1PH 230V 20' Cord Manual
A.Y. McDonald 420012SJX Sewage Ejector Pump 2.0 HP 1PH 230V 20' Cord Manual
SKU : AYM420012SJX
In Stock Quantity:0
:
Brand
:
Regular price
$2,250.86 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald's 420012SJX Sewage Pumps are cast iron pumps that handle up to 2" solids with 2" or 3" discharge. Ideal for use in residential developments, wastewater transfer, hospitals, motels, apartments, schools, churches, universities, campgrounds, office complexes, septic systems for applications.
A.Y. McDonald Sewage Ejector Pump Features
- Oil Filled High Efficient Motor with Upper & Lower Ball Bearings
- Maximum Motor Cooling
- Runs Cooler and Lasts Longer
- Internal Overload Protection
- Warranty - 3 Years From Date of Manufacture
- Optional Double Seal Design with Seal Failure
- Ductile Iron Impeller - Vortex Passes 2" Solids
- Quick Disconnect Power Cord and Seal Failure Cord Optional
- Prevents Water from Entering the Motor Housing
- Easy to Replace
- Piggy Back Switch Design
- Defective Switches can be Diagnosed over the Phone
- Pump can be Operated Manually by Overriding the Switch
Specifications
Specifications
A.Y. McDonald 420012SJX Sewage Ejector Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 18
- MOTOR TYPE: Overload Protect in the Motor. Oil Filled, Class F, PSC (Permanent Split Capacitor)
- RPM: 3450 RPM
- MAXIMUM HEAD: 64'
- MAXIMUM CAPACITY: 218 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" Vertical NPT
- MAXIMUM SOLIDS HANDLING SIZE: 2" Spherical Solids
- IMPELLER TYPE: Ductile Iron
- CORD LENGTH: 20' Standard Length
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
A.Y. McDonald Sewage Ejector Pump Curve
