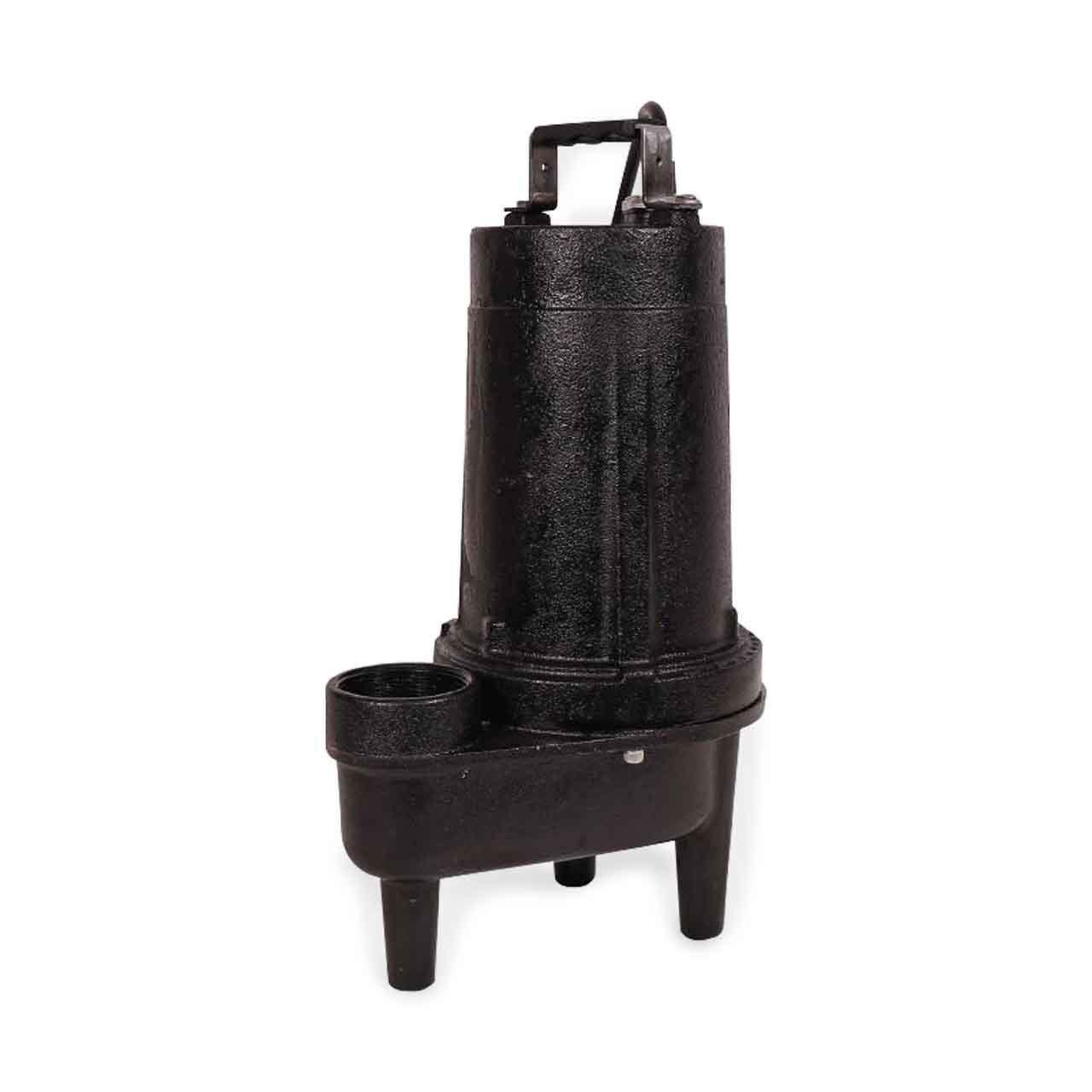

A.Y. McDonald's 405012SJ Sewage Pump can handle up to 2" solids with a 2" discharge. Applications include basements, dewatering, septic systems, sewage lift stations, add-a-baths and truck docks.

A.Y. McDonald Sewage Pump Features

• Motor - High Efficient, 115V or 230V, Oil Filled, Permanent Split Capacitor Motor with Upper and Lower Ball Bearings and Thermal Overload Protection
• Constant Bearing Lubrication
• Maximum Motor Cooling
• Runs Cooler and Lasts Longer
• Internal Overload Protection
• Quiet Operation
• Fasteners and Shaft made from Rugged, Corrosion Resistant Stainless Steel
• Warranty - 3 Years from Date of Manufacture
• Seal Design - Type 21 Inboard Seal Design with Secondary Exclusion Seal
• Rotating Components of Seal are in the Motor Housing, Being Lubricated by the Motor Oil Preventing Foreign Matter From Wrapping Around the Seal Components
• Seal Will Last Longer if the Pump Runs Dry
• Secondary Exclusion Seal keeps Debris from Entering the Seal Cavity
• Impeller Design - Non-Clog Style, Cast-Iron Vortex Impeller
• Designed to Help Reduce Clogging by Foreign Material
• Power Cord - Sealed Entry Quick Disconnect Power Cords
• Prevents Water from Entering the Motor Housing Through a Cut Cord
• Easy to Replace in the Field
• Available in Lengths up to 100'
• Switch - Piggy-Back Switch Design
• Defective Switches can be Diagnosed Over the Phone
• Pump can be Operated Manually or Supplied with Other Piggy-Back Switches
• Switches can be Replaced without Having to Replace the Pump

A.Y. McDonald 405012SJ Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 5.75
• MOTOR TYPE: NEMA L, Includes Overload Protection in Motor, Oil Filled, Class B, Permanent Split Capacitor
• RPM: 3450 RPM
• MAXIMUM HEAD: 26'
• MAXIMUM CAPACITY: 110 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2" Vertical NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2" Spherical Solids
• IMPELLER TYPE: Cast Iron / Vane
• CORD LENGTH: 20' Standard Length
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F

A.Y. McDonald Sewage Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald Sewage Pump Product Resources

Download A.Y. McDonald Sewage Pump Data Sheet
