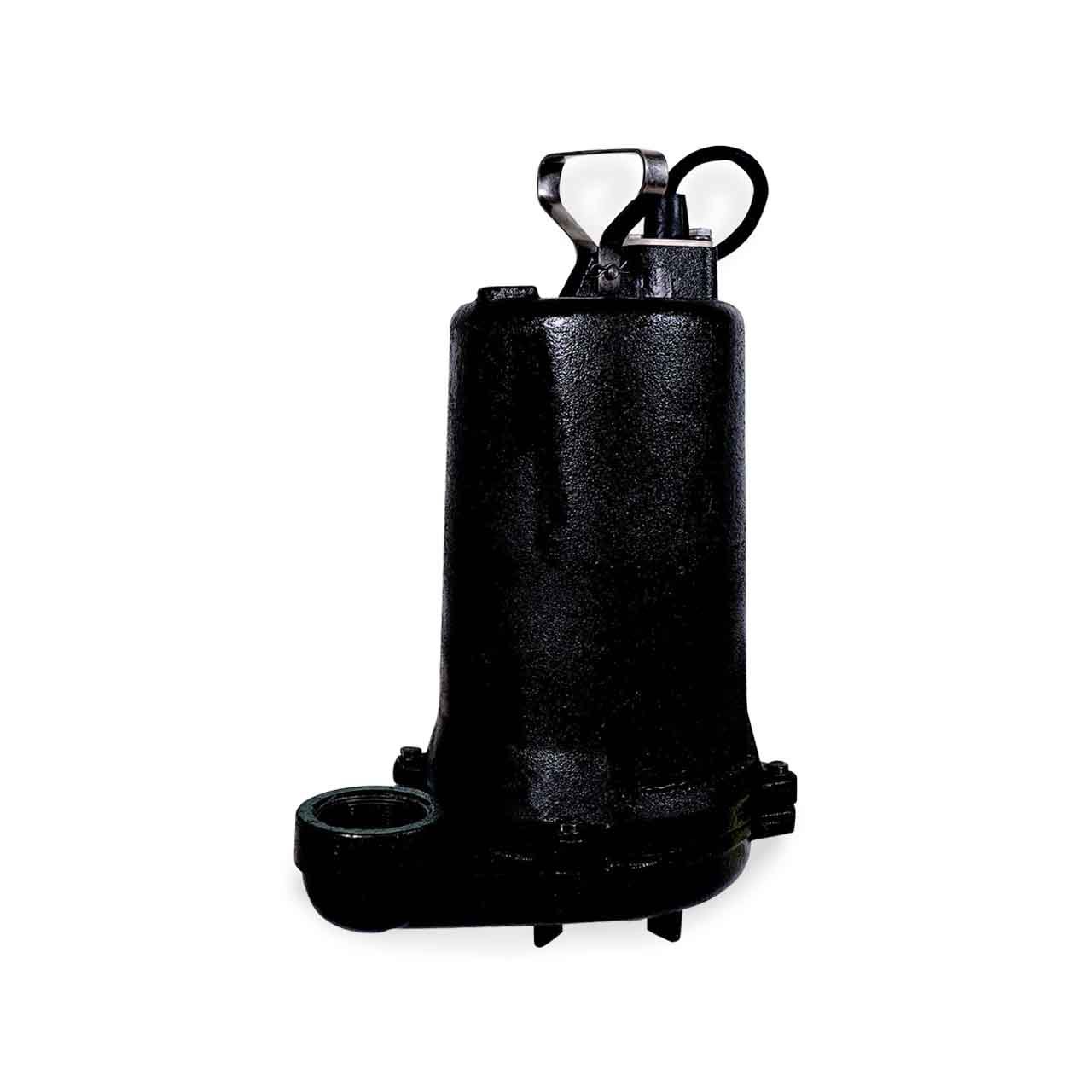

A.Y. McDonald 405011EFS Effluent Pump 0.5 HP 1PH 115V 20' Cord Manual
A.Y. McDonald 405011EFS Effluent Pump 0.5 HP 1PH 115V 20' Cord Manual
SKU : AYM405011EFS
In Stock Quantity:0
:
Brand
:
Regular price
$1,855.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald's 405011EFS Effluent Pump can handle up to 3/4" solids with 2" discharge. Designed for use in dewatering, septic systems, residential and commercial developments, elevator pit applications.
A.Y. McDonald Effluent Pump Features
- Motor - High Efficient 115V to 230V, Oil Filled, Permanent Split Capacitor Motor with Upper and Lower Ball Bearings and Thermal Overload Protection
- Constant Bearing Lubrication
- Maximum Motor Cooling
- Runs Cooler and Lasts Longer
- Internal Overload Protection
- Quiet Operation
- Fasteners and Shaft Made from Rugged, Corrosion Resistant Stainless Steel
- Warranty - 3 Years from Date of Manufacture
- Seal Design - Single, Mechanical, Oil Filled Chamber
- Optional Double Seal Series Models Available that Provides Additional Protection and Moisture Sensing Capabilities
- Optional Seal Failure Feature that will Alert you when the Seal has Failed
- Impeller Design - 1 or 2 Vane Cast Iron Impeller
- Designed to Help Reduce Clogging by Foreign Material
- Power Cord - Sealed Entry Quick Disconnect Power Cords
- Prevents Water From Entering the Motor Housing through a Cut Cord
- Easy to Replace in the Field
- Switch - Piggy-Back Switch Design (Single Phase)
- Defective Switches can be Diagnosed over the Phone
- Pump Can be Operated Manually or Supplied with Piggy-Back Switches
- Switch can be Replaced
Specifications
Specifications
A.Y. McDonald 405011EFS Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 13.8
- MOTOR TYPE: Includes Overload Protection in Motor, Oil Filled, Class F, Permanent Split Capacitor
- RPM: 3450 RPM
- MAXIMUM HEAD: 85'
- MAXIMUM CAPACITY: 83 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" Vertical NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
- IMPELLER TYPE: Cast Iron / 1 or 2 Vane
- CORD LENGTH: 20' Length Standard
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
A.Y. McDonald Effluent Pump Curve
