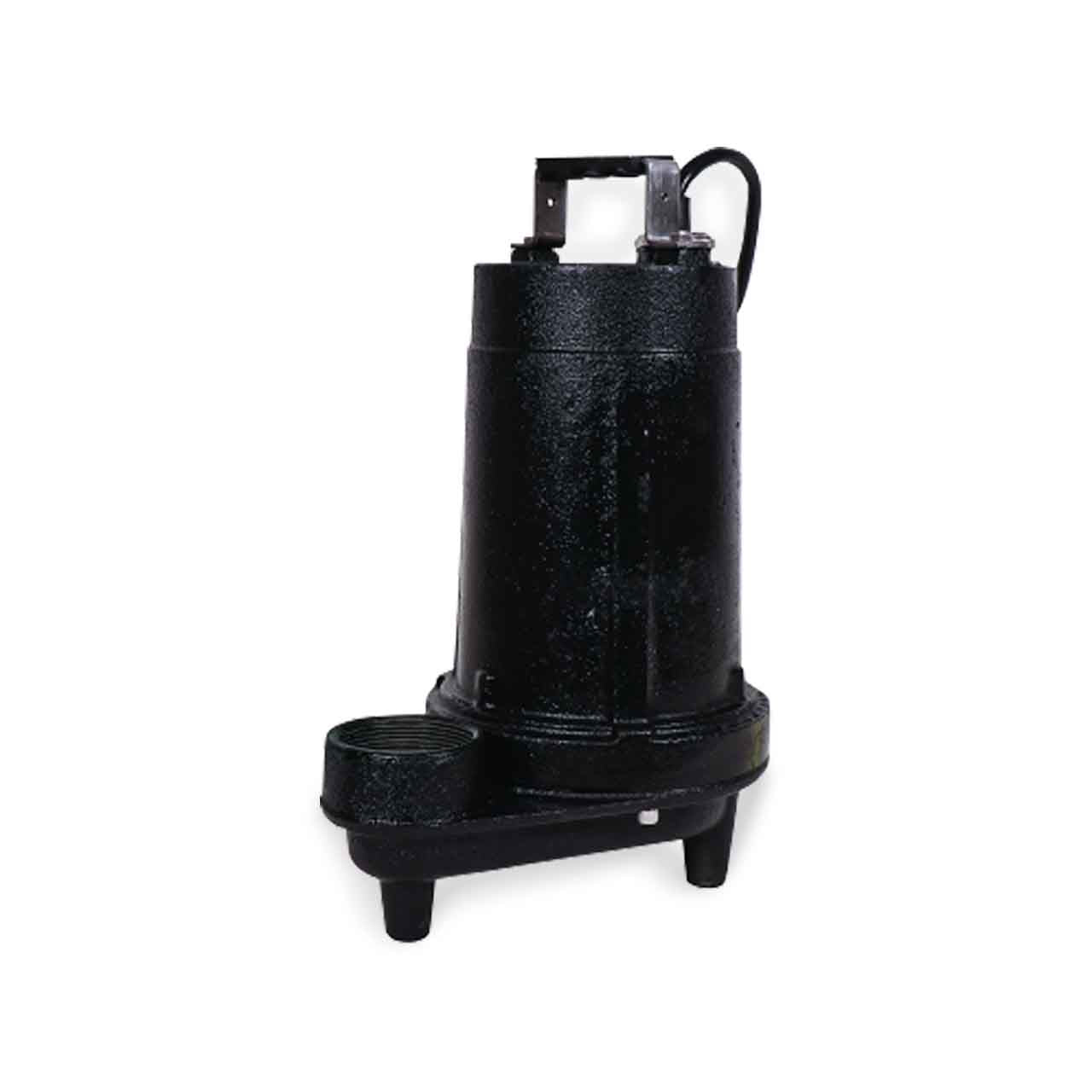

A.Y. McDonald 404011EF Effluent Pump 0.4 HP 115V 1 PH 20' Cord Manual
A.Y. McDonald 404011EF Effluent Pump 0.4 HP 115V 1 PH 20' Cord Manual
SKU : AYM404011EF
In Stock Quantity:0
:
Brand
:
Regular price
$636.35 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald 404011EF Effluent Submersible Pumps can handle up to 3/4" solids with 2" discharge. Designed for use in dewatering, septic systems, residential and commercial developments and elevator pits.
A.Y. McDonald Effluent Pump Features
- MOTOR: High Efficient, 115V or 230V, Oil Filled, Permanent Split Capacitor Motor with Upper and Lower Ball Bearings and Thermal Overload Protection
- Constant Bearing Lubrication
- Maximum Motor Cooling
- Runs Cooler and Lasts Longer
- Internal Overload Protection
- Quiet Operation
- Fasteners and Shaft Made from Rugged, Corrosion Resistant Stainless Steel
- WARRANTY: 3 Years from Date of Manufacturer
- SEAL DESIGN: Type 21 Inboard Seal Design with Secondary Exclusion Seal
- Rotation Components of Seal are in the Motor Housing, Being Lubricated by the Motor Oil Preventing Foreign Matter from Wrapping around the Seal Components
- Seal will Last Longer if the Pump Runs Dry
- Secondary Exclusion Seal Keeps Debris from Entering the Seal Cavity
- IMPELLER DESIGN: Non-Clog Style, Cast-Iron Vortex Impeller
- Designed to Help Reduce Clogging by Foreign Material
- POWER CORD: Sealed Entry Quick Disconnect Power Cords
- Prevents Water from Entering the Motor Housing Through a Cut Cord
- Easy to Replace in the Field
- Available in Lengths up to 100'
- SWITCH: Piggy-Back Switch Design
- Defective Switches can be Diagnosed over the Phone
- Pump can be Operated Manually or Supplied with Other Piggy-Back Switches
- Switch can be Replaced without Having to Replace the Pump
Specifications
Specifications
A.Y. McDonald 404011EF Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 6.6
- MOTOR TYPE: NEMA L, Includes Overload Protection in Motor, Oil Filled, Class B Permanent Split Capacitor
- RPM: 3450 RPM
- MAXIMUM HEAD: 39'
- MAXIMUM CAPACITY: 56 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" Vertical NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
- IMPELLER TYPE: Cast Iron, Vortex
- CORD LENGTH: 20'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
A.Y. McDonald Effluent Pump Curve
