A.Y. McDonald offers a full line of submersible pump ends built for years of trouble free operation, with high-efficiency stainless steel impellers and diffusers. These submersibles offer peak capacity performance in 5, 10, 18, 25, 40, and 70 gallons per minute (GPM). Other features include stainless steel discharge head with a built-in check valve, stainless steel suction screen, and stainless steel shaft and coupling.

All Stainless Steel Pumps come with 1-1/4” discharge and sizes range from 1/2 to 5 horsepower (HP).

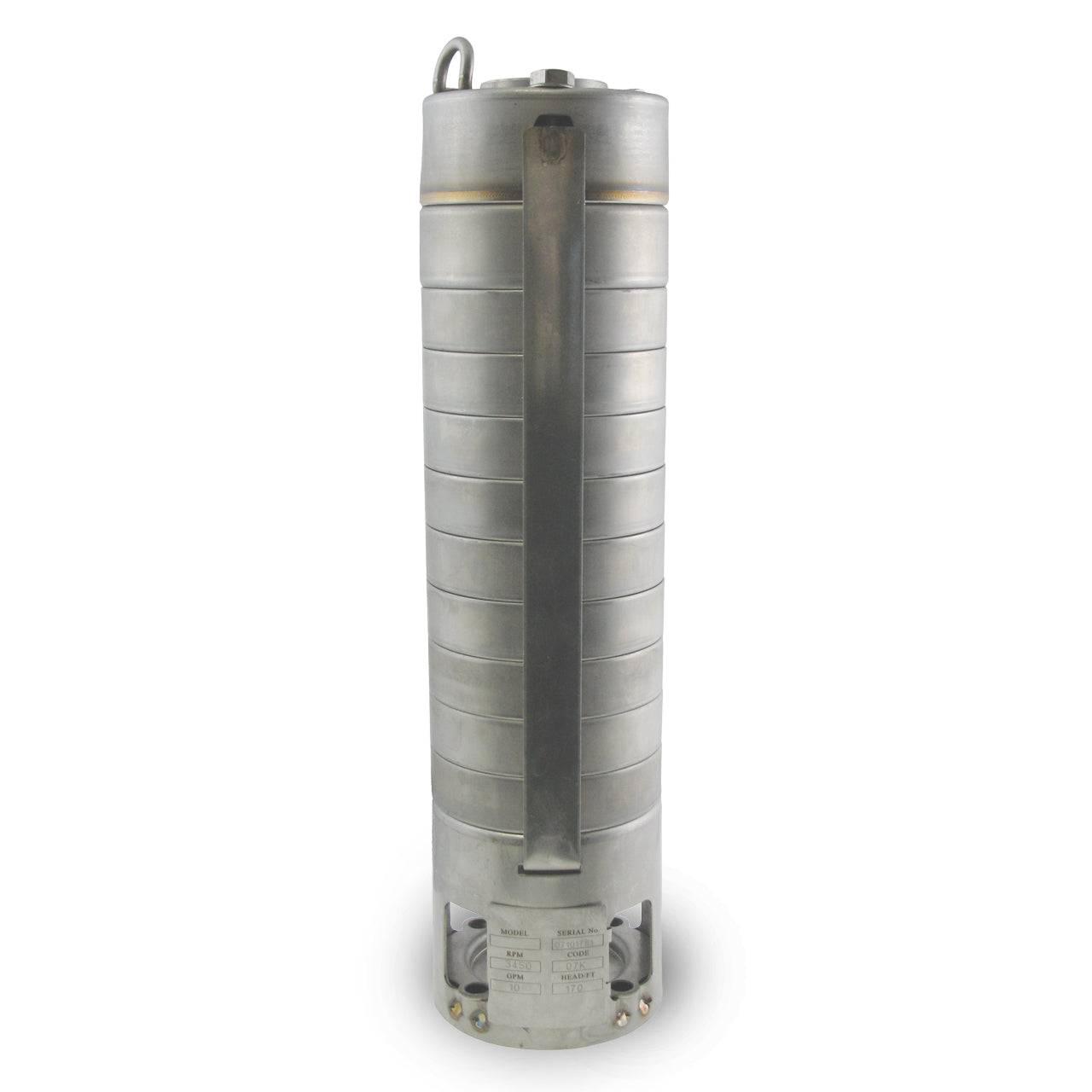

A.Y. McDonald 2600 4" Stainless Steel Pump End Features

• Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
• Stainless Steel Discharge Head with Built-In Check Valve
• Max. Ambient Temperature (Liquid): 86°F (30°C)
• High Quality Shaft Bearings
• Pumped Liquids: Clean, Non-Corrosive and No-Abrasive Liquids
• Shaft is Made of 431 Stainless Steel, All other Metal Parts are Made of 304 Stainless Steel
• High-Efficiency Stainless Steel Impellers & Diffusers
• Stainless Steel Suction Screen and Strainer
• Specifications for Mounting are According to NEMA Standards

A.Y. McDonald 26000 Series Stainless Steel Submersible Well Pump Features

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 18 GPM
• HORSEPOWER: 3.0 HP
• MAXIMUM CAPACITY: 25.0 GPM
• MAXIMUM HEAD: 720’
• STAGES: 23
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Stainless Steel
• BODY MATERIAL: 300 Series Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 140ºF (60ºC)

A.Y. McDonald 26000 P Series 18 GPM Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 26000 Series Well Pump Product Resources

Download A.Y. McDonald 26000 P Series Submittal Data

Download A.Y. McDonald 26000 Series Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting
