A.Y. McDonald offers a full line of submersible pump ends ranging from 1/2 horsepower through 10 horsepower. The 26000 Series 4" Stainless Steel submersibles offer peak capacity performance in 5, 10, 18, 25, 40, and 70 GPM.

All K Series Stainless Steel Pumps come with 1-1/4” discharge and sizes range from 1/2 to 3 horsepower (HP).

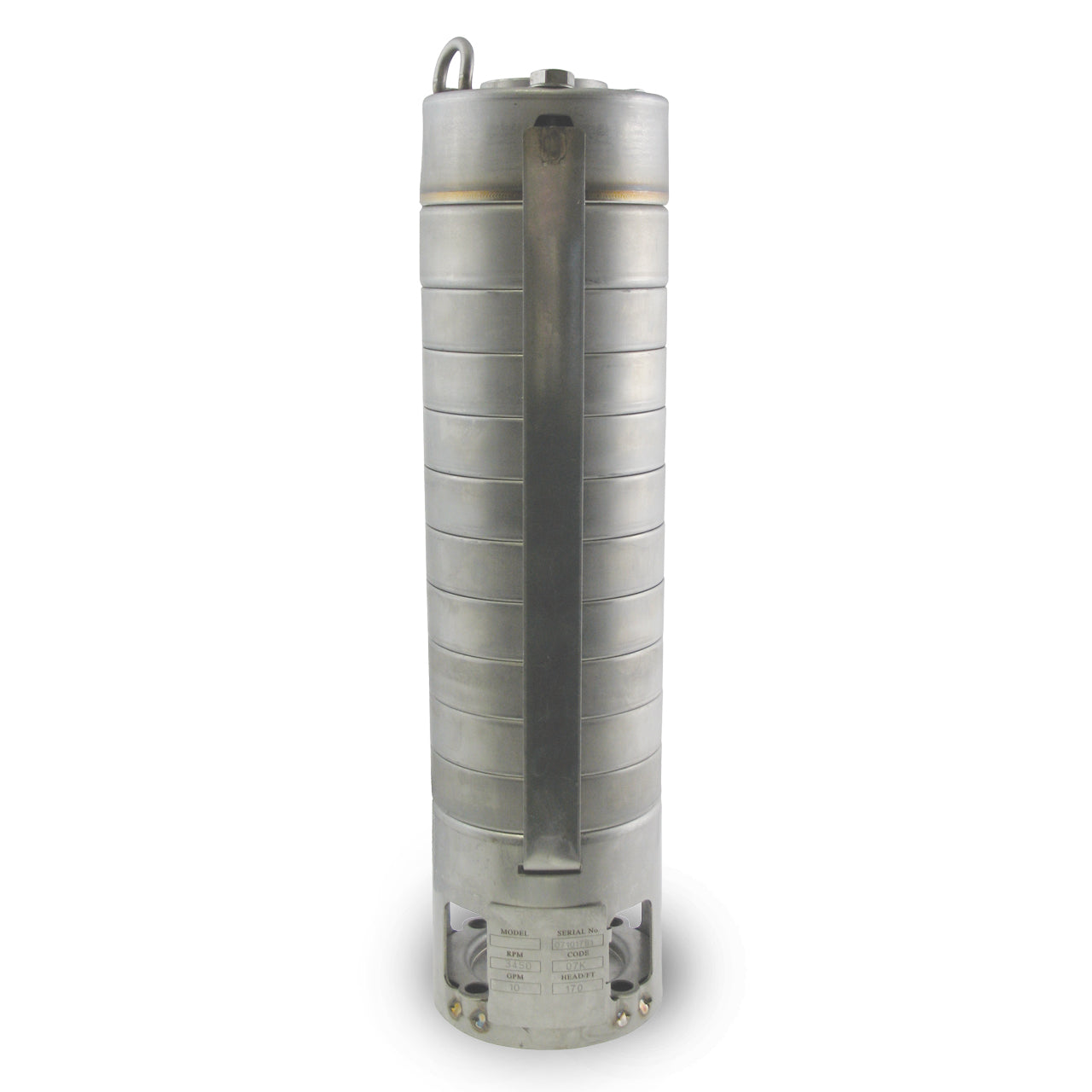

A.Y. McDonald 2600 4" Stainless Steel Pump End Features

• Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
• Stainless Steel Discharge Head with Built-In Check Valve
• Max. Ambient Temperature (Liquid): 86°F (30°C)
• High Quality Shaft Bearings
• Pumped Liquids: Clean, Non-Corrosive and No-Abrasive Liquids
• Shaft is Made of 431 Stainless Steel, All other Metal Parts are Made of 304 Stainless Steel
• High-Efficiency Stainless Steel Impellers & Diffusers
• Stainless Steel Suction Screen and Strainer
• Specifications for Mounting are According to NEMA Standards

A.Y. McDonald 26300K 4" Stainless Steel Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 10 GPM
• HORSEPOWER: 3.0 HP
• MAXIMUM CAPACITY: 16 GPM
• MAXIMUM HEAD: 960’
• STAGES: 34
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Stainless Steel
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 26000 K Series 10 GPM Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 26000 Series Well Pump Product Resources

Download A.Y. McDonald 26000 K Series Submittal Data

Download A.Y. McDonald 26000 Series Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting
