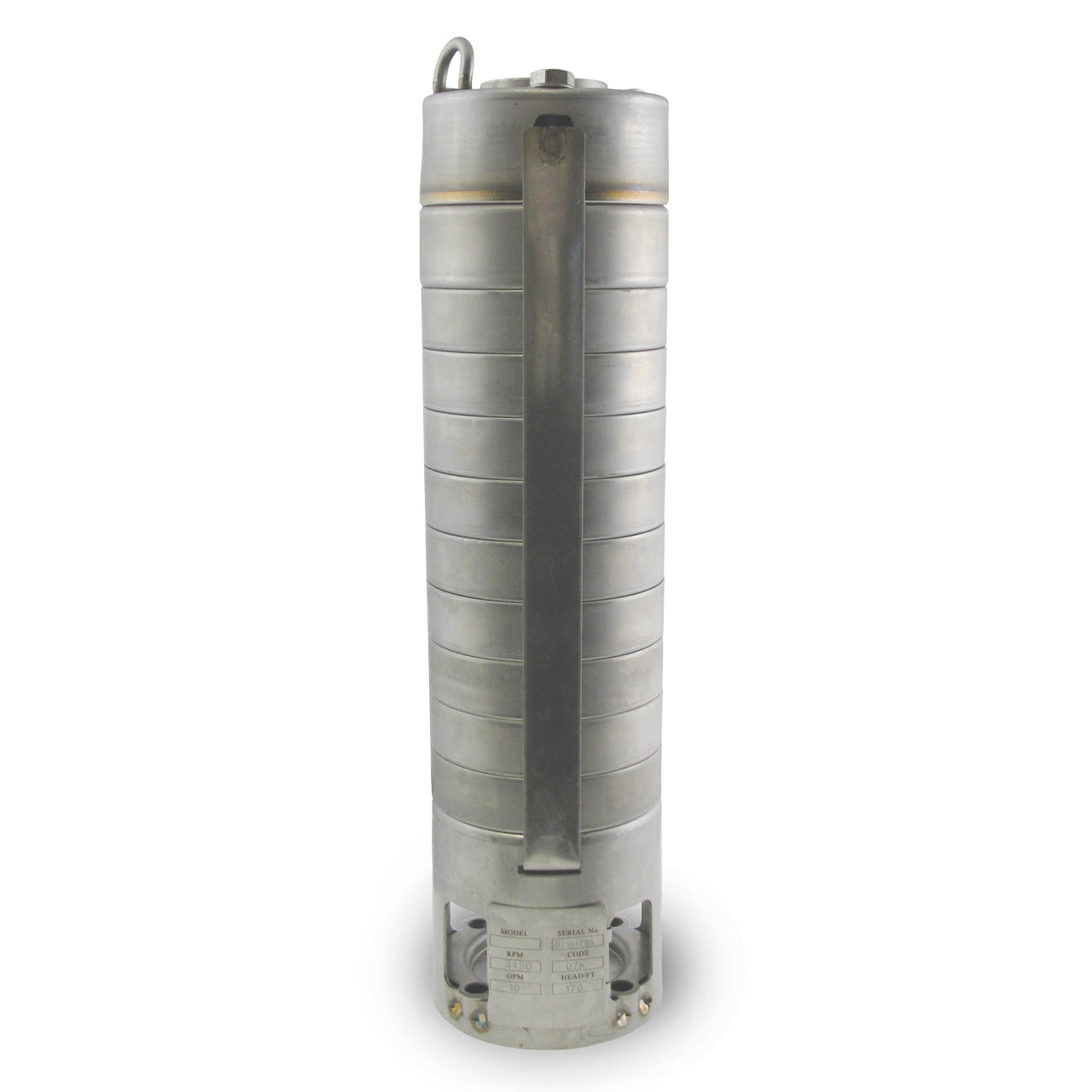

A.Y. McDonald 26150G 4" Stainless Steel Pump End 40 GPM 1.5 HP
A.Y. McDonald 26150G 4" Stainless Steel Pump End 40 GPM 1.5 HP
SKU : AYM26150G
In Stock Quantity:0
:
Brand
:
Regular price
$988.18 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of submersible pump ends ranging from 1/2 horsepower through 10 horsepower. The 26000 Series 4" Stainless Steel submersibles offer peak capacity performance in 5, 10, 18, 25, 40, and 70 GPM. Other features include stainless steel discharge head with a built-in check valve, stainless steel suction screen and stainless steel shaft and coupling.
All Stainless Steel Pump Ends come with a 2.0" discharge and sizes range from 1 to 10 horsepower (HP).
A.Y. McDonald 26000 Series Stainless Steel Pump End Features
- Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
- Stainless Steel Discharge Head with Built-In Check Valve
- Max. Ambient Temperature (Liquid): 140ºF (60ºC)
- High Quality Shaft Bearings
- Pumped Liquids: Clean Non-Corrosive and Non-Abrasive Liquids
- Shaft is made of 431 Stainless Steel, all Other Material Parts are Made of 304 Stainless Steel
- High-Efficiency Stainless Steel Impellers & Diffusers
- Stainless Steel Suction Screen and Strainer
- Specifications for Mounting are According to NEMA Standards
- Powered by A.Y. McDonald Motors
Specifications
Specifications
A.Y. McDonald 26150G Stainless Steel Pump End Specifications
- DISCHARGE SIZE: 2.0” NPT
- NOMINAL FLOW RATING: 40 GPM
- HORSEPOWER: 1.5 HP
- MAXIMUM CAPACITY: 70 GPM
- MAXIMUM HEAD: 140’
- STAGES: 5
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: 300 Series Stainless Steel
A.Y. McDonald 26000 G Series 40 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 26000 Series Stainless Steel Pump End Product Resources
Download A.Y. McDonald 26000 G Series Submittal Data Sheet
Download A.Y. McDonald 26000 Series Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
