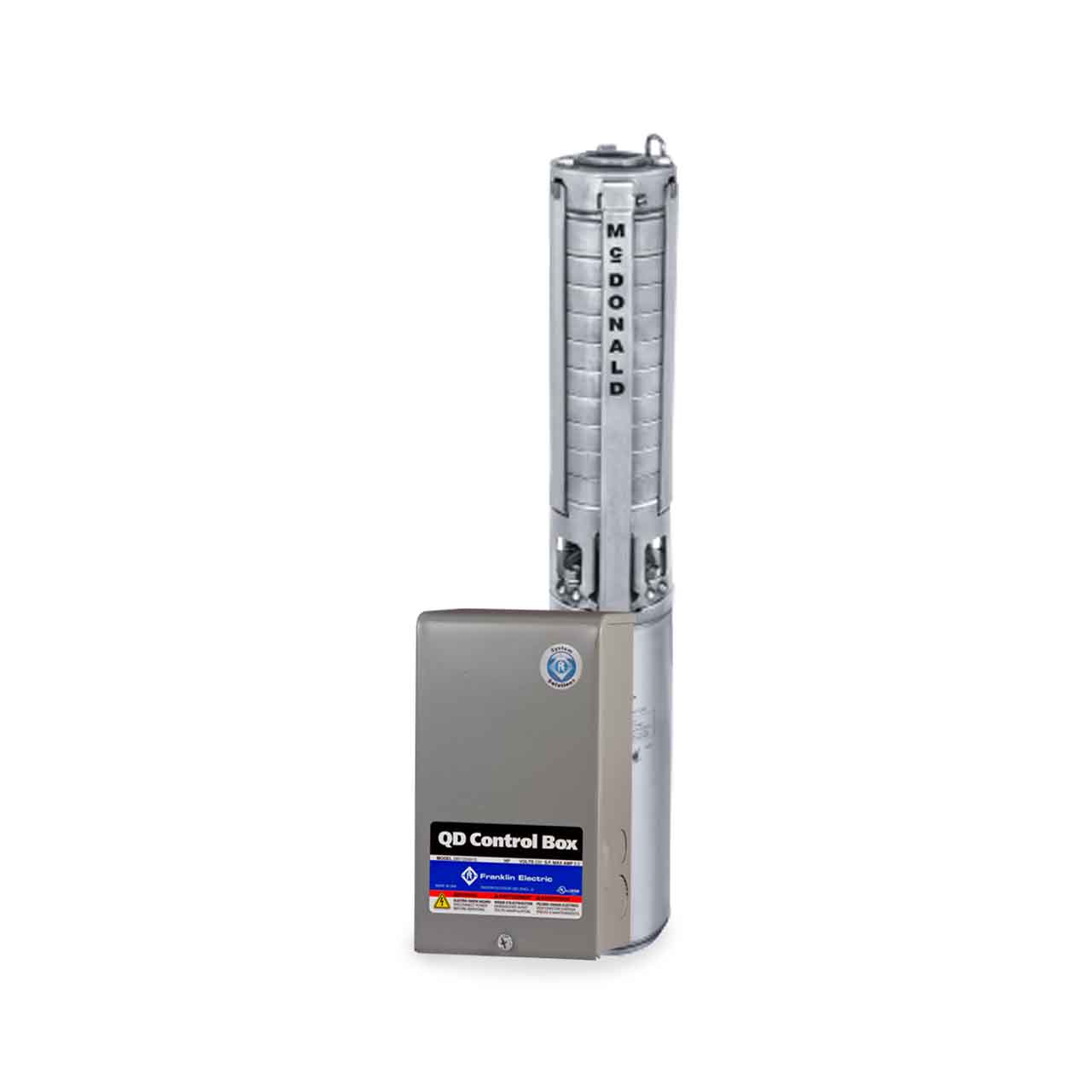

A.Y. McDonald 26050J3A Stainless Steel Pump & Motor 5 GPM 0.5 HP 115V 3-Wire Single-Phase w/Control Box
A.Y. McDonald 26050J3A Stainless Steel Pump & Motor 5 GPM 0.5 HP 115V 3-Wire Single-Phase w/Control Box
SKU : AYM26050J3A
In Stock Quantity:0
:
Brand
:
Regular price
$1,179.10 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of four-inch submersibles ranging from 1/2 through 10 horsepower, with flow rates ranging from 5 through 70 GPM. The 26000 Series stainless steel submersibles offer peak capacity performance in 5, 10, 18, 25, 40 and 70 GPM models. Other features include stainless steel discharge head with built-in check valve, stainless steel suction screen, and stainless steel shaft and coupling.
All J Series Stainless Steel Pumps come with 1-1/4” discharge and sizes range from 1/2 to 2 horsepower (HP).
A.Y. McDonald 26000 Series Stainless Steel Well Pump Features
- Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
- Stainless Steel Discharge Head with Built-in Check Valve
- Max. Ambient Temperature (Liquid): 140°F (60°C)
- High Quality Shaft Bearings
- Pumped Liquids: Clean, Non-Corrosive and Non-Abrasive Liquids
- Shaft is made of 431 Stainless Steel, All Other Metal Parts are Made of 304 Stainless Steel
- High-Efficiency Stainless Steel Impellers and Diffusers
- Stainless Steel Suction Screen and Strainer
- Specifications for Mounting are According to NEMA Standards
- Powered by A.Y. McDonald Motors
Specifications
Specifications
A.Y. McDonald 26050J3A Stainless Steel Submersible Well Pump Specifications
-
Water Well Motor
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 0.5 HP
- CABLE LENGTH: 5 1/2 ft.
- VOLTAGE: 1ø, 115V
- RPM: 3450
- SERVICE FACTOR: 1.6
- DOWNWARD THRUST (lbs): 500 lbs
- MAX AMBIENT TEMPERATURE: 95°F/35°C
- FULL LOAD AMPS: 10.0
- FLANGE: NEMA 4"
- MAX OPERATING DEPTH: 984 ft
- LEAD: 3-wire
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 5 GPM
- HORSEPOWER: 0.5 HP
- MAXIMUM CAPACITY: 8 GPM
- MAXIMUM HEAD: 356’
- STAGES: 13
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: 304 Series Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 140ºF (60ºC)
Water Well Pump End
A.Y. McDonald 26000 J Series Stainless Steel Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 26000 Series Stainless Steel Well Pump Product Resources
Download A.Y. McDonald 26000 J Series Submittal Data Sheet
Download A.Y. McDonald 26000 Series Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
Download A.Y. McDonald Pump Basics
