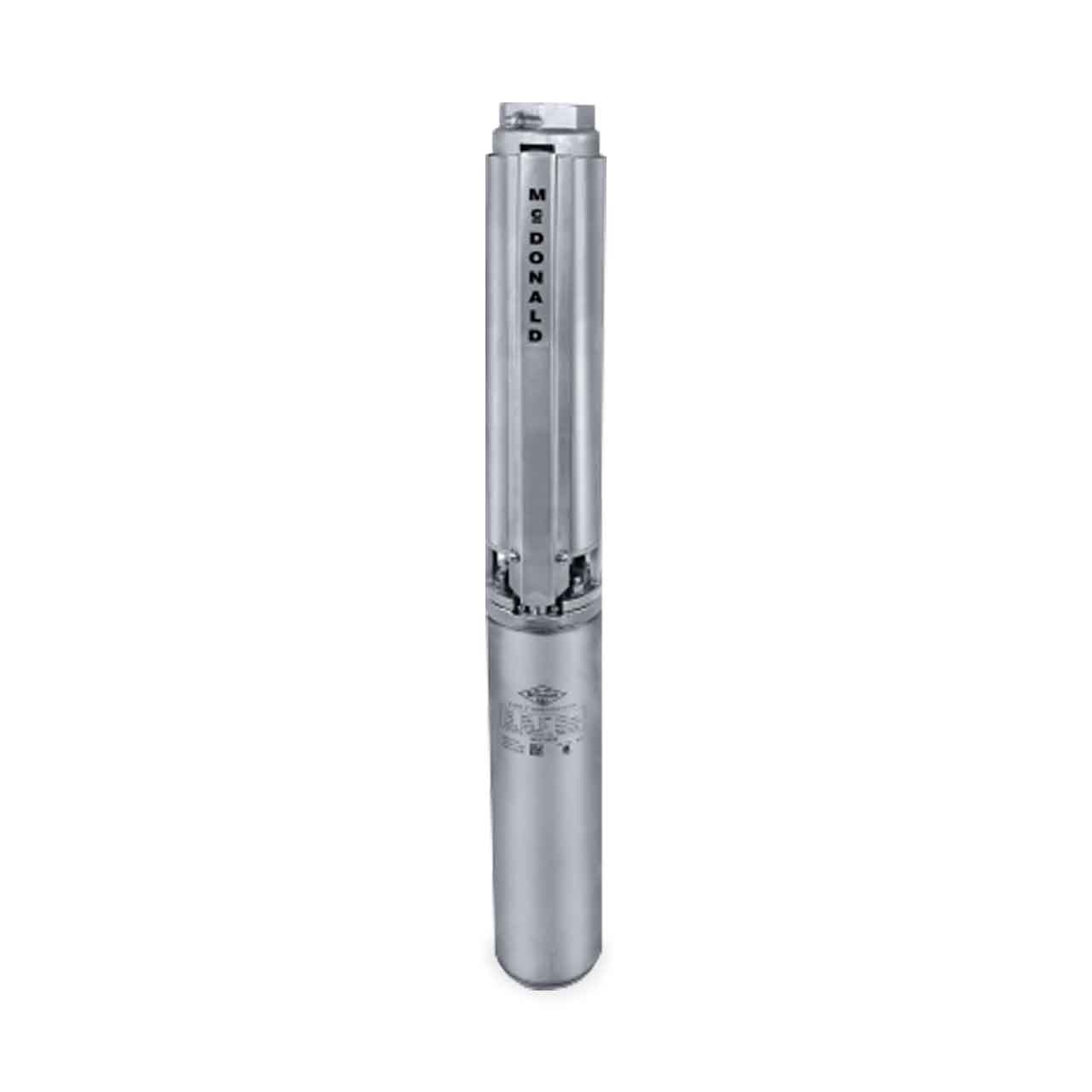

A.Y. McDonald 24500Q3ZLS High Flow SS Pump & Motor 60 GPM 5.0 HP 230V 3-Wire 3-Phase
A.Y. McDonald 24500Q3ZLS High Flow SS Pump & Motor 60 GPM 5.0 HP 230V 3-Wire 3-Phase
SKU : AYM24500Q3ZLS
In Stock Quantity:0
:
Brand
:
Regular price
$3,981.52 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of four inch submersibles ranging from 1 through 10 horsepower (HP), with flow rates ranging from 35 through 80 gallons per minute (GPM). The 24000 high flow submersibles offer peak capacity performance in 35, 40, 55, 60 and 80 gallons per minute (GPM) models.
All Q Series submersible pumps are designed to pump within the 60 GPM range. Sizes are available from 1-1/2 to 7-1/2 horsepower. All models are standard with 2.0" NPT discharge.
A.Y. McDonald 24000 Series Stainless Steel Well Pump Applications
- Residential and Commercial Submersible Deep Well Pumping Applications
- Reservoir
- Treatment System Dosing
A.Y. McDonald 24000 Series Stainless Steel Well Pump Features
- Powered by NEMA Approved A.Y. McDonald Stainless Steel Motor
- 2.0" NPT Threaded Discharge
- Stainless Steel Discharge Casting
- Built-In Stainless Steel Check Valve
- Floating Type Noryl Impellers
- Polycarbonate Diffusers
- Stainless Steel External Sleeve
- Stainless Steel Pump Shaft
- Stainless Steel Shaft Coupling
- Stainless Steel Inlet Strainer
- Stainless Steel Cable Guard
- Stainless Steel Motor Bracket
Specifications
Specifications
A.Y. McDonald 24500Q3ZLS High Flow Stainless Steel Submersible Pump Specifications
-
Water Well Motor
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 5.0 HP
- CABLE LENGTH: 8-3/4 ft.
- VOLTAGE: 3ø, 230V
- RPM: 3450
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 1500 lbs
- MAX AMBIENT TEMPERATURE: 95°F/35°C
- FULL LOAD AMPS: 17.8
- FLANGE: NEMA 4"
- MAX OPERATING DEPTH: 984 ft
- LEAD: 3-wire
- STARTER KIT REQUIRED
- DISCHARGE SIZE: 2.0” NPT
- NOMINAL FLOW RATING: 60 GPM
- HORSEPOWER: 5.0 HP
- MAXIMUM CAPACITY: 90 GPM
- MAXIMUM HEAD: 328’
- STAGES: 11
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Noryl
- BODY MATERIAL: 300 Series Stainless Steel
Water Well Pump End
A.Y. McDonald 24000 Q Series 60 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 24000 Series Well Pump Product Resources
Download A.Y. McDonald 24000 Q Series Submittal Data
Download A.Y. McDonald 24000 Series Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
Download A.Y. McDonald Pump Basics
