A.Y. McDonald offers a full line of four-inch submersibles ranging from 1/2 through 5 horsepower, with flow rates ranging from 5 through 25 GPM. The 24000 Series stainless steel submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.

All P Series Stainless Steel Submersible Pumps are designed to pump within the 20 gallons per minute (GPM) range. Sizes are available from 1/2 to 5 HP. All models are standard with 1-1/4” NPT discharge.

A.Y. McDonald 24000 Series Stainless Steel Well Pump Applications

• Residential and Commercial Submersible Deep Well Pumping Applications
• Reservoir
• Treatment System Dosing

A.Y. McDonald 24000 Series Stainless Steel Well Pump Features

• 1-1/4" NPT Thread
• Stainless Steel Discharge Casting
• Built-In Stainless Steel Check Valve
• Rubber Bearing
• Noryl® Impellers
• Stainless Steel Cable Guard
• Diffusers
• Stainless Steel Bowls
• Stainless Steel Pump Shaft
• Stainless Steel External Sleeve
• Motor Bracket Built to NEMA Dimensional Standards in Stainless Steel
• Stainless Steel Motor Coupling

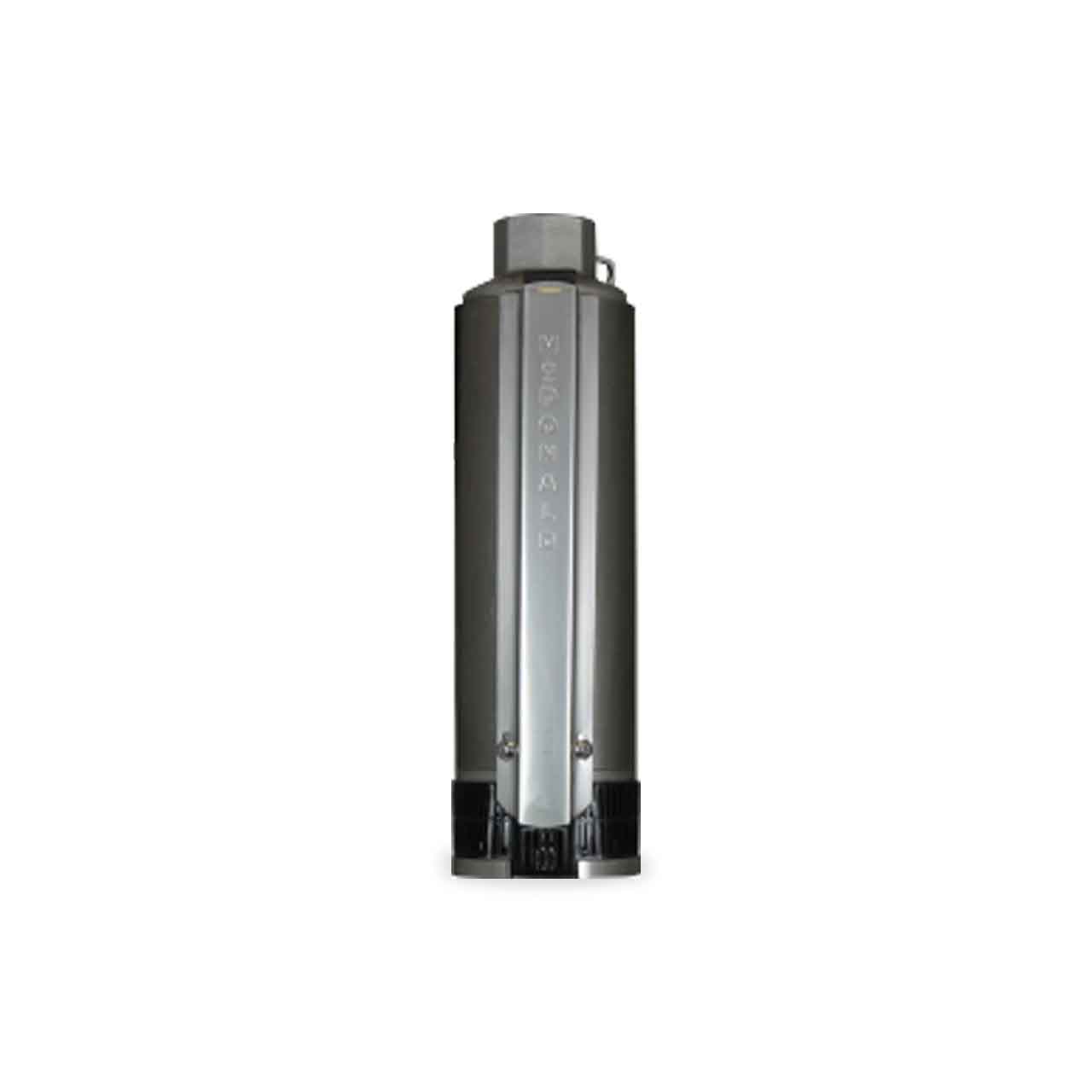

A.Y. McDonald 24500P Stainless Steel Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 20 GPM
• HORSEPOWER: 5.0 HP
• MAXIMUM CAPACITY: 33 GPM
• MAXIMUM HEAD: 925’
• STAGES: 30
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Noryl
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 24000 P Series Stainless Steel Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 24000 Series Stainless Steel Well Pump Product Resources

Download A.Y. McDonald 24000 P Series Submittal Data Sheet

Download A.Y. McDonald 24000 Series Stainless Steel Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting
