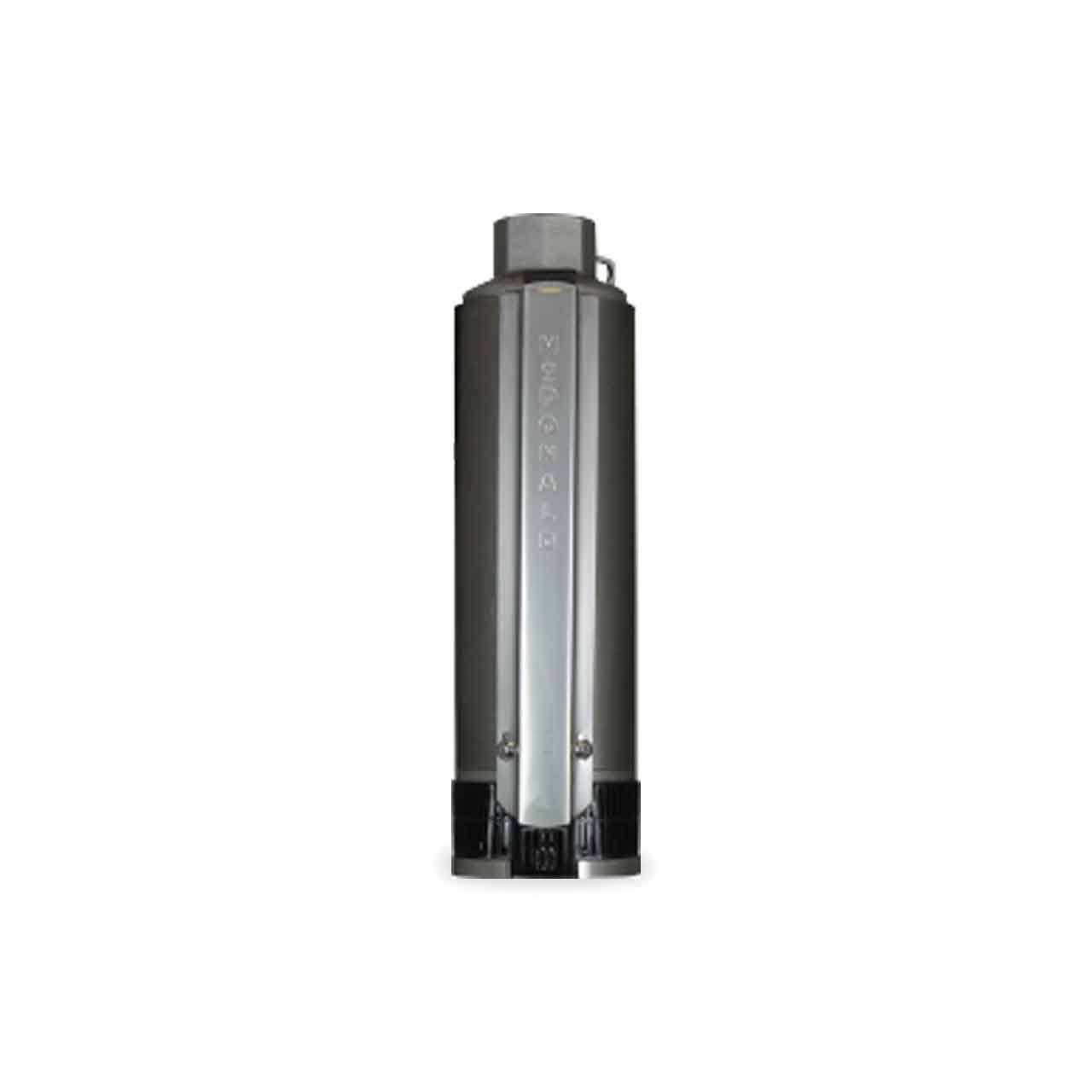

A.Y. McDonald 24500K Stainless Steel Pump End Only 10 GPM 5.0 HP
A.Y. McDonald 24500K Stainless Steel Pump End Only 10 GPM 5.0 HP
SKU : AYM24500K
In Stock Quantity:0
:
Brand
:
Regular price
$1,820.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of four-inch submersibles ranging from 1/2 through 5 horsepower, with flow rates ranging from 5 through 25 GPM. The 24000 Series stainless steel submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.
All K Series Stainless Steel Submersible Pumps are designed to pump within the 10 GPM. Sizes are available from 1/2 to 5 HP. All models are standard with 1-1/4" NPT discharge.
A.Y. McDonald 24000 Series Stainless Steel Well Pump Applications
- Residential and Commercial Submersible Deep Well Pumping Applications
- Reservoir
- Treatment System Dosing
A.Y. McDonald 24000 Series Stainless Steel Well Pump Features
- 1-1/4" NPT Thread
- Stainless Steel Discharge Casting
- Built-In Stainless Steel Check Valve
- Rubber Bearing
- Noryl® Impellers
- Stainless Steel Cable Guard
- Diffusers
- Stainless Steel Bowls
- Stainless Steel Pump Shaft
- Stainless Steel External Sleeve
- Motor Bracket Built to NEMA Dimensional Standards in Stainless Steel
- Stainless Steel Motor Coupling
Specifications
Specifications
A.Y. McDonald 24500K Stainless Steel Pump End Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 10 GPM
- HORSEPOWER: 5.0 HP
- MAXIMUM CAPACITY: 20 GPM
- MAXIMUM HEAD: 1340’
- STAGES: 42
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Noryl
- BODY MATERIAL: 300 Series Stainless Steel
A.Y. McDonald 24000 K Series Stainless Steel Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 24000 Series Stainless Steel Well Pump Product Resources
Download A.Y. McDonald 24000 K Series Submittal Data Sheet
Download A.Y. McDonald 24000 Series Stainless Steel Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
