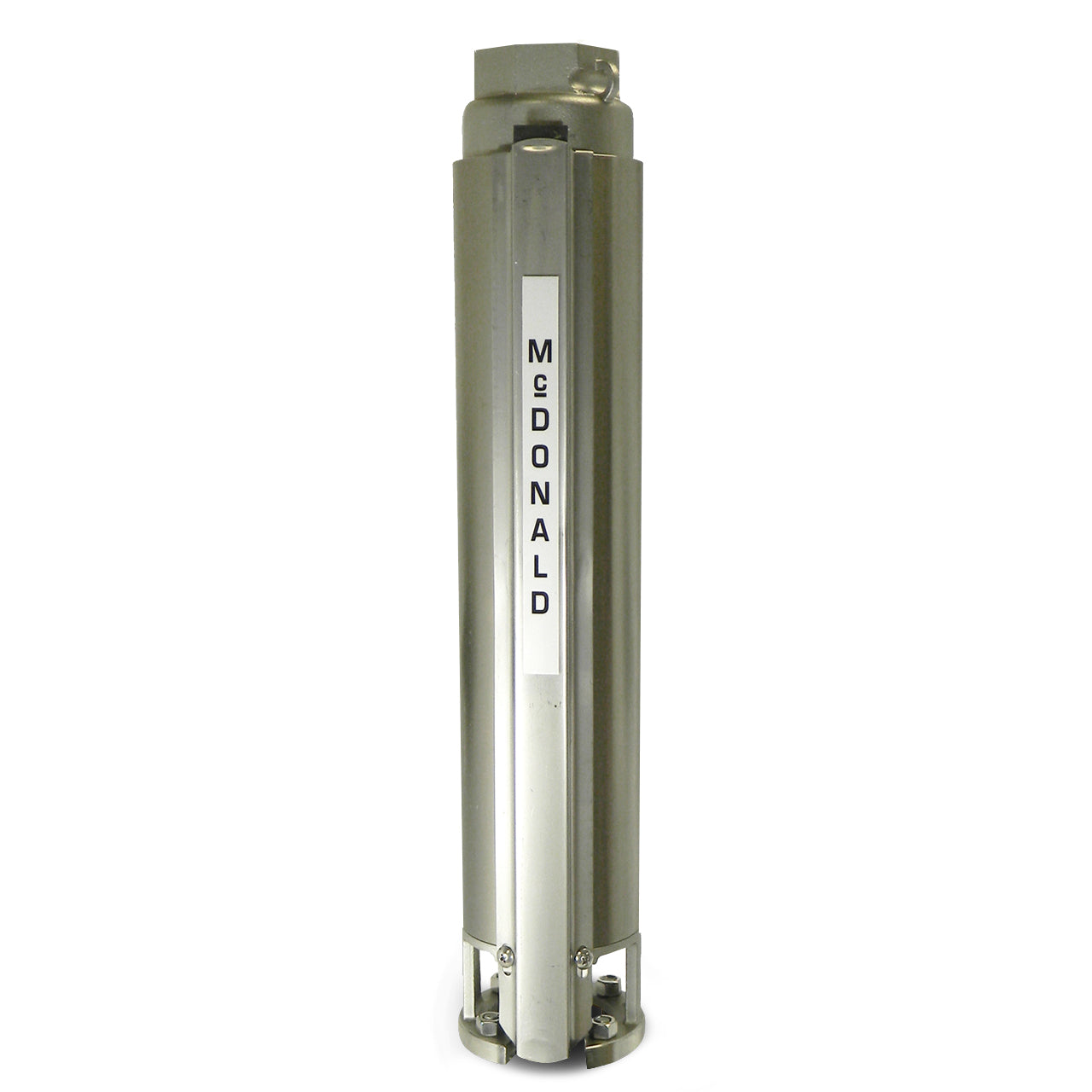

A.Y. McDonald 24300Q High Flow SS Pump End Only 60 GPM 3.0 HP
A.Y. McDonald 24300Q High Flow SS Pump End Only 60 GPM 3.0 HP
SKU : AYM24300Q
In Stock Quantity:1
:
Brand
:
Regular price
$1,695.84 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of four inch submersibles ranging from 1 through 10 horsepower (HP), with flow rates ranging from 35 through 80 gallons per minute (GPM). The 24000 high flow submersibles offer peak capacity performance in 35, 40, 55, 60, and 80 GPM models.
All Q Series submersible pumps are designed to pump within the 60 GPM range. Sizes are available from 1-1/2 to 7-1/2 horsepower. All models are standard with 2.0" NPT discharge.
A.Y. McDonald 24000 Series Thermoplastic Pump End Features
- 2" NPT Thread
- Stainless Steel Discharge Casting
- Built-In Stainless Steel Check Valve
- Polyacetal Bearing
- Noryl® Impellers
- Stainless Steel Cable Guard
- Diffusers
- Stainless Steel Bowls
- Stainless Steel Pump Shaft
- Stainless Steel External Sleeve
- Motor Bracket Built to NEMA Dimensional Standards in Stainless Steel
- Stainless Steel Motor Coupling
Specifications
Specifications
A.Y. McDonald 24300Q Stainless Steel Pump End Specifications
- DISCHARGE SIZE: 2.0” NPT
- NOMINAL FLOW RATING: 60 GPM
- HORSEPOWER: 3.0 HP
- MAXIMUM CAPACITY: 90 GPM
- MAXIMUM HEAD: 210’
- STAGES: 7
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Noryl
- BODY MATERIAL: 300 Series Stainless Steel
A.Y. McDonald 24000 Q Series 60 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 24000 Series Well Pump Product Resources
Download A.Y. McDonald 24000 Q Series Submittal Data
Download A.Y. McDonald 24000 Series Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
