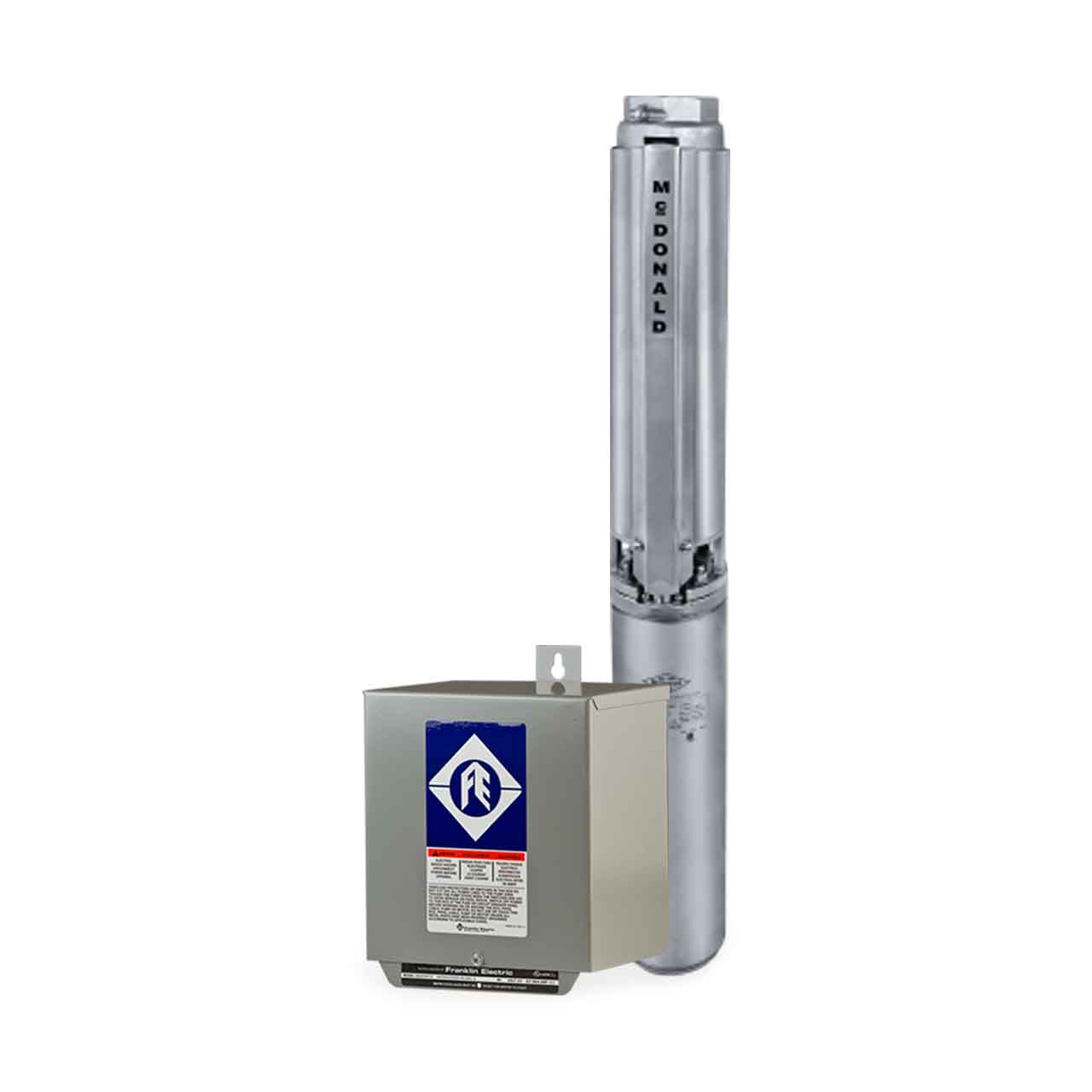

A.Y. McDonald 24200S3Z High Flow SS Pump Motor & Starter 55 GPM 2.0 HP 230V 3-Wire 3-Phase

A.Y. McDonald 24200S3Z High Flow SS Pump Motor & Starter 55 GPM 2.0 HP 230V 3-Wire 3-Phase

Usually ships within 2 weeks

SKU : AYM24200S3Z

In Stock Quantity:0

:
Brand : A.Y. McDonald Mfg. Co.
$3,304.60 USD
Shipping calculated at checkout.

Description


A.Y. McDonald offers a full line of four inch submersibles ranging from 1 through 10 horsepower (HP), with flow rates ranging from 35 through 80 gallons per minute (GPM). The 24000 high flow submersibles offer peak capacity performance in 35, 40, 55, 60, and 80 GPM models.

All S Series submersible pumps are designed to pump within the 55 GPM range. Sizes are available from 1-1/2 to 10 horsepower. All models are standard with 2.0" NPT discharge.

A.Y. McDonald 24000 Series Stainless Steel Well Pump Applications

  • Residential and Commercial Submersible Deep Well Pumping Applications
  • Reservoir
  • Treatment System Dosing

A.Y. McDonald 24000 Series Stainless Steel Well Pump Features

  • Powered by NEMA Approved A.Y. McDonald Stainless Steel Motor
  • 2.0" NPT Threaded Discharge
  • Stainless Steel Discharge Casting
  • Built-In Stainless Steel Check Valve
  • Floating Type Noryl Impellers
  • Polycarbonate Diffusers
  • Stainless Steel External Sleeve
  • Stainless Steel Pump Shaft
  • Stainless Steel Shaft Coupling
  • Stainless Steel Inlet Strainer
  • Stainless Steel Cable Guard
  • Stainless Steel Motor Bracket

Specifications

A.Y. McDonald 24200S3Z Stainless Steel Well Pump Specifications

    Water Well Motor
  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 2.0 HP
  • CABLE LENGTH: 5-1/2 ft.
  • VOLTAGE: 3ø, 230V
  • RPM: 3450
  • SERVICE FACTOR: 1.15
  • DOWNWARD THRUST (lbs): 700 lbs
  • MAX AMBIENT TEMPERATURE: 95°F/35°C
  • FULL LOAD AMPS: 9.2
  • FLANGE: NEMA 4"
  • MAX OPERATING DEPTH: 984 ft
  • LEAD: 3-wire

    • Water Well Pump End
  • DISCHARGE SIZE: 2.0” NPT
  • NOMINAL FLOW RATING: 55 GPM
  • HORSEPOWER: 2.0 HP
  • MAXIMUM CAPACITY: 80 GPM
  • MAXIMUM HEAD: 194’
  • STAGES: 7
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Noryl
  • BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 24000 S Series 55 GPM Well Pump Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

A.Y. McDonald 24000 S Series Well Pump Product Resources


Download A.Y. McDonald 24000 S Series Submittal Data

Download A.Y. McDonald 24000 Series Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting

Download A.Y. McDonald Submersible Motors IOM Manual
