A.Y. McDonald offers a full line of four-inch submersibles ranging from 1/2 through 5 horsepower, with flow rates ranging from 5 through 25 GPM. The 24000 Series stainless steel submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.

All K Series Stainless Steel Submersible Pumps are designed to pump within the 10 GPM. Sizes are available from 1/2 to 5 HP. All models are standard with 1-1/4" NPT discharge.

A.Y. McDonald 24000 Series Stainless Steel Well Pump Applications

• Residential and Commercial Submersible Deep Well Pumping Applications
• Reservoir
• Treatment System Dosing

A.Y. McDonald 24000 Series Stainless Steel Well Pump Features

• Powered by NEMA Approved A.Y. McDonald Stainless Steel Motor
• Single Phase Motors Include Built-In Lightning Protection
• 300 Series Stainless Steel Corrosion Resistant Discharge, Easy Wrench Design, Built in Safety Eye, Threads Into Shell
• Built-In Stainless Steel Check Valve
• Durable Polycarbonate Diffuser. Corrosion and Abrasion Resistant and Designed for Efficient Performance and Superior Sand Handling Capability
• Floating Type Noryl Impellers
• Stainless Steel Cable Guard Protect Motor Leads. Angled Top Helps Keep Leads Stationary When Lowering and Raising Submersible Pump
• Rubber Discharge Bearing Surrounding the Stainless Steel Shaft Provides Superior Wear Resistance Against the Harshest Conditions
• The Captured Time-Proven Stack Design Incorporates Sand Notches into the Diffusers, Which has Proven, Over Time, to Keep Sand Flowing Thru the Stack
• One Piece Replacement Impeller Stack Cartridge Design Simplifies Field Service
• Heavy Stainless Steel Shell Threaded at Both Ends for Easy Field Service
• 304 Stainless Steel Pump Shaft
• Motor Bracket Built to NEMA Dimensional Standards in Stainless Steel
• Each Pump is Assembled and Then Individually Tested to Assure Performance Within Design Specifications
• Each Pump is Stamped with the Tester's "Signature" Marking to Assure Quality Control

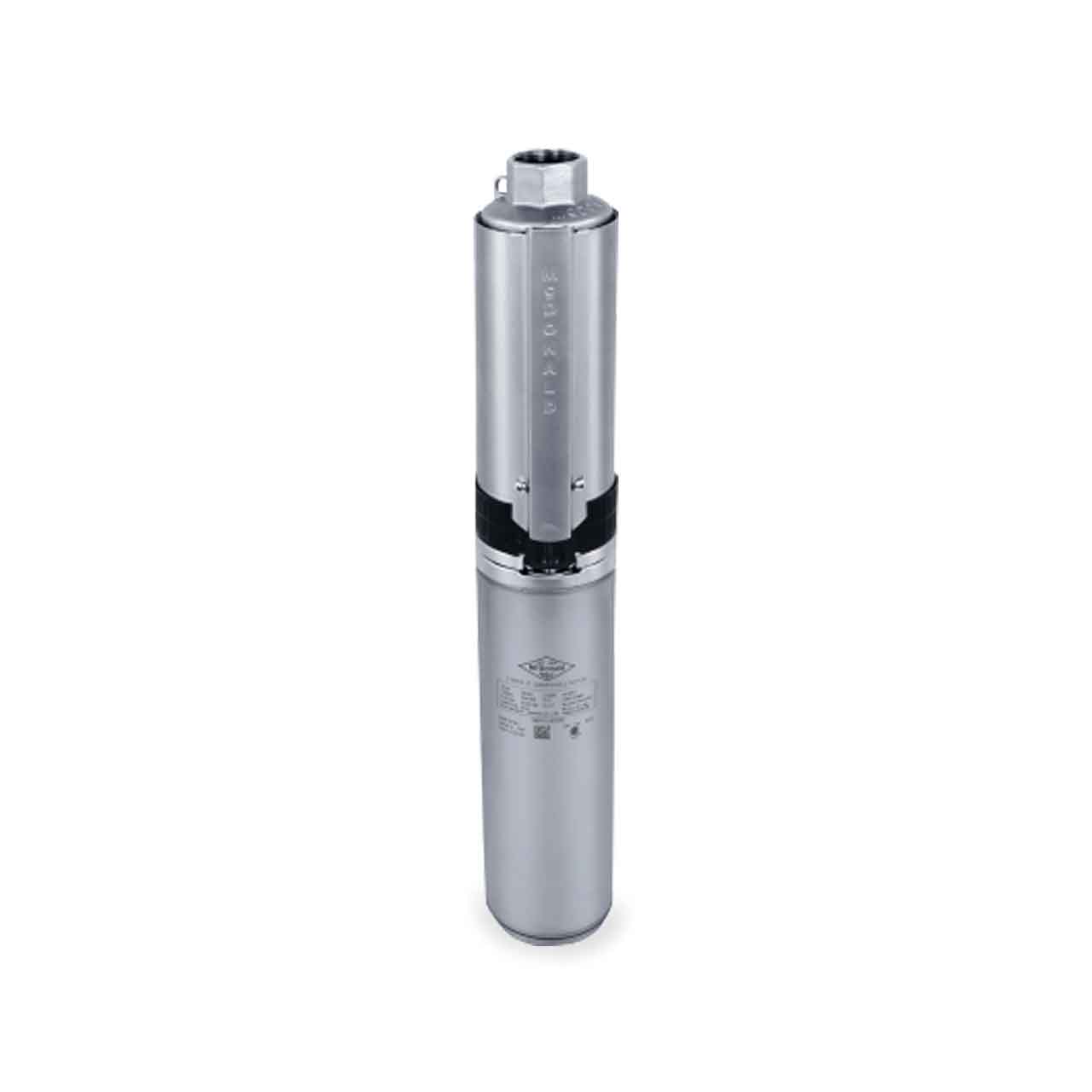

A.Y. McDonald 24100K2 Stainless Steel Well Pump Specifications

Water Well Motor

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 1.0 HP
• CABLE LENGTH: 5-1/2 ft.
• VOLTAGE: 1ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.4
• DOWNWARD THRUST (lbs): 700 lbs
• MAX AMBIENT TEMPERATURE: 95°F/35°C
• FULL LOAD AMPS: 7.7
• FLANGE: NEMA 4"
• MAX OPERATING DEPTH: 984 ft
• LEAD: 2-wire

Water Well Pump End

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 10 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 20.0 GPM
• MAXIMUM HEAD: 379’
• STAGES: 12
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Noryl
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 24000 K Series Stainless Steel Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 24000 Series Stainless Steel Well Pump Product Resources

Download A.Y. McDonald 24000 K Series Submittal Data Sheet

Download A.Y. McDonald 24000 Series Stainless Steel Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting

Download A.Y. McDonald Submersible Motors IOM Manual
