A.Y. McDonald offers a full line of four-inch submersibles ranging from 1/2 through 5 horsepower, with flow rates ranging from 5 through 25 GPM. The 24000 Series stainless steel submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.

All J Series Stainless Steel Submersible Pumps are designed to pump within the 5 GPM range. Sizes are available  from 1/2 to 1-1/2 HP. All models are standard with 1-1/4 " NPT Discharge.

A.Y. McDonald 24000 Series Stainless Steel Well Pump Applications

• Residential and Commercial Submersible Deep Well Pumping Applications
• Reservoir
• Treatment System Dosing

A.Y. McDonald 24000 Series Stainless Steel Well Pump Features

• Powered by NEMA Approved A.Y. McDonald Stainless Steel Motors.
• Single Phase Motors Include Built-In Lightning Protection
• 300 Series Stainless Steel Corrosion Resistant Discharge, Easy Wrench Design, Built in Safety Eye, Threads Into Shell
• Built-In Stainless Steel Check Valve
• Durable Polycarbonate Diffuser. Corrosion and Abrasion Resistant and Designed for Efficient Performance and Superior Sand Handling Capability
• Floating Type Noryl Impellers
• Stainless Steel Cable Guard Protect Motor Leads. Angled Top Helps Keep Leads Stationary When Lowering and Raising Submersible Pump
• Rubber Discharge Bearing Surrounding the Stainless Steel Shaft Provides Superior Wear Resistance Against the Harshest Conditions
• The Captured Time-Proven Stack Design Incorporates Sand Notches into the Diffusers, Which has Proven, Over Time, to Keep Sand Flowing Thru the Stack
• One Piece Replacement Impeller Stack Cartridge Design Simplifies Field Service
• Heavy Stainless Steel Shell Threaded at Both Ends for Easy Field Service
• 304 Stainless Steel Pump Shaft
• Motor Bracket Built to NEMA Dimensional Standards in Stainless Steel
• Each Pump is Assembled and Then Individually Tested to Assure Performance Within Design Specifications
• Each Pump is Stamped with the Tester's "Signature" Marking to Assure Quality Control

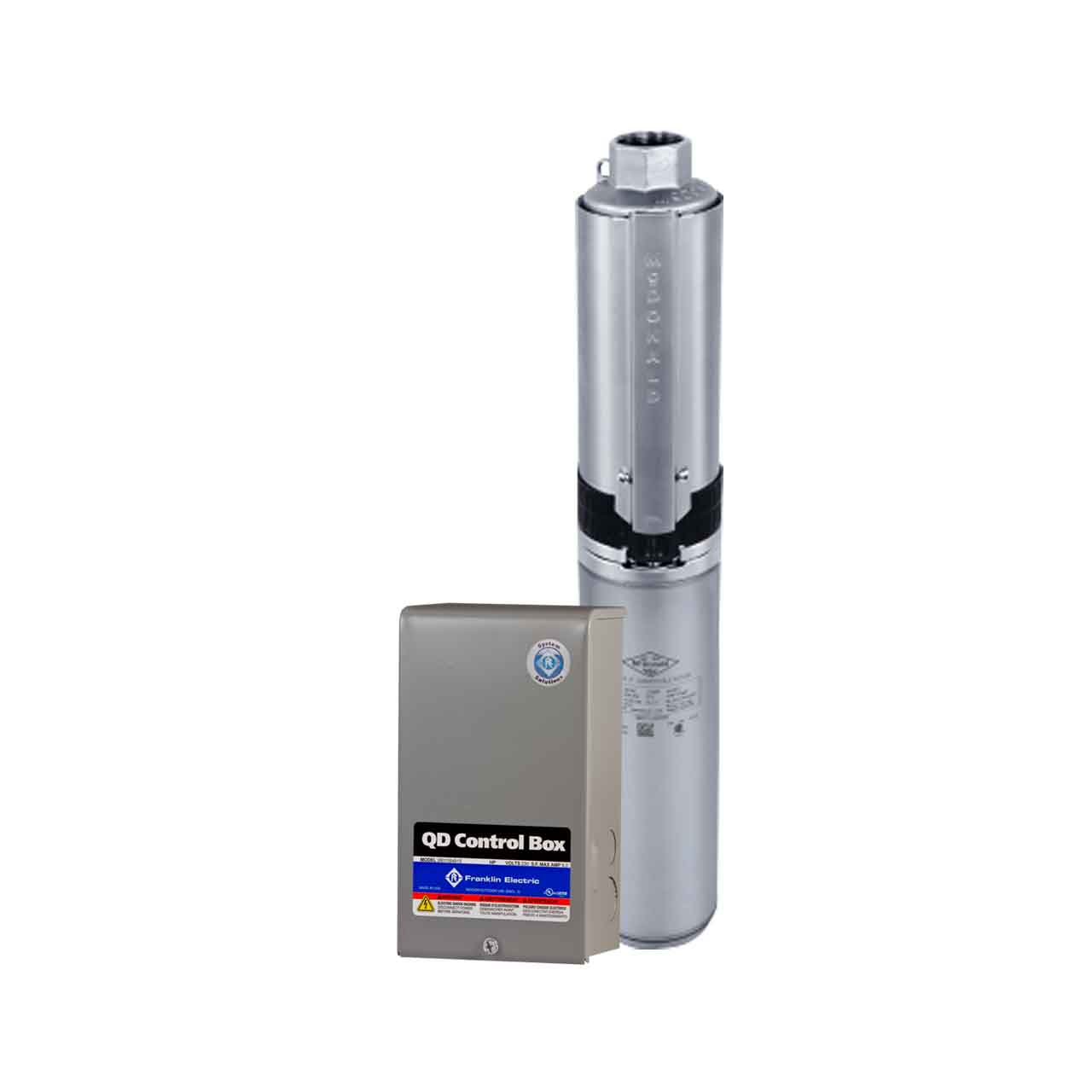

A.Y. McDonald 24100J3 Stainless Steel Well Pump Specifications

Water Well Motor

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 1.0 HP
• CABLE LENGTH: 5 1/2 ft.
• VOLTAGE: 1ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.4
• DOWNWARD THRUST (lbs): 700 lbs
• MAX AMBIENT TEMPERATURE: 95°F/35°C
• FULL LOAD AMPS: 8.3
• FLANGE: NEMA 4"
• MAX OPERATING DEPTH: 984 ft
• LEAD: 3-wire

Water Well Pump End

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 5 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 8.5 GPM
• MAXIMUM HEAD: 641’
• STAGES: 20
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 24000 J Series Stainless Steel Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 24000 Series Stainless Steel Well Pump Product Resources

Download A.Y. McDonald 24000 J Series Submittal Data Sheet

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting

Download A.Y. McDonald Submersible Motors IOM Manual
