A.Y. McDonald AutoPAC 24000 Series Pump Motor and Control Features

• CONSTANT PRESSURE: Reduced Tank Size and Quick & Simple Installation
• EASY SETUP: Setup Constant Pressure in 5 Steps or Less
• LARGE GRAPHIC DISPLAY: Bright Backlit Screen and Visible in Direct Sunlight
• RUGGED & COMPACT: NEMA 3R Steel Enclosure and Rated to 122°F, (104°F for SD3-5HP2)
• FEATURE SET | POWER BEHIND THE PUMP - Feature Set Provides Complete Control Capability for all Pumping Applications
• AUTOPAC ENCLOSURE:
• Rugged NEMA 3R Enclosure Designed for Extreme Weather
• Large Graphic Display with Bright Screen & Intuitive Interface
• Steel Enclosure with Powder Coated Finish
• Protective Insect Guards & Pre-Cut Conduit Openings
• Three Wire Single Phase with Transducer

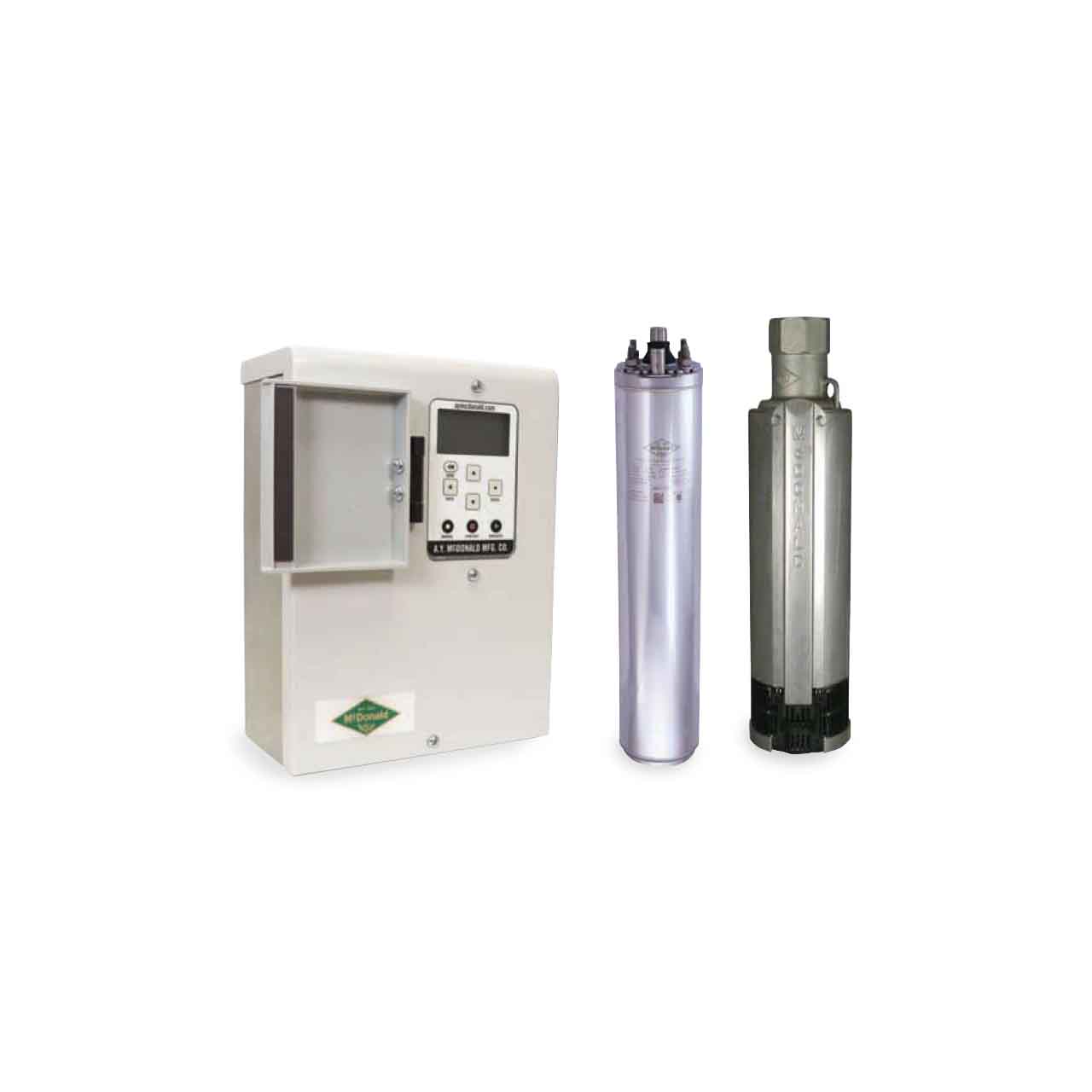

A.Y. McDonald AutoPAC 24075J3-APT Pump Specifications

Water Well Motor

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 0.75 HP
• CABLE LENGTH: 5-1/2 ft.
• VOLTAGE: 1ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.5
• DOWNWARD THRUST (lbs): 500 lbs
• MAX AMBIENT TEMPERATURE: 95°F/35°C
• FULL LOAD AMPS: 7.4
• FLANGE: NEMA 4"
• MAX OPERATING DEPTH: 984 ft
• LEAD: 3-wire

Water Well Pump End

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 5 GPM
• HORSEPOWER: 0.75 HP
• MAXIMUM CAPACITY: 8.5 GPM
• MAXIMUM HEAD: 481’
• STAGES: 15
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald AutoPAC 24000 Series Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald AutoPAC 24000 Series Product Resources

Download A.Y. McDonald AutoPAC 24000 Series Submittal Data Sheet

Download A.Y. McDonald AutoPAC 24000 Series Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald AutoDrive Manual

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting

Download A.Y. McDonald Submersible Motors IOM Manual
