Discontinued

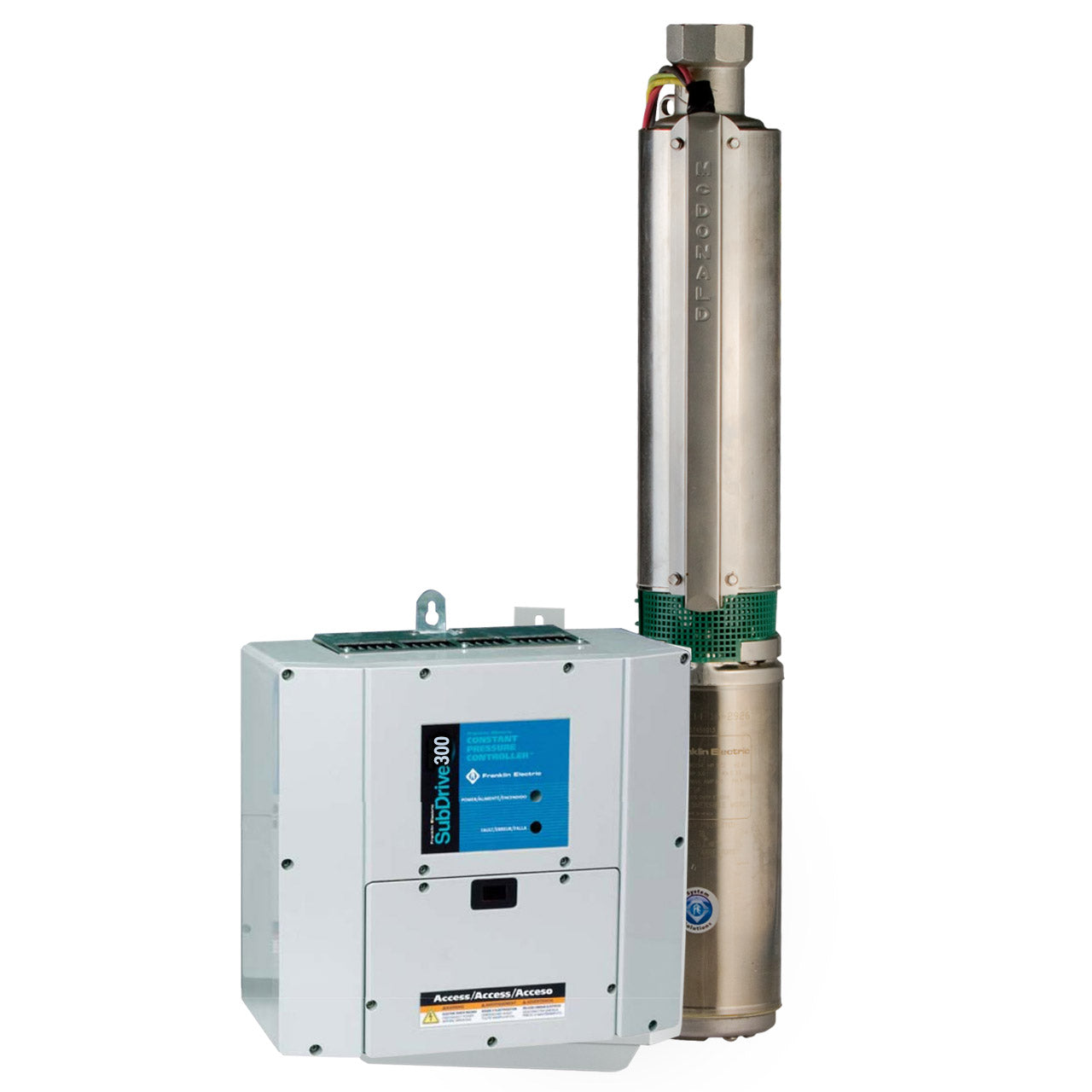

A.Y. McDonald SubDrive 300 E-Z PAC

The A.Y. McDonald SubDrive 300 E-Z PAC includes an A.Y. McDonald 3 HP pump end (stainless steel and bronze models are available), a Franklin Electric 5 HP 230V 3-phase motor, and a Franklin Electric SubDrive 300 constant pressure controller. The SubDrive 300 controller provides constant water pressure using state of the art electronics to drive and enhance the performance of a standard submersible pump. The pressure in a well system is monitored and regulated by the pressure sensor to continually adjust the pump motor speed to meet water supply demands. It eliminates the pressure cycling associated with a conventional well system. SubDrive can deliver dependable constant pressure to provide water well owners with a premium water system.

A.Y. McDonald SubDrive 300 E-Z PAC Applications

SubDrive 300 constant pressure controller is designed for use with a McDonald 3 HP pump end mounted to a 5 HP, 230 volt Franklin Electric three phase motor. Using single-phase input, this innovative variable speed controller can be used to provide constant pressure in applications with a wide range of flow demand including large homes, ground source heat pumps, and sprinkler systems. Also designed to handle high capacities, SubDrive 300 is perfect for larger applications where constant pressure is essential: commercial landscaping, small livestock operations, nurseries, even some rare residential applications.

A.Y. McDonald SubDrive 300 E-Z PAC Features

• Constant water pressure with a wide range of settings (25-80 psi)
• Works with a standard pump mounted to a three-phase Franklin Electric submersible motor
• Nema 4 enclosure
• Smaller pressure tank or existing tank can be used
• Three-phase performance with single phase input
• Soft start means less stress and longer life on motor
• Smart Reset technology allows well recovery before restarting the pump
• Built in protection and diagnostics
• Surge protection
• Dry well conditions
• Underload
• Undervoltage
• Locked pump
• Open circuit
• Short circuit
• Overheated controller
• Controllers are UL & cUL recognized for U.S.A. and Canada

A.Y. McDonald SubDrive 300 E-Z PAC Performance Curves
