A.Y. McDonald offers a full line of four-inch submersibles ranging from 1/3 through 5 horsepower, with flow rates ranging from 5 through 25 GPM. The 23000 Series stainless steel submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.

All K Series Stainless Steel Pumps come with 1-1/4" discharge and sizes range from 1/3 to 5 horsepower (HP). Two wire models up to 1-1/2 and three wire models up to 5 horsepower (HP).

A.Y. McDonald 23000 Series Stainless Steel Well Pump Applications

• Residential and Commercial Submersible Deep Well Pumping Applications
• Reservoir
• Treatment System Dosing

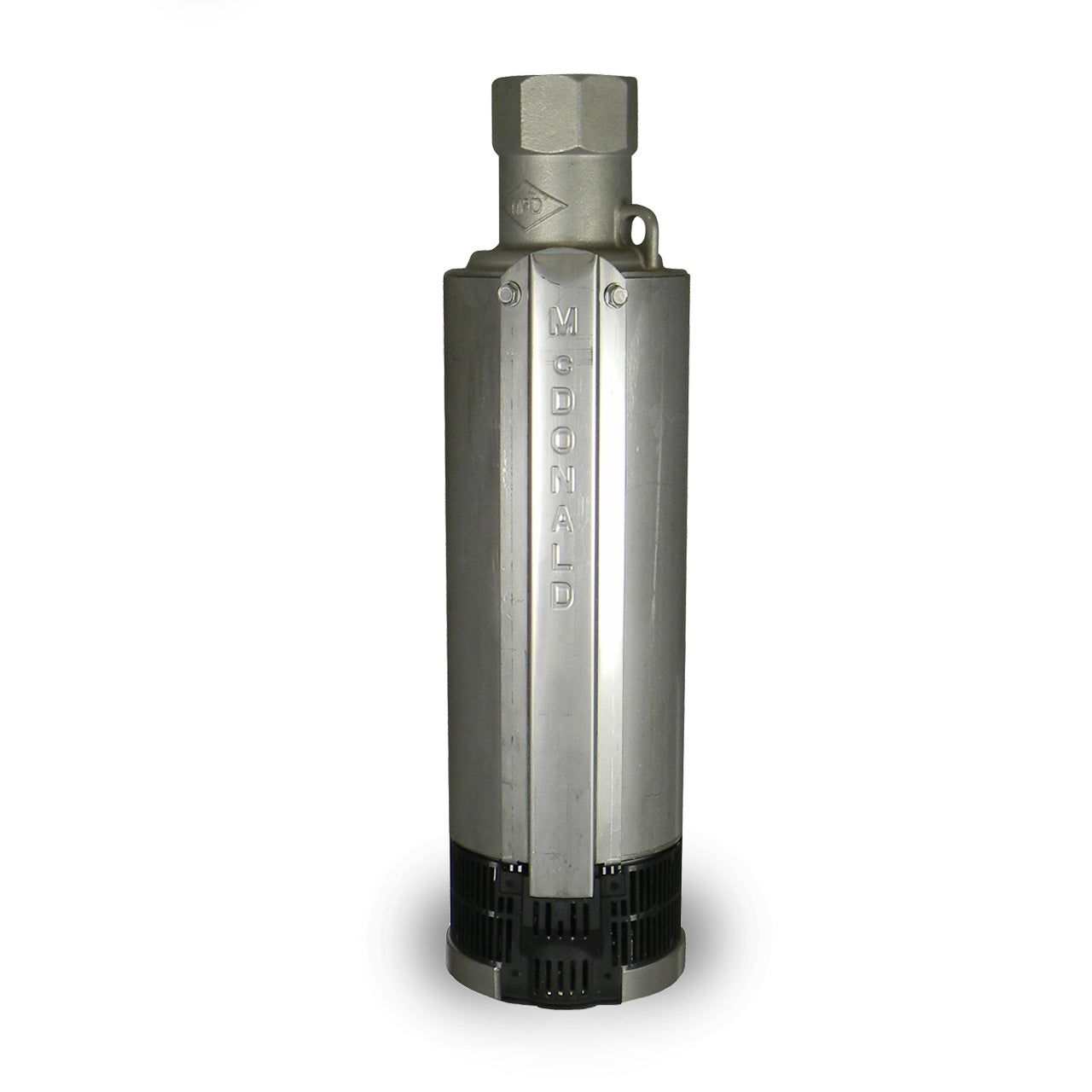

A.Y. McDonald 23150K Stainless Steel Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 10 GPM
• HORSEPOWER: 1.5 HP
• MAXIMUM CAPACITY: 21.5 GPM
• MAXIMUM HEAD: 591’
• STAGES: 16
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 23000 K Series Stainless Steel Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 23000 Series Stainless Steel Well Pump Product Resources

Download A.Y. McDonald 23000 K Series Submittal Data Sheet

Download A.Y. McDonald 23000 Series Stainless Steel Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting
