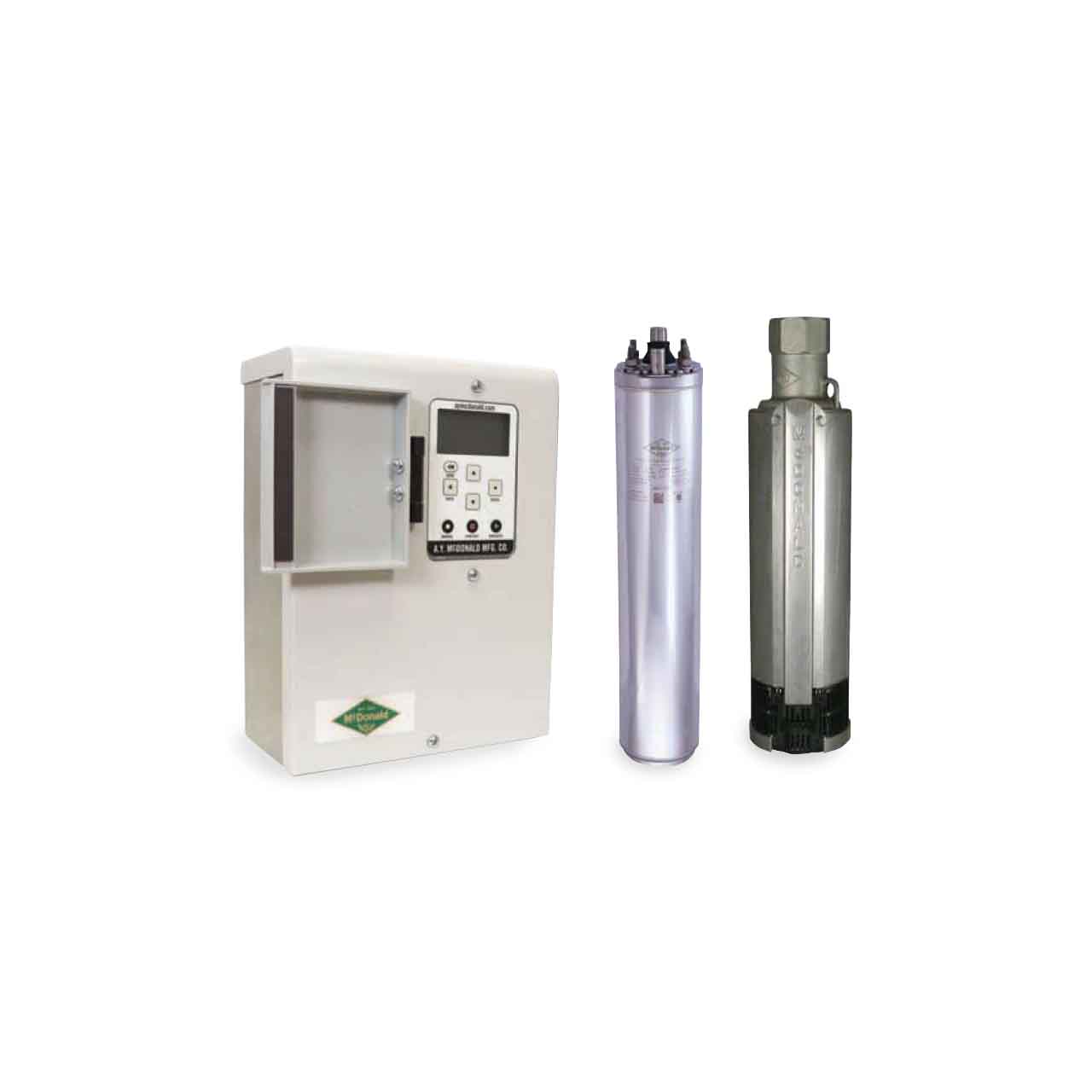

A.Y. McDonald AutoPAC 23000 Series Pump Motor and Control Features

• CONSTANT PRESSURE: Reduced Tank Size and Quick & Simple Installation
• EASY SETUP: Setup Constant Pressure in 5 Steps or Less
• LARGE GRAPHIC DISPLAY: Bright Backlit Screen and Visible in Direct Sunlight
• RUGGED & COMPACT: NEMA 3R Steel Enclosure and Rated to 122°F, (104°F for SD3-5HP2)
• FEATURE SET | POWER BEHIND THE PUMP - Feature Set Provides Complete Control Capability for all Pumping Applications
• AUTOPAC ENCLOSURE:
• Rugged NEMA 3R Enclosure Designed for Extreme Weather
• Large Graphic Display with Bright Screen & Intuitive Interface
• Steel Enclosure with Powder Coated Finish
• Protective Insect Guards & Pre-Cut Conduit Openings
• Two Wire Single Phase with Transducer

A.Y. McDonald AutoPAC 23050J2-APT Pump Specifications

Water Well Motor

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 0.5 HP
• CABLE LENGTH: 5-1/2 ft.
• VOLTAGE: 1ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.6
• DOWNWARD THRUST (lbs): 500 lbs
• MAX AMBIENT TEMPERATURE: 95°F/35°C
• FULL LOAD AMPS: 3.9
• FLANGE: NEMA 4"
• MAX OPERATING DEPTH: 984 ft
• LEAD: 2-wire

Water Well Pump End

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 5 GPM
• HORSEPOWER: 0.5 HP
• MAXIMUM CAPACITY: 12.5 GPM
• MAXIMUM HEAD: 361’
• STAGES: 13
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald AutoPAC 23000 Series Pump Curve
