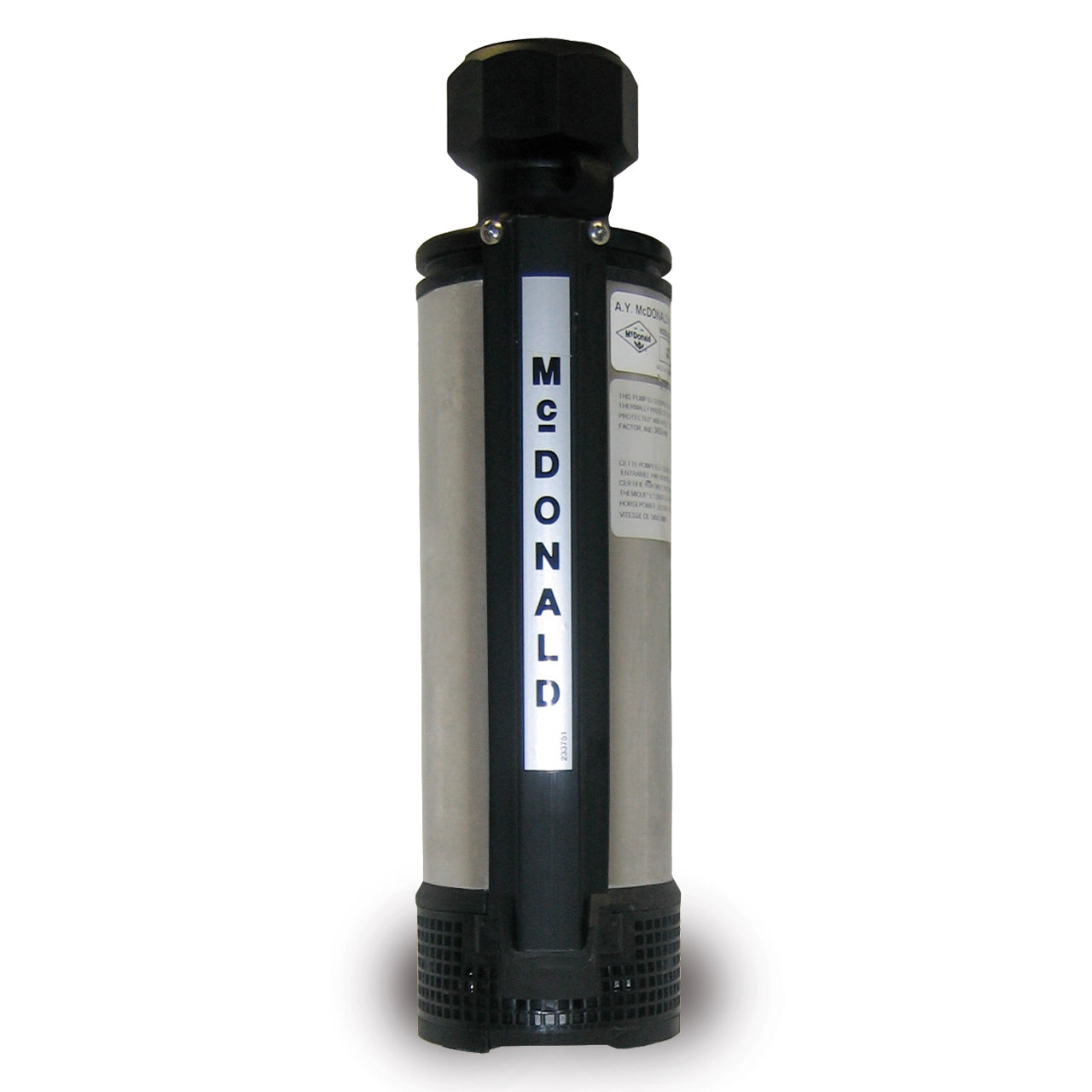

A.Y. McDonald 22100L Thermoplastic Well Pump End Only 15 GPM 1.0 HP
A.Y. McDonald 22100L Thermoplastic Well Pump End Only 15 GPM 1.0 HP
SKU : AYM22100L
In Stock Quantity:0
:
Brand
:
Regular price
$619.45 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of four inch submersibles ranging from 1/3 through 1-1/2 horsepower (HP), with flow rates ranging from 5 through 25 gallons per minute (GPM). The 22000 Series submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.
All L Series Thermoplastic pumps have a 1-1/4" discharge with internal check valve and sizes range from 1/2 to 1-1/2 horsepower (HP). Two or three wire models up to 1/1/2 horsepower (HP).
A.Y. McDonald 2200 Series Thermoplastic Pump End Specifications
- Sizes - 1/2, 3/4, 1 and 1-1/2 HP
- Reinforced Thermoplastic Motor Bracket and Discharge with Built-In Guide Bearing
- 300 Series Stainless Steel Motor Coupling
- Stainless Steel Pump Shell
- Thermoplastic Diffusers
- Thermoplastic Impellers
- Stainless Steel Pump Shaft
- Internal, Anti-Spin Check Valve Standard
- Thermoplastic Intake Screen and Cable Guard
- 1-1/4" FNPT Discharge
- Standard is 230V, Single Phase, 60 Hz
Specifications
Specifications
A.Y. McDonald 22100L Thermoplastic Pump End Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 15 GPM
- HORSEPOWER: 1.0 HP
- MAXIMUM CAPACITY: 28.5 GPM
- MAXIMUM HEAD: 291’
- STAGES: 10
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Thermoplastic
- BODY MATERIAL: 300 Series Stainless Steel
A.Y. McDonald 22000 L Series Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 22000 Series Well Pump Product Resources
Download A.Y. McDonald 22000 L Series Submittal Data Sheet
Download A.Y. McDonald 22000 Series Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
