A.Y. McDonald offers a full line of four inch submersibles ranging from 1/2 through 1-1/2 horsepower (HP), with flow rates ranging from 5 through 25 gallons per minute (GPM). The 22000 Series submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 GPM models.

All J Series Thermoplastic Pumps have a 1-1/4" discharge with internal check valve and sizes range from 1/2 to 1 horsepower (HP). Two or three wire models up to 1 horsepower (HP).

A.Y. McDonald 2200 Series Thermoplastic Pump End Specifications

• Sizes - 1/2, 3/4, 1 and 1-1/2 HP
• Reinforced Thermoplastic Motor Bracket and Discharge with Built-In Guide Bearing
• 300 Series Stainless Steel Motor Coupling
• Stainless Steel Pump Shell
• Thermoplastic Diffusers
• Thermoplastic Impellers
• Stainless Steel Pump Shaft
• Internal, Anti-Spin Check Valve Standard
• Thermoplastic Intake Screen and Cable Guard
• 1-1/4" FNPT Discharge
• Standard is 230V, Single Phase, 60 Hz

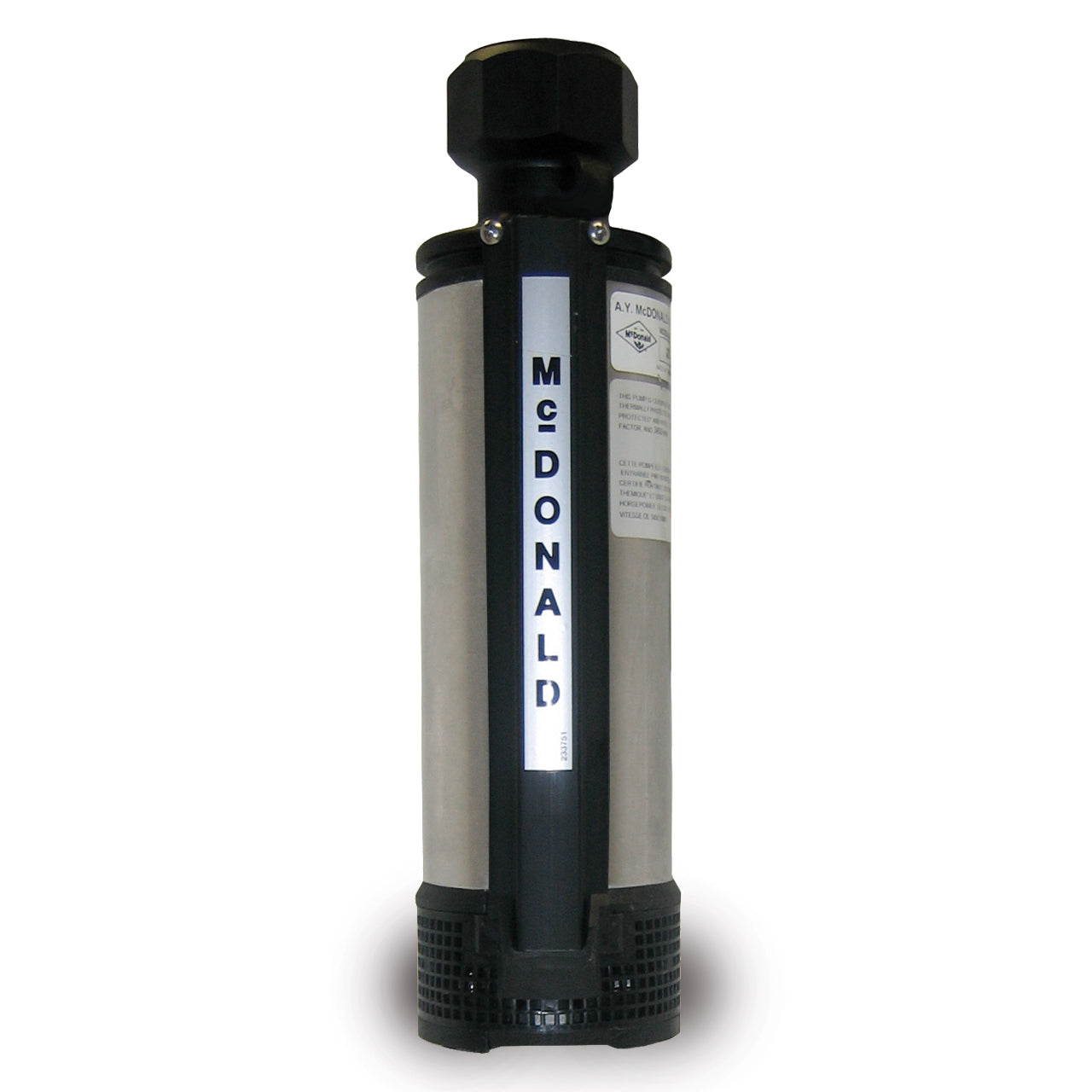

A.Y. McDonald 22100J Thermoplastic Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 5 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 12.5 GPM
• MAXIMUM HEAD: 649’
• STAGES: 23
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 22000 J Series Well Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald 22000 Series Well Pump Product Resources

Download A.Y. McDonald 22000 J Series Submittal Data Sheet

Download A.Y. McDonald 22000 Series Well Pump Brochure

Download A.Y. McDonald Submersible Pump Installation Instructions

Download A.Y. McDonald Pump Basics

Download A.Y. McDonald Pump Troubleshooting
