A.Y. McDonald offers a full line of thermoplastic submersible pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. These submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 gallons per minute (GPM). Other features include thermoplastic discharge head with a built-in check valve, and stainless steel shaft and coupling.

All P Series Thermoplastic Pumps have a 1-1/4" discharge with internal check valve and sizes range from 1/2 to 1-1/2 horsepower (HP). Two or three wire models up to 1-1/2 horsepower (HP).

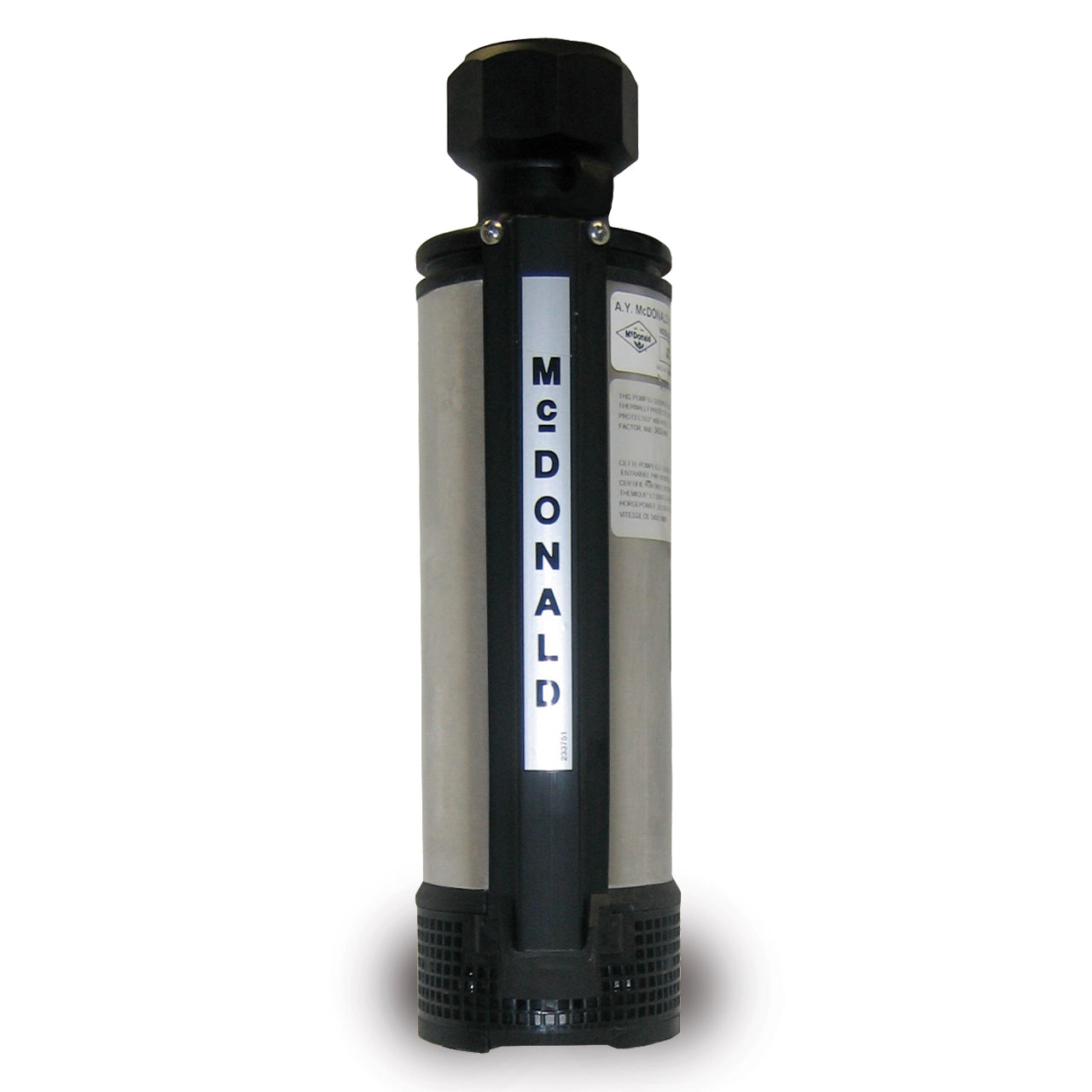

A.Y. McDonald 2200 Series Thermoplastic Pump End Specifications

• Sizes - 1/2, 3/4, 1 and 1-1/2 HP
• Reinforced Thermoplastic Motor Bracket and Discharge with Built-In Guide Bearing
• 300 Series Stainless Steel Motor Coupling
• Stainless Steel Pump Shell
• Thermoplastic Diffusers
• Thermoplastic Impellers
• Stainless Steel Pump Shaft
• Internal, Anti-Spin Check Valve Standard
• Thermoplastic Intake Screen and Cable Guard
• 1-1/4" FNPT Discharge
• Standard is 230V, Single Phase, 60 Hz

A.Y. McDonald 22075P Thermoplastic Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 20 GPM
• HORSEPOWER: 0.75 HP
• MAXIMUM CAPACITY: 33 GPM
• MAXIMUM HEAD: 203’
• STAGES: 7
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Thermoplastic
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 22000 P Series Well Pump Curve
