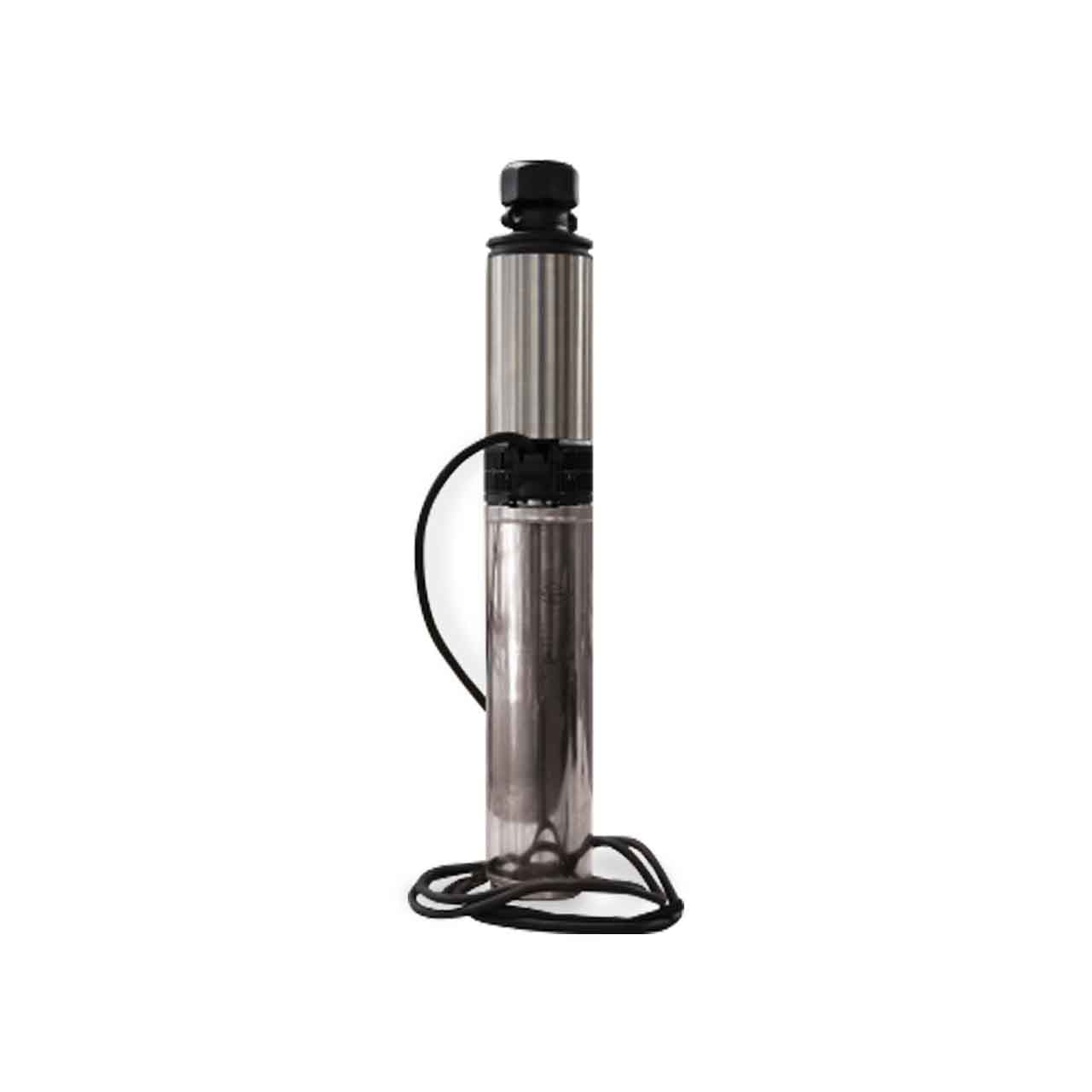

A.Y. McDonald 22050E2J Thermoplastic Effluent Pump 30 GPM 0.5 HP 230V 2-Wire Single-Phase(Bargain Cave)
A.Y. McDonald 22050E2J Thermoplastic Effluent Pump 30 GPM 0.5 HP 230V 2-Wire Single-Phase(Bargain Cave)
SKU : AYME22050E2J_BC
In Stock Quantity:3
:
Brand
:
Regular price
$793.71 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
BARGAIN CAVE
Reinforced Thermoplastic motor bracket and discharge with built-in guide bearing. Sizes range from 1/2 HP to 1-1/2 HP. The 300 series stainless steel top bearing and motor coupling are assemble with A.Y. McDonald stainless steel motors. Two wire single phase models include pump, motor and 10' lead, 25', 50' and 100' available.
All four inch submersibles are supplied with grounded leads meeting the National Electrical Code (N.E.C) specifications.
A.Y. McDonald Thermoplastic Effluent Pump Features
- Stainless Steel Pump Shell and Pump Shaft
- Reinforced Thermoplastic Diffusers and Impellers
- Less Check Valve
- Powered by A.Y. McDonald Submersible Motors 1/2 to 1-1/2 HP
- 1-1/4" FNPT Discharge
Specifications
Specifications
A.Y. McDonald 22050E2J Thermoplastic Effluent Pump Specifications
- Water Well Motors
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 0.5 HP
- CABLE LENGTH: 10'
- VOLTAGE: 1ø, 230V
- RPM: 3450
- LEAD: 2-wire Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 30 GPM
- HORSEPOWER: 0.5 HP
- MAXIMUM CAPACITY: 32 GPM
- MAXIMUM HEAD: 110’
- STAGES: 4
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Thermoplastic
- BODY MATERIAL: Stainless Steel
A.Y. McDonald Thermoplastic Effluent Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald Thermoplastic Effluent Pump Product Resources
Download A.Y. McDonald Thermoplastic Effluent Pumps Data Sheet
Download A.Y. McDonald Submersible Pump Installation Instructions
