A.Y. McDonald offers a full line of four inch submersibles ranging from 1/3 through 5 horsepower, with flow rates ranging from 5 to 25 GPM. Our 2100 submersibles offer peak capacity performance in 5, 7, 10, 15, 20 and 25 GPM models.

All J Series No-Lead Pumps come with a 1-1/4" discharge and sizes range from 1/3 to 1-1/2 horse power (HP). Two or three wire models up to 1-1/2 horse power (HP).

A.Y. McDonald 2100 Series Bronze Pump End Specifications

• Check Valve - Acetal Check Valve Poppet and Seal Housing, Buna-N O-Ring and Stainless Steel Washer Head Retention Screw. Threaded for Easy Installation or Removal. Working Pressure of 400 PSI.
• Discharge Casting - No-Lead Brass Alloy
• Cable Guard - Stainless Steel Cable Guard Protects Motor Leads. Angled Top Helps Keep Leads Stationary when Lowering and Raising Submersible Pump.
• Discharge Bearing - Rubber Surrounding the Stainless Steel Shaft Provides Superior Wear Resistance against the Harshest Conditions while Maintaining Shaft Alignment. Self-Lubricating for Long Life.
• Diffuser - Polycarbonate Durable, Corrosion and Abrasion Resistant. Designed for Efficient Performance and Superior Handling Capability.
• A.Y. McDonald uses it's Time Proven Captured Stack Design. The Captured Stack Design Incorporates Sand Notches into the Diffusers, which is Proven to Keep Sand Flowing thru Stack Over Time.
• Impeller - Glass Bead Acetal. This Smooth and Flexible Material is Precision Engineered for Maximum Performance.
• Polished Stainless Steel Shell - Heavy Duty and Threaded at Both Ends for Easy Field Service.
• Shaft - 7/16" 300 Series Stainless Steel, Hex Design for Positive Impeller Drive. Each Shaft Individually Measured for Straightness with Strict Tolerances.
• Stainless Steel Motor Coupling
• Motor Bracket - No-Lead Brass Alloy
• Once Assembled, Each Pump is Individually Tested to Assure Performance within Design Specifications. Each Pump is Stamped with the Tester's "Signature" Making to Assure Quality Control.
• Non-Corrosive In-Take Screen

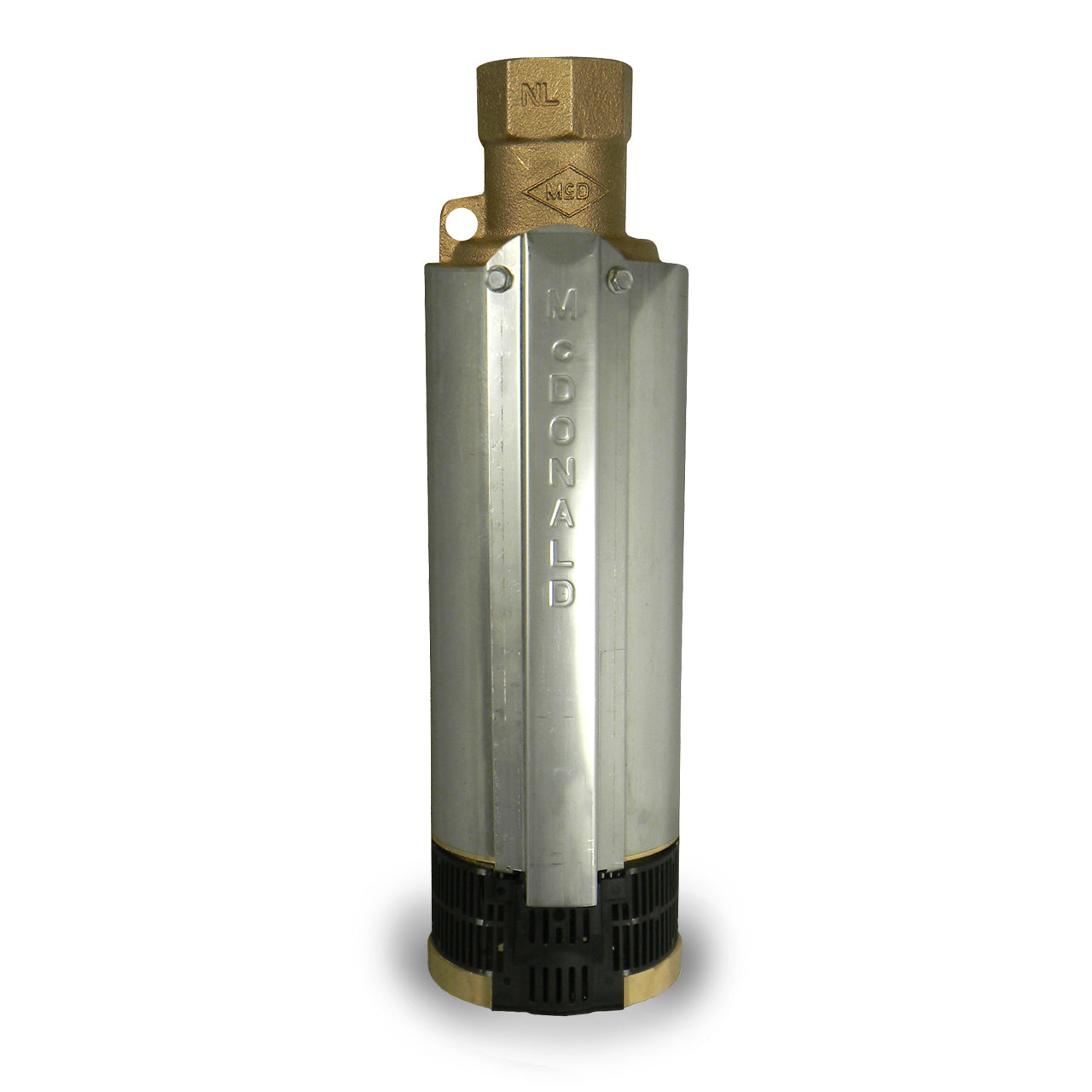

A.Y. McDonald 21100J Bronze Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 5 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 12.5 GPM
• MAXIMUM HEAD: 649’
• STAGES: 23
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 21000 J Series Bronze Well Pump Curve
