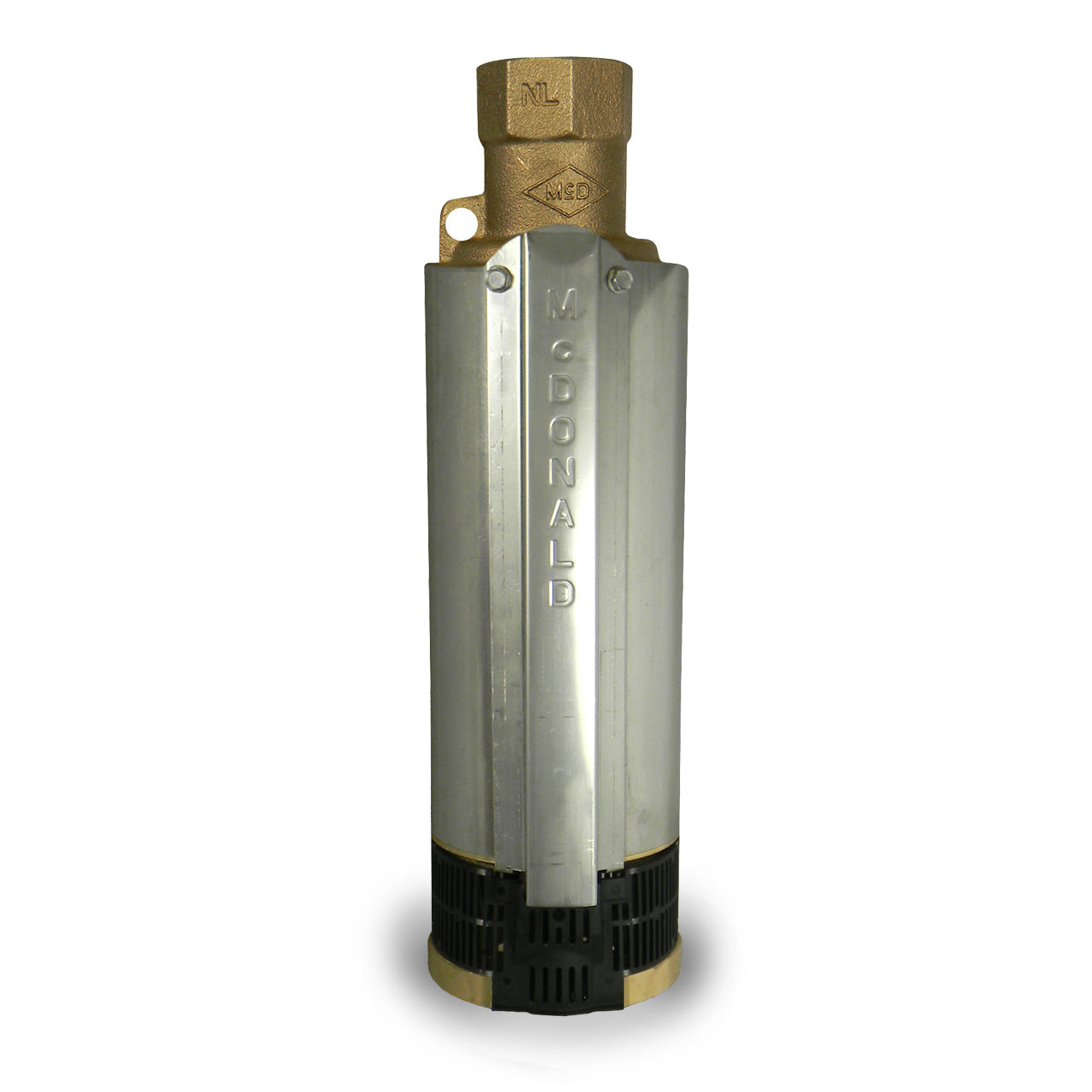

A.Y. McDonald 21075J Bronze Well Pump End Only 5 GPM 0.75 HP
A.Y. McDonald 21075J Bronze Well Pump End Only 5 GPM 0.75 HP
SKU : AYM21075J
In Stock Quantity:0
:
Brand
:
Regular price
$891.10 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of four inch submersibles ranging from 1/3 through 5 horsepower, with flow rates ranging from 5 to 25 GPM. Our 2100 submersibles offer peak capacity performance in 5, 7, 10, 15, 20 and 25 GPM models.
All J Series No-Lead Pumps come with a 1-1/4" discharge and sizes range from 1/3 to 1-1/2 horse power (HP). Two or three wire models up to 1-1/2 horse power (HP).
A.Y. McDonald 2100 Series Bronze Pump End Specifications
- Check Valve - Acetal Check Valve Poppet and Seal Housing, Buna-N O-Ring and Stainless Steel Washer Head Retention Screw. Threaded for Easy Installation or Removal. Working Pressure of 400 PSI.
- Discharge Casting - No-Lead Brass Alloy
- Cable Guard - Stainless Steel Cable Guard Protects Motor Leads. Angled Top Helps Keep Leads Stationary when Lowering and Raising Submersible Pump.
- Discharge Bearing - Rubber Surrounding the Stainless Steel Shaft Provides Superior Wear Resistance against the Harshest Conditions while Maintaining Shaft Alignment. Self-Lubricating for Long Life.
- Diffuser - Polycarbonate Durable, Corrosion and Abrasion Resistant. Designed for Efficient Performance and Superior Handling Capability.
- A.Y. McDonald uses it's Time Proven Captured Stack Design. The Captured Stack Design Incorporates Sand Notches into the Diffusers, which is Proven to Keep Sand Flowing thru Stack Over Time.
- Impeller - Glass Bead Acetal. This Smooth and Flexible Material is Precision Engineered for Maximum Performance.
- Polished Stainless Steel Shell - Heavy Duty and Threaded at Both Ends for Easy Field Service.
- Shaft - 7/16" 300 Series Stainless Steel, Hex Design for Positive Impeller Drive. Each Shaft Individually Measured for Straightness with Strict Tolerances.
- Stainless Steel Motor Coupling
- Motor Bracket - No-Lead Brass Alloy
- Once Assembled, Each Pump is Individually Tested to Assure Performance within Design Specifications. Each Pump is Stamped with the Tester's "Signature" Making to Assure Quality Control.
- Non-Corrosive In-Take Screen
Specifications
Specifications
A.Y. McDonald 21075J Bronze Pump End Specifications
- DISCHARGE SIZE: 1.25" FNPT
- NOMINAL FLOW RATING: 5 GPM
- HORSEPOWER: 0.75 HP
- MAXIMUM CAPACITY: 12.5 GPM
- MAXIMUM HEAD: 512'
- STAGES: 18
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Glass Bead Acetal
- BODY MATERIAL: 300 Series Stainless Steel
A.Y. McDonald 21000 J Series Bronze Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 21000 Series Bronze Well Pump Product Resources
Download A.Y. McDonald 21000 Series Bronze Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
