A.Y. McDonald offers a full line of no-lead brass submersible pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. These submersibles offer peak capacity performance in 5, 7, 10, 15, 20, and 25 gallons per minute (GPM). Other features include no-lead discharge head with a built-in check valve, and stainless steel shaft and coupling.

All L Series No-Lead Pumps come with a 1-1/4” discharge and sizes range from 1/3 to 5 horsepower (HP). Two wire models up to 1-1/2 horse power (HP) or three wire models up to 5 horsepower (HP).

A.Y. McDonald 21000 Series Bronze Submersible Well Pump Features

• Powered by NEMA Approved A.Y. McDonald Stainless Steel Motors with Built-In Lightning Protection
• Discharge Casting - No-Lead Brass Alloy
• Cable Guard - Stainless Steel Cable Guard Protects Motor Leads. Angled Top helps Keep Leads Stationary when Lowering and Raising Submersible Pump.
• Diffuser - Polycarbonate is Durable, Corrosion and Abrasion Resistant. Designed for Efficient Performance and Superior Sand Handling Capability.
• Impeller - Glass Bead Acetal, Smooth and Flexible, Material is Precision Engineered for Maximum Performance.
• Check Valve - Acetal Check Valve Poppet and Seal Housing, Buna-N O-ring, and Stainless Steel Washer Head Retention Screw. Threaded for Easy Installation or Removal. Working Pressure of 400 PSI.
• Discharge Bearing - Rubber Surrounding the Stainless Steel Shaft Provides Superior Wear Resistance against the Harshest Conditions while Maintaining Shaft Alignment. Self lubricating for Long Life.
• Polished Stainless Steel Shell - Heavy Duty and Threaded at Both Ends for Easy Field Service.
• Shaft - 7/16” 300 Series Stainless Steel, Hex Design for Positive Impeller Drive. Each Shaft Individually Measured for Straightness with Strict Tolerances.
• Stainless Steel Motor Coupling
• Motor Bracket - No-Lead Brass Alloy
• Intake Screen - Non-Corrosive
• A.Y. McDonald uses it’s Time Proven Captured Stack Design. The Captured Stack Design Incorporates Sand Notches into the Diffusers, which has Proven, Over Time, to Keep Sand Flowing Thru the Stack.
• Once Assembled, Each Pump is Individually Tested to Assure Performance within Design Specifications.
• Each Pump is Stamped with the Tester’s “Signature” Marking to Assure Quality Control.

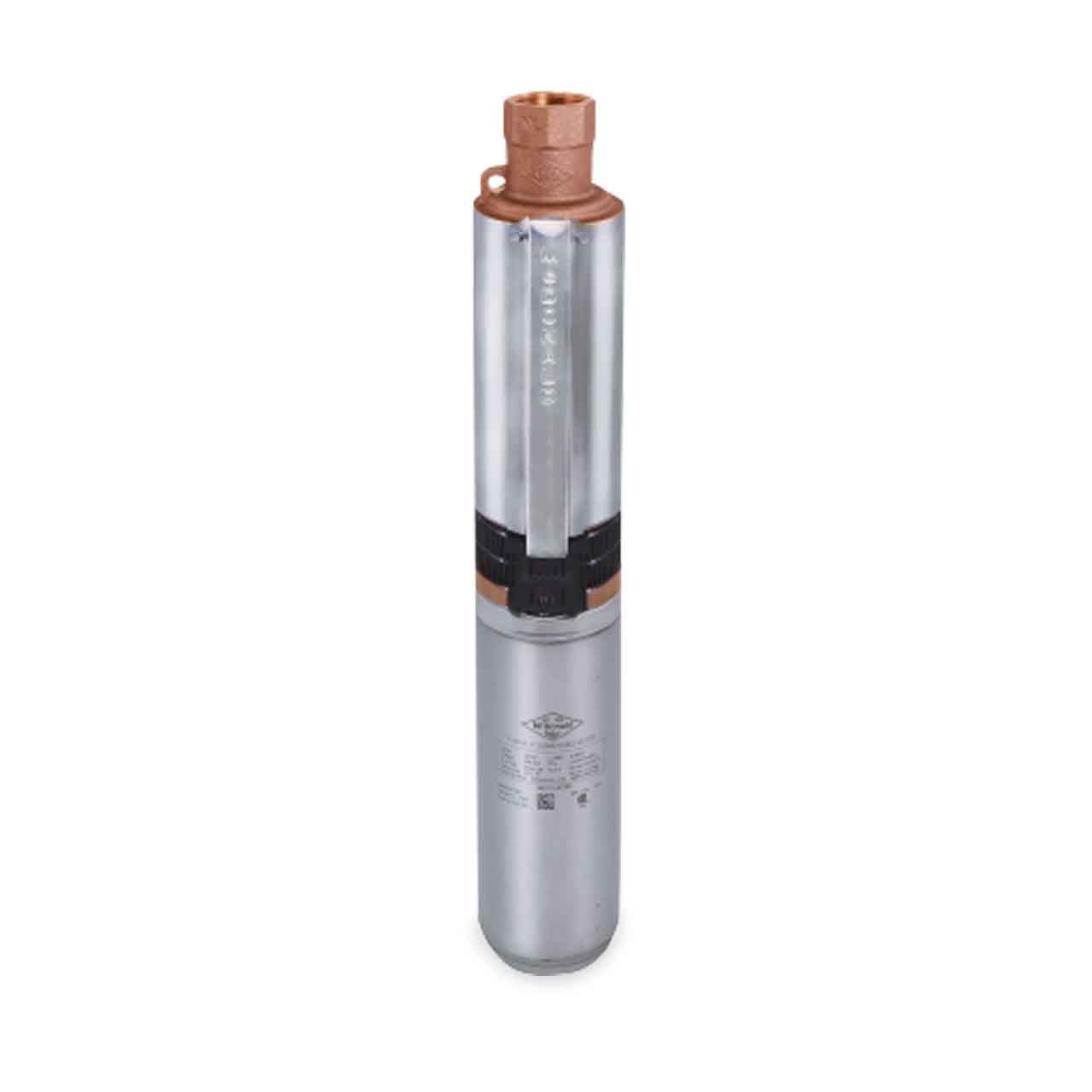

A.Y. McDonald 21050L3LB Bronze Submersible Well Pump Specifications

Water Well Motor

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 0.5 HP
• CABLE LENGTH: 5-1/2 ft.
• VOLTAGE: 1ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.6
• DOWNWARD THRUST (lbs): 500 lbs
• MAX AMBIENT TEMPERATURE: 95°F/35°C
• FULL LOAD AMPS: 5.5
• FLANGE: NEMA 4"
• MAX OPERATING DEPTH: 984 ft
• LEAD: 3-wire
• CONTROL BOX REQUIRED

Water Well Pump End

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 15 GPM
• HORSEPOWER: 0.5 HP
• MAXIMUM CAPACITY: 30 GPM
• MAXIMUM HEAD: 173’
• STAGES: 6
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel

A.Y. McDonald 21000 L Series Bronze Well Pump Curve
