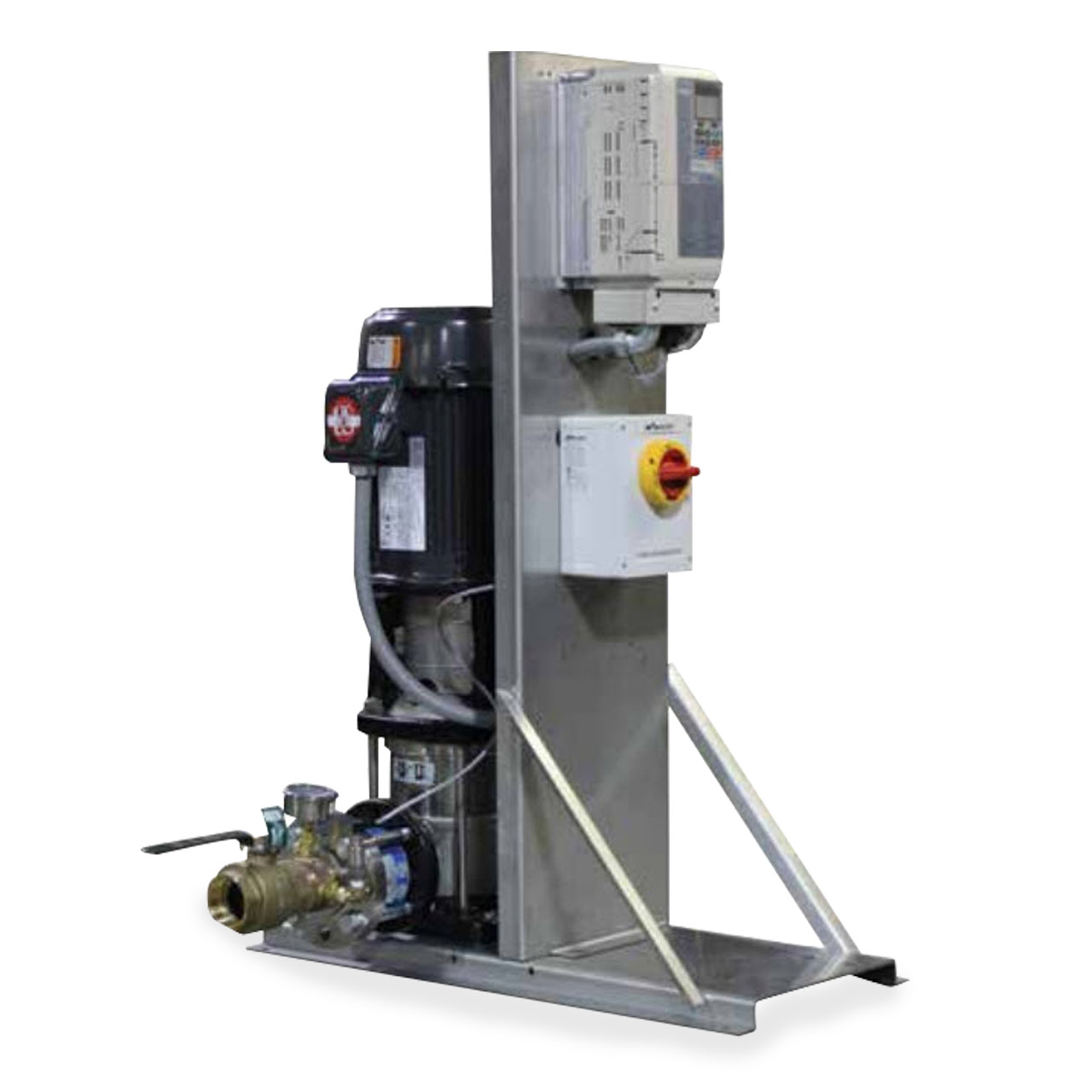

A.Y. McDonald 17104V080Y-1 DuraMAC Variable Speed Simplex Booster 5.0 HP 230V 1PH
A.Y. McDonald 17104V080Y-1 DuraMAC Variable Speed Simplex Booster 5.0 HP 230V 1PH
SKU : AYM17104V080Y1
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
The DuraMACâ„¢ Boosting system is simple, versatile, sophisticated, and reliable. The Vertical Multistage Variable Speed Booster System changes motor speed based on demands of the system, which allows users to save energy costs over traditional constant speed booster systems.
A.Y. McDonald Variable Speed Booster Features
- Easy Set-Up Installation
- Stainless Steel Pump
- Energy Efficient NEMA TEFC Motors
- Liquid Filled Gauges
- Wafer Check Valves with Soft Seat
- Stainless Steel Base
- 2" Brass No-Lead Isolation Valves
- NEMA 1 Enclosure
- Suction and Discharge Transducers
- Fused Disconnect
- 2" Suction and Discharge
- Certified To: NSF/ANSI 61 Section 8-2016 and NSF/ANSI 372-2016
A.Y. McDonald Variable Speed Booster Control Features
- Variable Speed Control, Speeds Up and Slows Down Based on the Demand of System, Maintaining a Constant Pressure.
- Date and Time Stamp for all Faults.
- Better System Efficiency by Applying only the Power Needed Based on the Load.
- Password Protected Parameter Settings.
- Real Time Clock
- No Flow Mode - Puts Pump to Sleep During No Flow Conditions.
- Low Suction Alarm to Prevent the Pump from Running if the Incoming Supply of Water is Interrupted.
- Internal Monitors Prevent the Pump from Running if a Pipe is Broken or Demand Exceeds Capability.
- Live Zero Protects the Pump if the Transducer Cable is Broken or Damaged.
Specifications
Specifications
A.Y. McDonald 17104V080Y-1 Variable Speed Booster Specifications
- DISCHARGE SIZE: 2"
- INLET SIZE: 2"
- MAXIMUM CAPACITY: 80 GPM
- MAXIMUM HEAD: 100 PSI
- IMPELLER MATERIAL: 304 Stainless Steel
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 5.0 HP
- MOTOR TYPE: NEMA TEFC
- VOLTAGE: 1ø, 230V, 60Hz
A.Y. McDonald Variable Speed Booster Pump Curve
