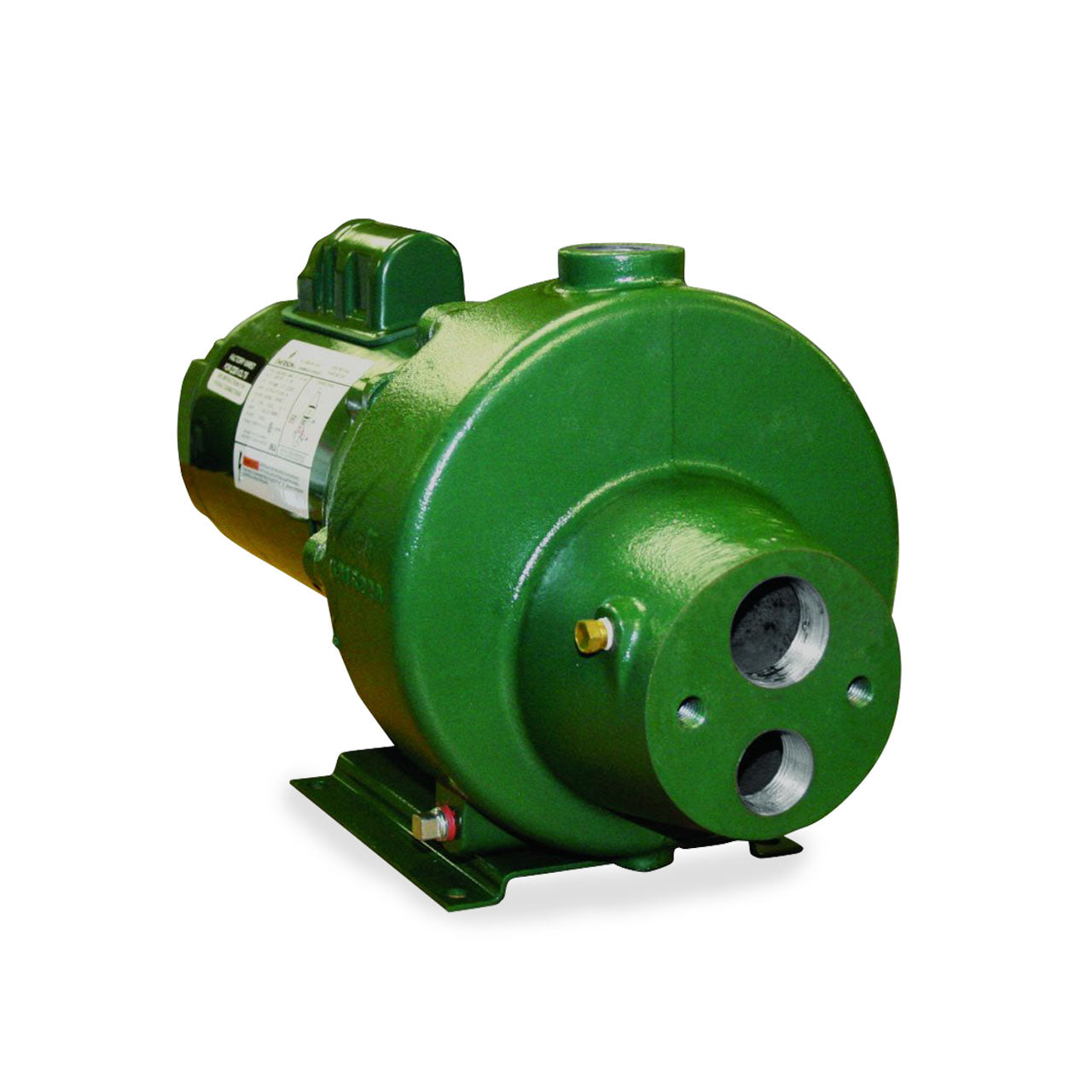

A.Y. McDonald 1575XSWP Multi-Stage Centrifugal Pump 0.75 HP 115/230V
A.Y. McDonald 1575XSWP Multi-Stage Centrifugal Pump 0.75 HP 115/230V
SKU : AYM1575XSWP
In Stock Quantity:0
:
Brand
:
Regular price
$1,502.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald 1500XSW Series Multi-Stage Centrifugal Pumps are two stage construction that provide pressure t0 60 PSI for high pressure applications. Motors are NEMA standard construction, coupled shaft design and available in both single and three-phase. Housing and adapter are cast iron, impeller of your choice - no-lead bronze or plastic.
A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump Applications
- Lawn Sprinkling
- Garden Irrigation
- Pool Filling and Draining
- Cooling Towers
A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump Features
- Trouble-Free (carbon-ceramic) Seal.
- Impeller - Available in Either Dynamically Balanced No-Lead Bronze or Engineered Thermoplastic
- Cast Iron Diffusers - Precision Machined for Greatest Efficiency
- Cast Iron Pump Body and Motor Adapter
- Drain Plug
- NEMA Standard Motor - Heavy Duty, Capacitor Start, Dual Voltage (230/115) with Built-In Overload Protection. Choice of 3/4, 1, 1-1/2 & 2 HP. 50Hz or 60Hz
- Shaft Seal - Standard 3/4" Ceramic Carbon Rotating Mechanical Seal
Specifications
Specifications
A.Y. McDonald 1575XSWP Multi-Stage Centrifugal Pump Specifications
- DISCHARGE SIZE: 1.0" FNPT
- INLET SIZE: 1.25" NPT
- IMPELLER MATERIAL: Engineered Thermoplastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.75 HP
- MOTOR TYPE: Nema Standard Motor
- VOLTAGE: 1ø, 115/230V
- MAXIMUM AMP: 7.6
A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump Performance
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump Product Resources
Download A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump Data Sheet
Download A.Y. McDonald Irrigation & Booster Pump Catalogue
Download A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump Installation Instructions
