A.Y. McDonald 1575 Multi-Stage Horizontal Jet Pump 0.75 HP 230/115V

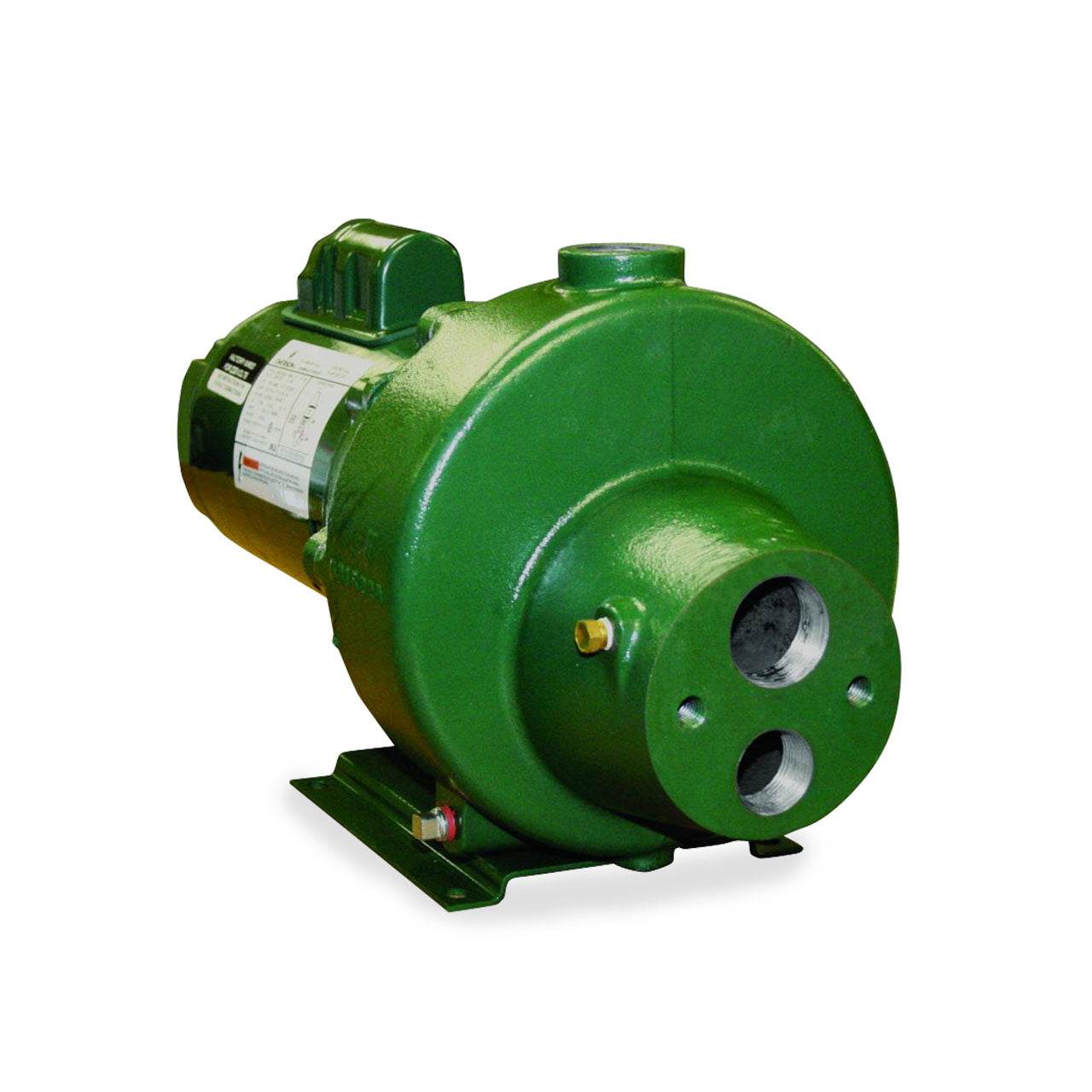

A.Y. McDonald 1575 Multi-Stage Horizontal Jet Pump 0.75 HP 230/115V
SKU : AYM1575
In Stock Quantity:0
:
Brand
:
Regular price
$2,009.15 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of shallow well, convertible, and multi-stage jet pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. The 1500 series shallow well capacity is up to 40 gallons per minute (GPM) and pressures to 100 PSI.
All 1500 Series Multi-Stage Pumps come with a 1-1/4†suction pipe and a 1†discharge. The sizes range from 3/4 to 1-1/2 horsepower (HP).
A.Y. McDonald 1500 Series Multi-Stage Horizontal Jet Pump Applications
- Lake Homes and Cabins
- Shallow Well Pumping
- Irrigation
A.Y. McDonald 1500 Series Multi-Stage Horizontal Jet Pump Features
- Nema C (Keyed Shaft) Motor
- Pressure Switch Factory Setting 30-50 PSI
- Two Pipe Drop Pipe 1"x1-1/4" (with 108 adaptor)
- SW Models are Less Regulating Valve
- 460V Available, Contact Factory
- * Maximum Amp Draw at Factory Voltage Setting
Specifications
Specifications
A.Y. McDonald 1575 Multi-Stage Horizontal Jet Pump Specifications
- DISCHARGE SIZE: 1"
- INLET SIZE: 1-1/4"
- MAXIMUM CAPACITY: 12 GPM
- MAXIMUM HEAD: 96 PSI
- HORSEPOWER: 0.75 HP
- IMPELLER MATERIAL: Brass
- BODY CONSTRUCTION: Cast Iron
- MOTOR TYPE: Nema C Motor
- VOLTAGE: 230/115V
A.Y. McDonald 1500 Series Multi-Stage Horizontal Jet Pump Flow Chart
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 1500 Series Multi-Stage Horizontal Jet Pump Product Resources
Download A.Y. McDonald 1500 Series Multi-Stage Horizontal Jet Pump Submittal Data Sheet
Download A.Y. McDonald Jet Pump Catalogue
Download A.Y. McDonald 1500 Series Multi-Stage Horizontal Jet Pump Installation Instructions
