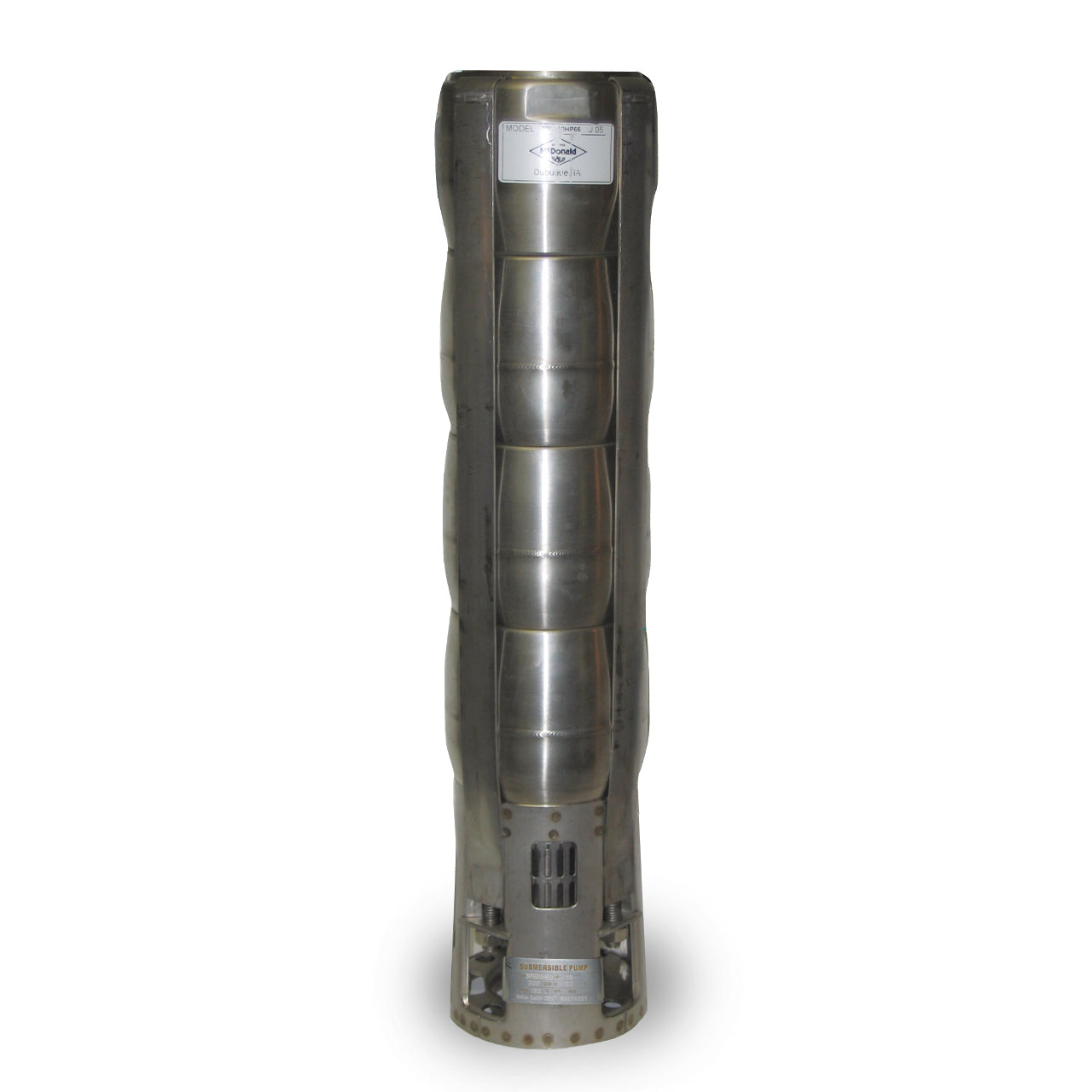

A.Y. McDonald 150S30HP66 Stainless Steel 6" Pump End 150 GPM 30 HP 6" Motor Bracket
A.Y. McDonald 150S30HP66 Stainless Steel 6" Pump End 150 GPM 30 HP 6" Motor Bracket
SKU : AYM150S30HP66
In Stock Quantity:0
:
Brand
:
Regular price
$7,287.51 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of 6", 8" & 10" stainless steel submersible pump ends ranging from 2 horsepower through 250 horsepower. These submersibles offer peak capacity performance in 90, 150, 230, 300, 400, 500, 650, 800 and 1100 GPM.
A.Y. McDonald Stainless Steel Pump Ends offer peak capacity performance in its 150 GPM. Each pump end included cable guard, bolts and washers. The 150 GPM Series Stainless Steel Pump End that ranges in size from 5 to 50 Horsepower.
A.Y. McDonald 150 GPM Well Pump End Features
- Stainless Steel Construction Designed and Built for Years of Trouble Free Operation
- Stainless Steel Discharge Head with Built-In Check Valve
- High-Efficiency Stainless Steel Impellers & Diffusers
- Stainless Steel Suction Screen
- Stainless Steel Shaft & Coupling
- Stainless Steel NEMA Faced Mounting Bracket
Specifications
Specifications
A.Y. McDonald 6" 150 GPM Well Pump End Specifications
- DISCHARGE SIZE: 3.0†FNPT
- NOMINAL FLOW RATING: 150 GPM
- HORSEPOWER: 30 HP
- MAXIMUM CAPACITY: 210 GPM
- MAXIMUM HEAD: 920'
- STAGES: 17
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
A.Y. McDonald 6" 150 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 6" 150 GPM Well Pump Product Resources
Download A.Y. McDonald 6" 150 GPM Submittal Data
Download A.Y. McDonald 6", 8" & 10" SS Well Pump Brochure
Download A.Y. McDonald Submersible Pump Installation Instructions
Download A.Y. McDonald Pump Basics
