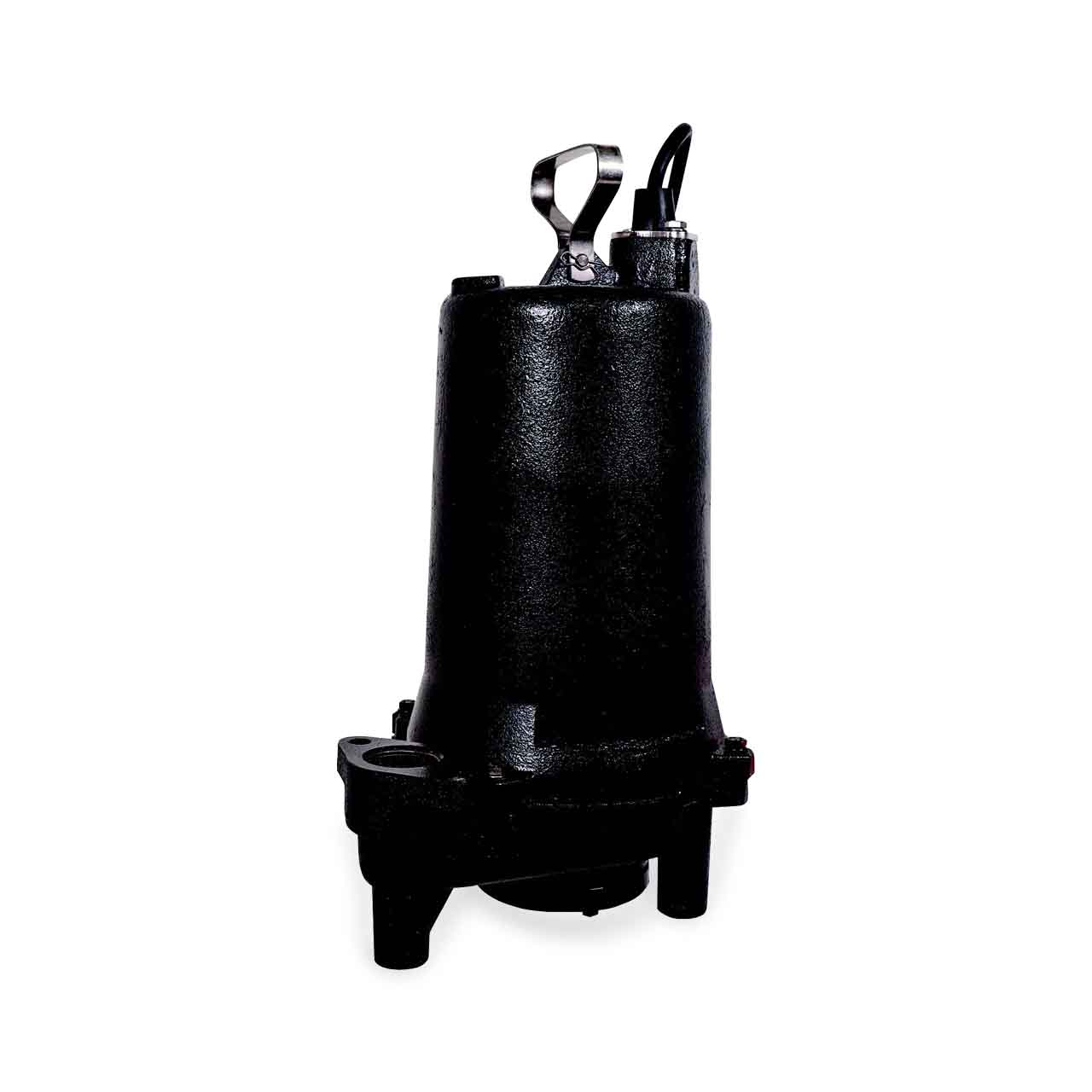

A.Y. McDonald 120912GRP Grinder Pump 2.0 HP 1PH 208-230V 20' Cord Manual
A.Y. McDonald 120912GRP Grinder Pump 2.0 HP 1PH 208-230V 20' Cord Manual
SKU : AYM120912GRP
In Stock Quantity:0
:
Brand
:
Regular price
$2,382.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald's 1 & 2 HP Grinder Pumps have a 1-1/4" vertical discharge (optional 2" adapter available), and can grind up to 3" solids, and be installed on a rail system or with the supplied legs. Suitable for use in residential developments, commercial developments and wastewater applications.
A.Y. McDonald Grinder Pump Features
- MOTOR - Internal Capacitor Runs 115V or 208-230V, Oil Filled Motors with Upper and Lower Ball Bearings and Thermal Overload Protection.
- Constant Bearing Lubrication
- Maximum Motor Cooling
- Runs Cooler and Lasts Longer
- Internal Overload Protection
- Quiet Operation
- Fasteners and Shaft made from Rugged, Corrosion Resistant Stainless Steel
- WARRANTY - 3 Years from Date of Manufacture
- Seal Design - Single, Mechanical, Running in Oil Filled Chamber Allowing Dry Run and Cooling
- Impeller Design - Non- Clog Style, Cast-Iron Vortex Impeller
- Designed to Generate Higher Heads and Reduce Clogging by Foreign Materials
- Provides Non-Overloading Performance
- Cutter Assembly - 440 SST (56-60 Rockwell)
- 24,000 Cuts Per Second and 1.5 Million Cuts a Minute
- Designed to Reduce Over Loading and Clogging
- Power Cord - Sealed Entry Quick Disconnect Power Cords
- Prevents Water from Entering Motor Housing Through a Cut Cord
- Easy to Replace in the Field
- Switch - Piggy-Back Switch Design
- Defective Switches can be Diagnosed over the Phone
- Pump can be Operated Manually or Supplied with other Piggy-Back Switches
- Switch can be Replaced
Specifications
Specifications
A.Y. McDonald 120912GRP Grinder Pump Specifications
- VOLTAGE: 1ø, 208-230V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 15
- MOTOR TYPE: Overload Protection in the Motor, Oil Filled, Class F Permanent Split Capacitor
- RPM: 3450 RPM
- MAXIMUM HEAD: 105'
- MAXIMUM CAPACITY: 44 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/4" Vertical NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3" Spherical Solids
- IMPELLER TYPE: Cast Iron/Vortex
- CORD LENGTH: 20'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
A.Y. McDonald Grinder Pump Curve
