Discontinued - Sewage and Effluent Pumps

A.Y. McDonald Cast Iron Sewage and Trash Pumps are designed for trouble free and economical handling of solid laden liquids and slurries. Pumps are available in three NPT port sizes; 2", 3" and 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system, without a foot valve.

A.Y. McDonald Sewage and Trash pumps will easily handle liquids containing sewage, stone, sticks, mud and other solids. Minimum liquid requirement must be above 85%. Failure to do so may damage pump and void warranty. These 5 HP trash pumps are reliable, cost effective, and low maintenance. For use with non-flammable liquids which are compatible with pump component materials.

A.Y. McDonald Cast Iron Sewage and Trash Pump Applications

The solids handling capabilities of these electric trash pumps make them ideally suited for a variety of industrial applications including sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, wastewater, white water, and other applications.

A.Y. McDonald Cast Iron Sewage and Trash Pump Features

• Cast Iron Construction
• Silicon Carbide / Viton Mechanical Seal
• 2", 3", and 4" NPT Port Sizes
• Self-Priming up to 20'
• Maximum Temperature 180° F
• Maximum Working Pressure 150 PSI
• Stainless Steel Semi-Open, Clog Resistant Impeller
• Built in Buna-N Check Valve
• Removable Cast Iron Volute / Wear plate
• Easy Cleanout Design
• Pull-From-Rear Design
• Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors
• Single and Three Phase, 3450 RPM Motors

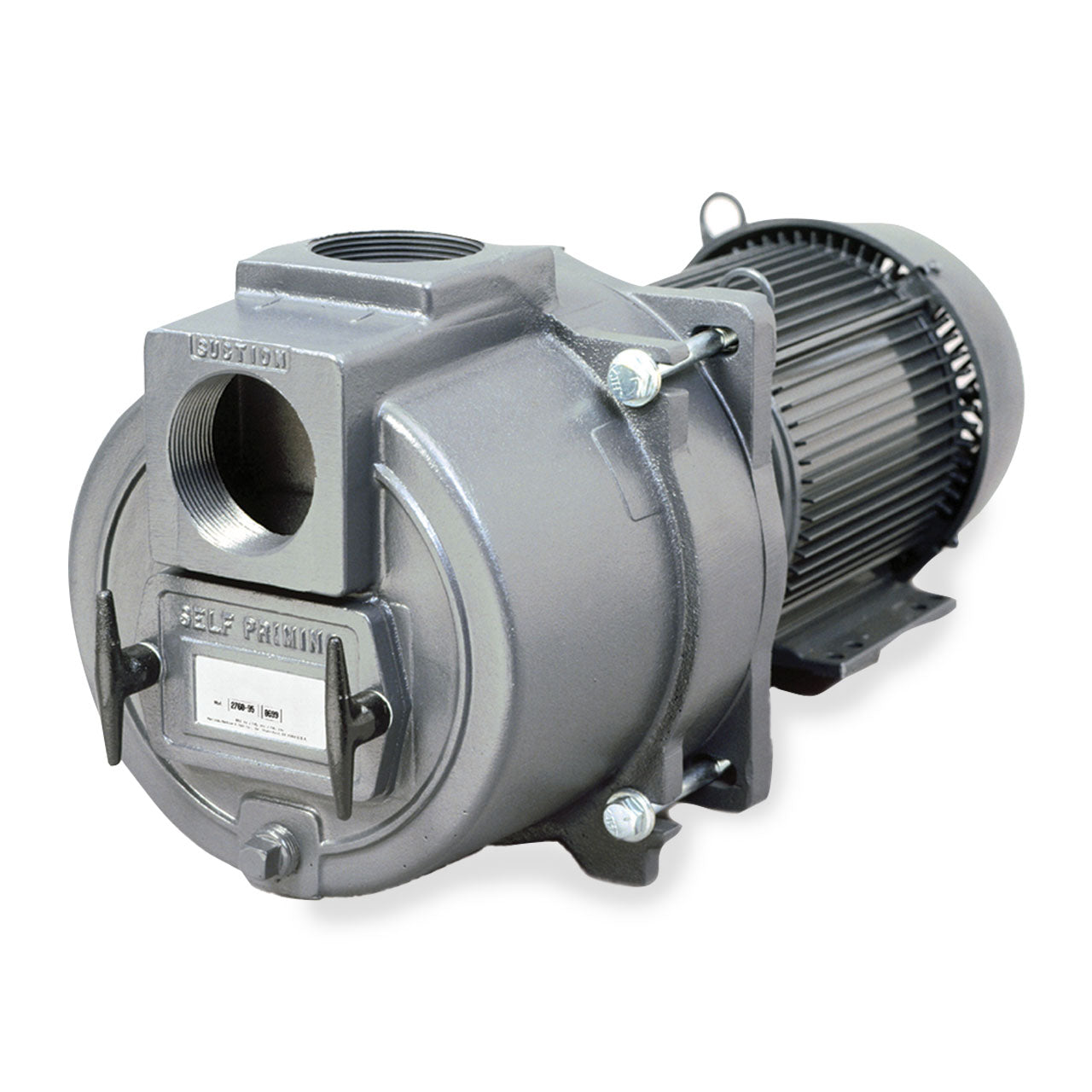

A.Y. McDonald 02S5V Cast Iron Sewage/Trash Pump Specifications

• VOLTAGE: 1ø, 230V, 60 Hz
• HORSEPOWER: 5.0 HP
• AMP DRAW (full load): 20
• MOTOR TYPE: TEFC (Totally Enclosed Fan Cooled)
• RPM: 3450 RPM
• MAXIMUM HEAD: 118'
• MAXIMUM CAPACITY: 180 GPM
• DISCHARGE PIPE SIZE: 2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1"
• IMPELLER TYPE: Stainless Steel, Semi-Open Clog Resistant
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM TEMPERATURE: 180°F (82C)
• MAXIMUM WORKING PRESSURE: 150 PSI

A.Y. McDonald Cast Iron Sewage/Trash Pump Curve
