Discontinued

A.Y. McDonald Cast Iron Sewage/Trash Pumps are designed for trouble free and economical handling of solid laden liquids and slurries. Pumps are available in three NPT port sizes; 2", 3" and 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicone carbide mechanical seals for abrasion resistance and Buna-N o-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system, without a foot valve.

A.Y. McDonald Sewage/Trash pumps will easily handle liquids containing sewage, stone, sticks, mud and other solids. Minimum liquid requirement must be above 85%. Failure to do so may damage pump and void warranty. These pumps are reliable, cost effective, and low maintenance. For use with non-flammable liquids which are compatible with pump component materials.

A.Y. McDonald Cast Iron Sewage/Trash Pump Applications

The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water, and other applications.

A.Y. McDonald Cast Iron Sewage/Trash Pump Features

• Cast Iron Construction
• Silicone Carbide / Viton Mechanical Seal
• 2", 3", and 4" NPT Port Sizes
• Self-Priming up to 20'
• Maximum Temperature 180° F
• Maximum Working Pressure 150 PSI
• Stainless Steel Semi-Open, Clog Resistant Impeller
• Built in Buna-N Check Valve
• Removable Cast Iron Volute / Wearplate
• Easy Cleanout Design
• Pull-From-Rear Design
• Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors
• Single and Three Phase, 3450 RPM Motors

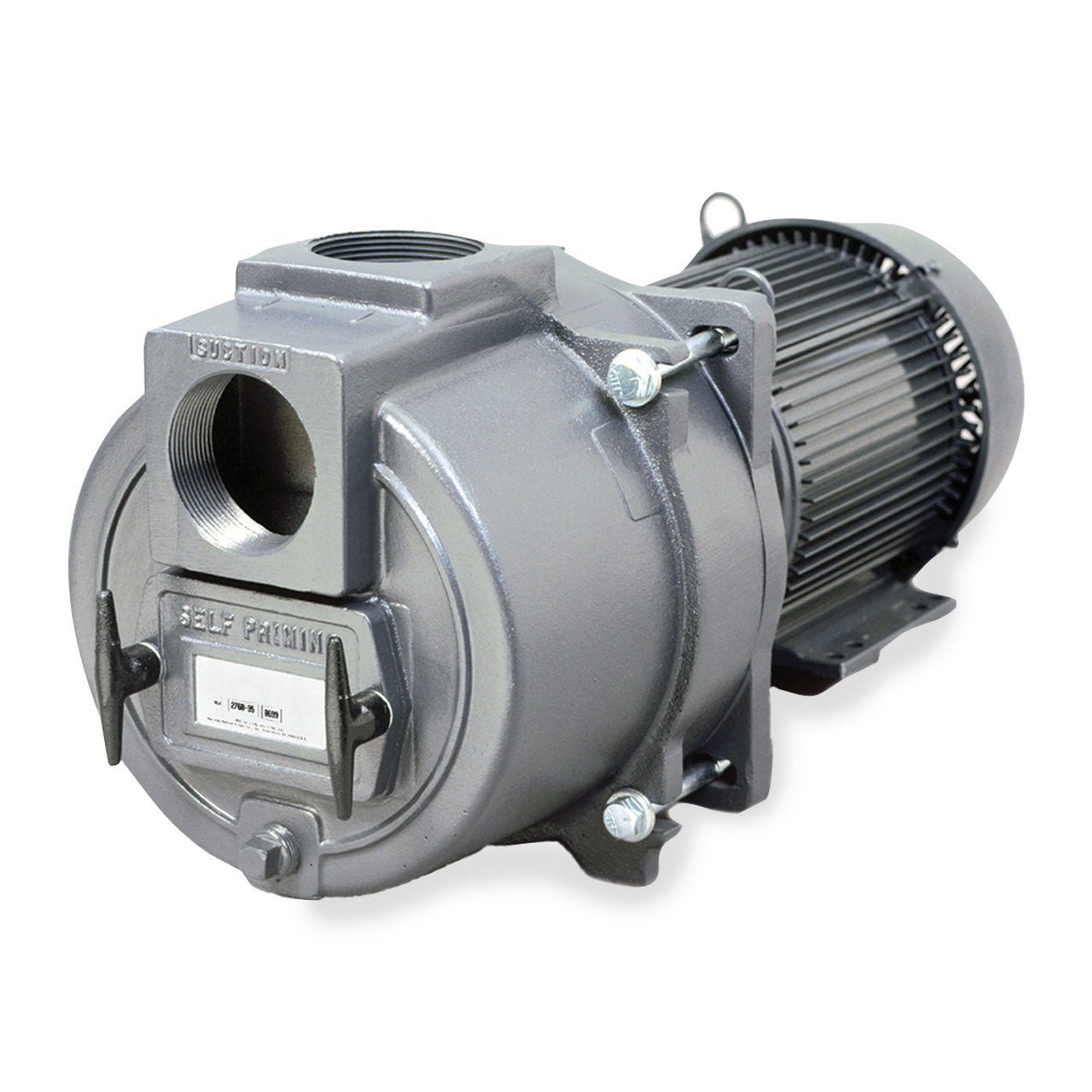

A.Y. McDonald 02S3V Cast Iron Sewage/Trash Pump Specifications

• VOLTAGE: 1ø, 230V, 60 Hz
• HORSEPOWER: 3.0 HP
• AMP DRAW (full load): 16
• MOTOR TYPE: TEFC (Totally Enclosed Fan Cooled)
• RPM: 3450 RPM
• MAXIMUM HEAD: 64'
• MAXIMUM CAPACITY: 150 GPM
• DISCHARGE PIPE SIZE: 2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1"
• IMPELLER TYPE: Stainless Steel, Semi-Open Clog Resistant
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM TEMPERATURE: 180°F (82C)
• MAXIMUM WORKING PRESSURE: 150 PSI

A.Y. McDonald Cast Iron Sewage/Trash Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A.Y. McDonald Cast Iron Sewage/Trash Pump Product Resources

Download A.Y. McDonald Cast Iron Sewage/Trash Pump Data Sheet

Download A.Y. McDonald Dewatering Pumps Catalogue
