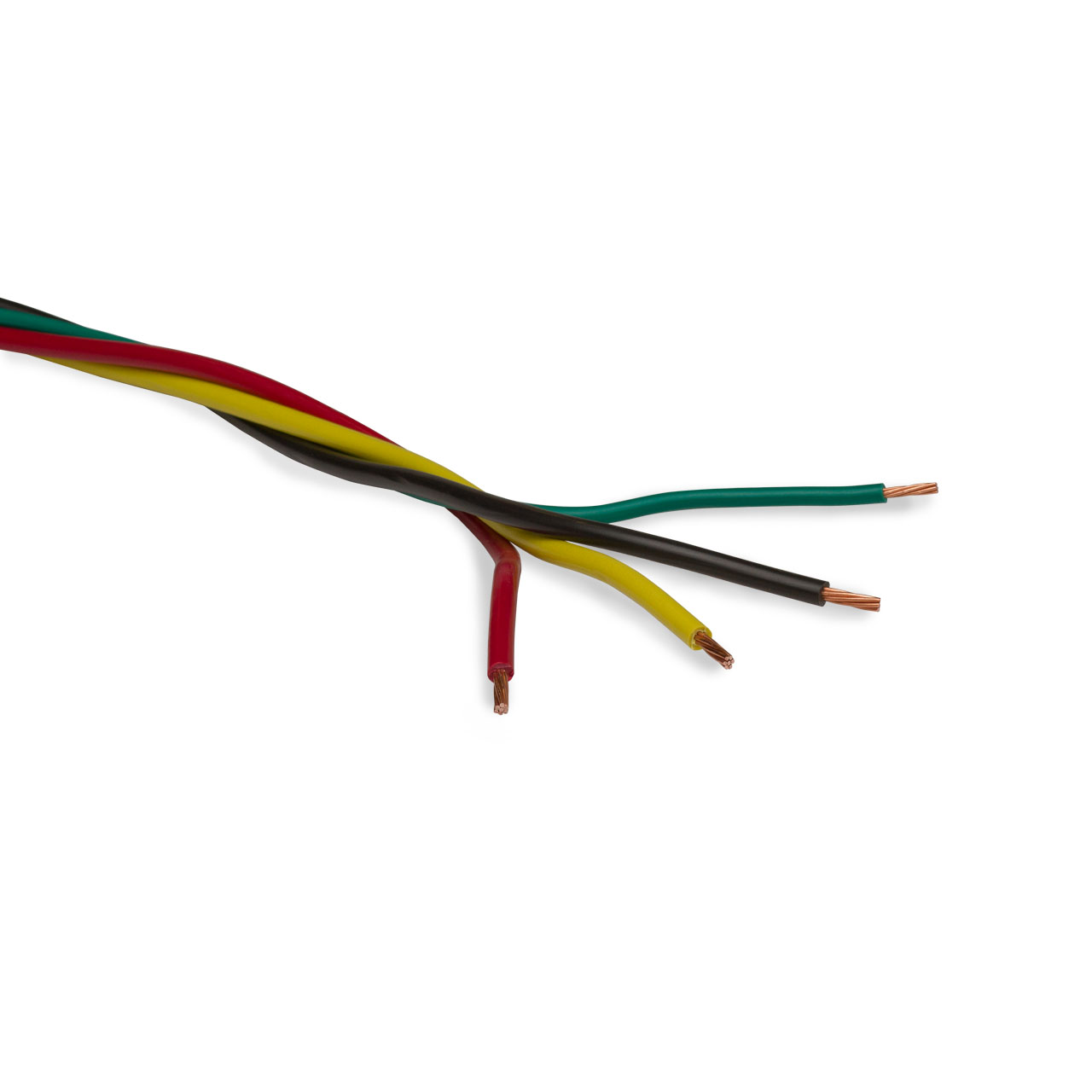

General purpose UL listed Type THW Twisted, unjacketed, submersible pump cable features solid or stranded copper conductors individually insulated with a tough Type THW polyvinyl chloride (PVC) compound. Wire is sold by the foot and can be cut to any length needed.

***IMPORTANT NOTE***

R.C. Worst & Co. offers 12/3 submersible pump wire to our customers by the foot. Please feel free to order only the length wire you need for your specific job. When ordering wire, we recommend adding just a few feet more than calculated. It's always better to have a little left over, then to come up short. Most of our 12/3 submersible pump wire is delivered to our facility on wooden spools, but will be shipped to our customers in wound coils with no wooden spool included.

WIRE CUT TO ORDER CANNOT BE RETURNED

Sub Cable Technical Details:

• 12/3 (solid) with 12 (solid) ground
• Service Wire Part #: PT12/3GG
• 0.42 outside diameter
• Ampacity NEC: 20 amps
• Raw Wire Weight: 125 lbs. per 1000 foot
• UL listed as Type THW-Twisted Submersible Pump cable
• Rated 75 degrees C, 600 volts
• Oil and grease resistant conductors
• For use within the well casing to supply power to the submersible pump unit
• Solid or stranded soft annealed copper
• Thermoplastic polyvinyl chloride (PVC) Insulation
• Black, red, yellow and green color coding
• UL 83; UL 1581; RoHS Compliant

Franklin Wire Sizing Chart:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Sub Cable Product Resources:

Sub Cable Specification Data Sheet
