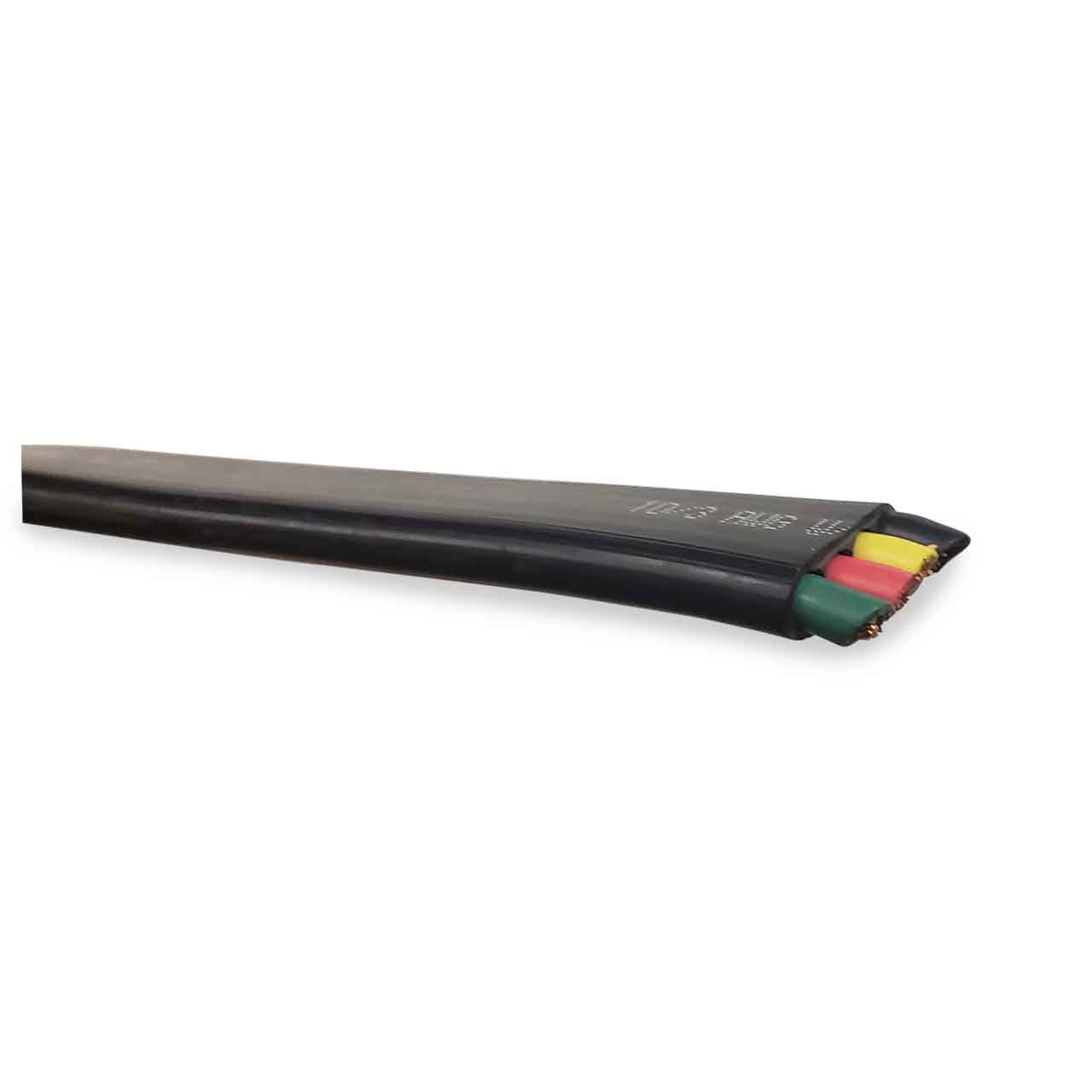

#12 AWG 4 Wire Type THW-Deep Well Submersible Pump Cable 75 degrees C/600V
#12 AWG 4 Wire Type THW-Deep Well Submersible Pump Cable 75 degrees C/600V
SKU : WIRSHDJ123WG
In Stock Quantity:6086
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
General purpose UL listed Type THW Twisted, unjacketed, submersible pump cable features solid or stranded copper conductors individually insulated with a tough Type THW polyvinyl chloride (PVC) compound. Wire is sold by the foot and can be cut to any length needed.
***IMPORTANT NOTE***
Please contact one of our sales representatives before attempting to place an order for this wire.
R.C. Worst & Co. offers 12/3 submersible pump wire to our customers by the foot. Please feel free to order only the length wire you need for your specific job. When ordering wire, we recommend adding just a few feet more than calculated. It's always better to have a little left over, then to come up short. Most of our 12/3 submersible pump wire is delivered to our facility on wooden spools, but will be shipped to our customers in wound coils with no wooden spool included.
WIRE CUT TO ORDER CANNOT BE RETURNED
Sub Cable Technical Details:
- 12/3 (stranded) with 12 (stranded) ground
- 0.45 outside diameter
- Raw Wire Weight: 187 lbs. per 1000 foot
- Conductor Material: Bare Copper Gauge: 2-14
- UL listed as Type THW-Deep Well Submersible Pump cable
- Rated 75 Degrees C, 600 Volts
- Resistant to Acid, Abrasion, Alkalis, Flame, Gas and Oil
- Water and Sunlight Resistant
- Cable is Sequentially Marked
- Thermoplastic Polyvinyl Chloride (PVC) Insulation
- Black, Red, Yellow and Green Color Coding
- For Wiring Within the Casing of Deep Well Submersible Water Pumps
Specifications
Specifications
Franklin Wire Sizing Chart:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
HD Jacketed Submersible Pump Cable Product Resources:
