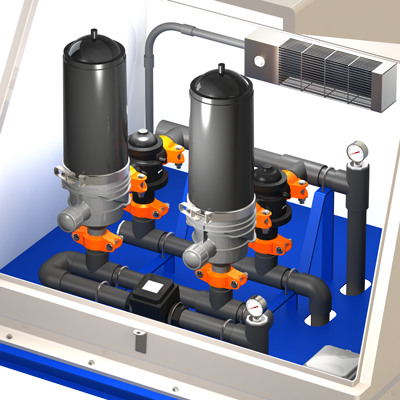

Wastewater drip system headworks provides filtering for large on-site drip systems. The heated enclosure design provides a high level of protection from the environment even in the coldest climates. Maintenance is made simple with this product as access is no issue, and parts are easy to service.

Applications

• on-site wastewater disposal of treated or septic tank effluent
• provides a very effective solution for irrigation and water reuse in green space areas
• can be used to dose various types of on-site systems including mounds and medial filters

Features

• patented orifice controlled continuous flush design insures precise and consistent field flow and pressure regulation, limits tampering, and eliminates valve drift and erosion during operation
• headworks provides better protection from freezing and simplifies installation
• completely assembled and ready for installation
• solenoid valves are eliminated to reduce complexity and further prevent freezing in cold climates
• backwashes with filtered water to ensure consistent cleaning
• insulated heated fiberglass enclosure
• non-contacting magnetic flow meter standard
• duplex GeoFlow Bio Disc filters with Geo shield anti-bacterial compound
• easy access for filter servicing and maintenance
• optional remote flow meter readout

Includes

• powder coated steel skid
• 2" Schedule 80 PVC manifolds
• liquid filled supply and return pressure gauges for quick setup and pressure verification during startup and service events
• integrated flow meter
• patented fixed orifice flow and pressure control software sized for precise control of field flushing and pressure parameters
• serviceable system filter
• completely assembled piping network
• hydraulic modeling consultation with output included for engineering/system sizing
